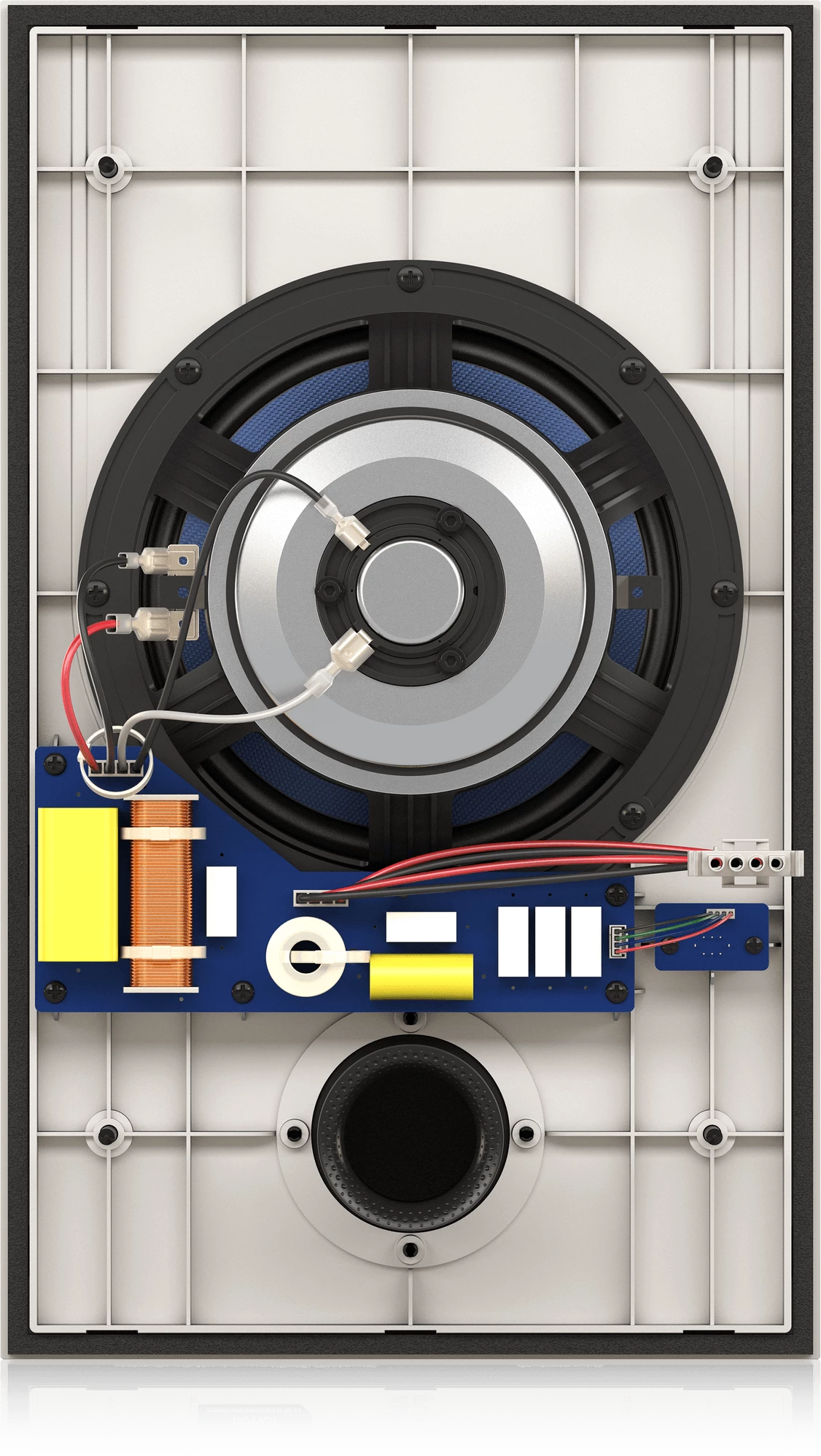

At the heart of the PCI 7DC IW’s incredible performance you will find an all-new development of our legendary and exclusive Dual concentric driver technology. Designed and engineered it the UK, this listener focussed new driver handles up to 240 Watts and is extremely easy to drive. The compact, stylish and state of the art design comprises a single 177.8mm (7.00″) LF/MF driver with a blue Kevlar cone and high-excursion rubber surround and centrally located HF driver. This new Dual Concentric driver offers enhanced dispersion – creating and even more balanced spread of sound around the listening area.These time-coherent, point source dispersion characteristics make this latest version of the Dual Concentric philosophy perfect for premium audio listening. Low frequency performance is full and impactful, the mid-range is detailed, and high frequencies deliver amazing clarity. As not all rooms are equal or have good acoustics, we have equipped the PCI range with a 3-way variable high-frequency level control for user customised performance preferences and optimum room integration. The flagship of the in-wall range the PCI 7 DC IW is the most accomplished, it features the largest driver coupled with a reflex loaded cabinet to produce stunning dynamics, higher SPL and extended low frequency performance. The PCI 7 DC IW is ideal for small, medium and large sized rooms.
Features
- Premium, high-definition loudspeaker for in-wall installation applications
- 7″ Dual Concentric driver featuring Tannoy point-source constant directivity
- Tulip Waveguide for a smooth, uniform frequency response over a wide area of coverage unachievable with discrete, two-way designs
- Blue Kevlar* cone with high-excursion, rubber surround for high power handling
- 3-way variable high-frequency level switch for customised performance preferences
- 80 Watts continuous, 320 Watts peak power
- Extremely thin bezel for discreet installation
- Rigid diecast chassis for improved bass performance and durable application
- Integrated single unit construction for easy installation

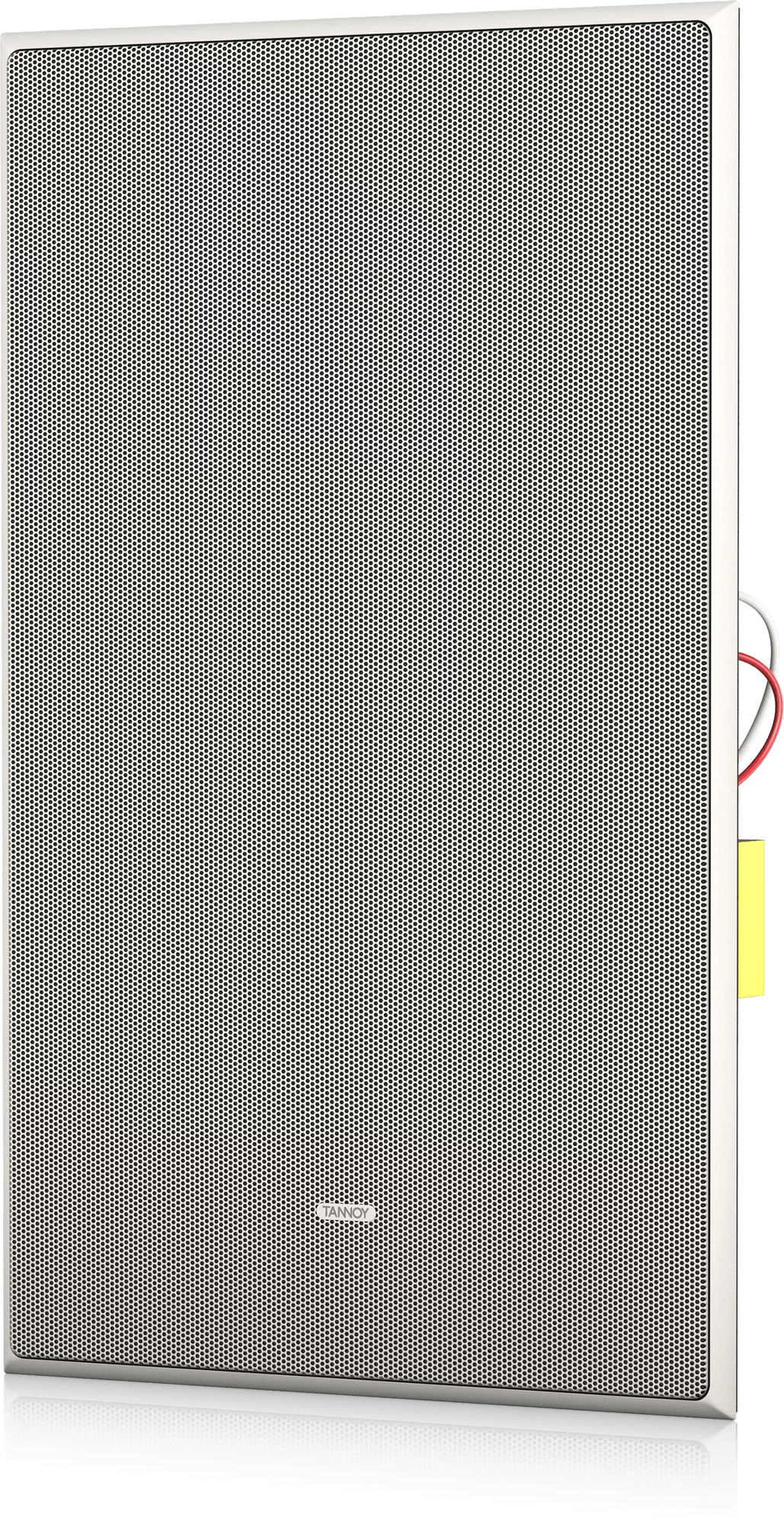

- Semi matt white finish fits unobtrusively in any environment
- Powder coated UV resistant perforated steel mesh grille with dust protection
- Removable grilles for custom painting
- Self-aligning clamp mounting system
- Removable Tannoy grille badge
- Tannoy – Over 90 years of British sound heritage and innovation
Specifications
Performance
| Frequencyresponse ( ± 3dB) | 50 H z – 20 k H z |
| Frequencyresponse(-10dB) | 30 H z – 20 k H z |
| Sensitivity(1 W @ 1m) | 86dB |
| Directivityfactor (Q) | 4.4averaged 1 k H z to10 k H z |
| Directivityindex(D I) | 6.4averaged 1 k H z to10 k H z |
Power hand ling (IEC)
| Average | 80 W |
| Programme | 160 W |
| Peak | 320 W |
| Recommendedamp lifierpower | 240 W @ 8 Ω |
| Nominal Impedance(LoZ) | 8 Ω |
| Rated maximum SPL(1 m,LoZ) | 108dB |
| Average | 105dB |
| Peak | 111dB |
| Crossoverpoint | 1.6 k H z |
Coverage angles
| 500 Hz | 180° horizonta l ,152° vertical |
| 1 kHz | 132° horizonta l ,136° vertical |
| 2 kHz | 118° horizontal ,130° vertical |
Transducers
| Low frequency diameter/material/type | 201 mm ( 7″) |
| High frequency diameter/material/type | 25.4 mm (1″) |
Physica l
| Backcan | Wood, with spraypainting |
| Baffle | Reflex loaded UL94 V-0rated ABS |
| Grille | Steel , with weather resistant coating |
| Safety features | N/A |
| Clamping design | N/A |
| Connectors | Replacement Plug Housing |
| Dimensions ( HxWxD) | 1202 x347 x128 mm (4 7.3 x13.7 x5.0″) |
| Bezel dimensions | 410 x248 mm(16.1 x9.8″) |
| Mounting depth | 101 mm (4.0″) |
| Hole cutout dimensions | 395×231 mm (15.6×9.1″) |
| Net weight | 13.5kg(29.8 lbs) |
| Packed quantity | 1 |
| Included accessories | Grille,paint mask, tool kit, screws (x4), spring washers (x4), p lain washer (x4) |
| Optional accessories | BACK CAN PCI 7DC I W |
