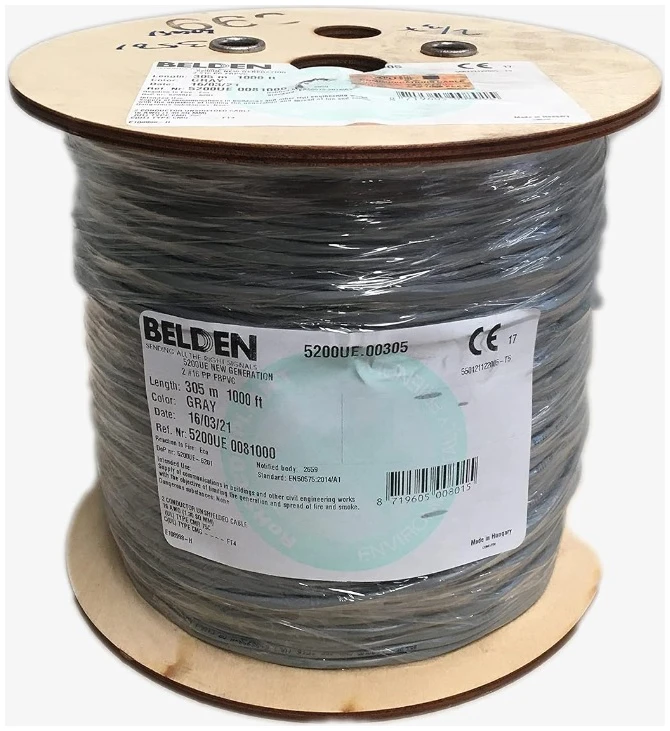

Belden 5200UE 2CORE, 16AWG STRANDED, BC, PP/PVC, UNSHIELDED, SECURITY AND COMMERCIAL AUDIO CABLE

Belden 5200UE 2CORE, 16AWG STRANDED, BC, PP/PVC, UNSHIELDED, SECURITY AND COMMERCIAL AUDIO CABLE

Name: Belden 5200UE 2CORE, 16AWG STRANDED, BC, PP/PVC, UNSHIELDED, SECURITY AND COMMERCIAL AUDIO CABLE
SKU: 5200UE
Price: 1215.38 AED
Availability: InStock

Brand :

Sku: 5200UE

AED 1,215.38 Exc VAT

Available in stock

Features

Belden 5200UE 2CORE, 16AWG STRANDED, BC, PP/PVC, UNSHIELDED, SECURITY AND COMMERCIAL AUDIO CABLE. Riser-CMR, stranded bare copper conductors with polypropylene insulation, PVC jacket with ripcord

EAN: 612825157410

Compare Wishlist

Category: Speaker Cables Brand: Belden

Description
Reviews (0)

Description

Belden 5200UE 2CORE, 16AWG STRANDED, BC, PP/PVC, UNSHIELDED, SECURITY AND COMMERCIAL AUDIO CABLE. Riser-CMR, stranded bare copper conductors with polypropylene insulation, PVC jacket with ripcord

Features

2CORE
16AWG Stranded
Copper conductors with polypropylene insulation
PVC jacket with ripcord
Riser-CMR

Specifications

Suitable Applications	Data Circuits, Monitor/Detection, Control Circuits, Initiating Circuits, Notification Circuits

Element	No. of Elements	Size	Stranding	Material
Conductor(s)	2	16 AWG	19×29	BC – Bare Copper

Element	Material	Nom. Thickness	Nom. Insulation Diameter	Color Code
Conductor(s)	PO – Polyolefin	0.008 in (0.20 mm)	0.073 in (1.9 mm)	Black, Red

Material	Nom. Thickness	Nom. Diameter	Ripcord
PVC – Polyvinyl Chloride	0.017 in (0.43 mm)	0.180 in (4.57 mm)	Yes

Overall Cable Diameter (Nominal)	0.180 in (4.57 mm)

Element	Nom. Conductor DCR	Nom. Capacitance Cond-to-Cond	Max. Current
Conductor(s)	4.2 Ohm/1000ft	23 pF/ft (75 pF/m)	6.25 Amps per conductor @ 25°C

UL Voltage Rating
300 V (CMR)

UL Temperature	Operating
75°C	-20°C to +75°C

Stationary Min.	Installation Min.
1.8 in (46 mm)	1.8 in (46 mm)

Max. Pull Tension	59 lbs (27 kg)
Bulk Cable Weight	24 lbs/1000ft

Environmental Suitability	Indoor – Riser, Indoor
Flammability / Reaction to Fire	UL 1666 Riser, FT4, IEC 60332-1-2
CPR Compliance	CPR Euroclass: Eca; CPR UKCA Class: Eca
NEC / UL Compliance	Article 800, CMR
CEC / C(UL) Compliance	CMG
European Directive Compliance	EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance	UKCA Mark
APAC Compliance	China RoHS II (GB/T 26572-2011)
Plenum Number	6200UE
