Description

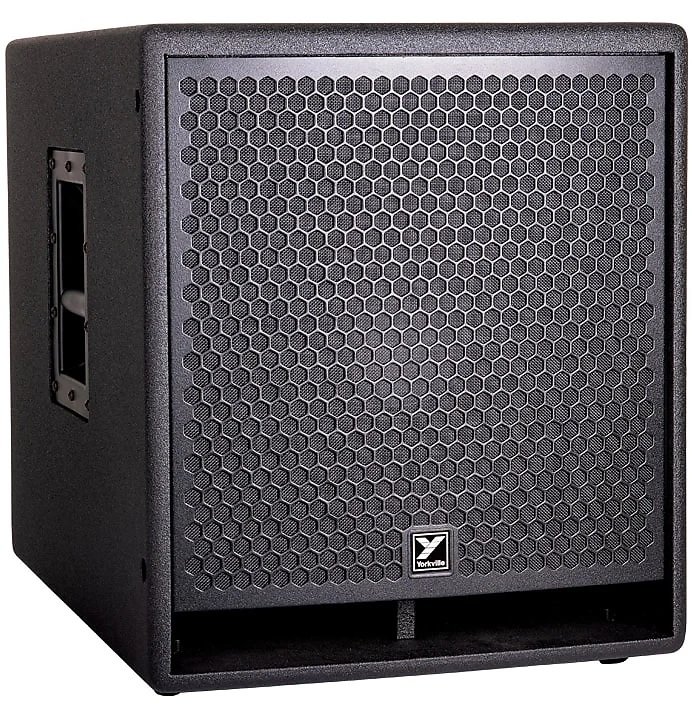

The PS15S 15″ Parasource Powered Subwoofer from Yorkville Sound is a compact single 15″ active bass reflex subwoofer. The solid 15mm birch plywood cabinet construction and an efficient 1000W Class-D power amplifier design subwoofer can be easily integrated into small or medium format PA application because of its cable direct connection to any audio source. The unit is equipped with metal handles and a pole mount adapter.



FEATURES

  • Compact high performance active subwoofer
  • Single 15″ long throw woofer with a 3″ voice coil
  • Maximum SPL 132dB peak (126dB continuous)
  • Handles line or speaker level (powered) input sources
  • XLR and 1/4″ inputs and link outputs
  • Solid 15mm birch cabinet construction
  • Integrated pole mount adapter and all metal handles
  • Compact bass reflex design
  • Made in Canada

SPECIFICATIONS

Active or Passive
Active
Power
1000 W program (2000 W peak)
Frequency Response
45 Hz – 100 Hz
Crossover Frequency
Fixed @ 100 Hz
Driver
15″ (38 cm) (Bass reflex cabinet)
Low Frequency Driver
15″ (38 cm) Long throw ceramic with 3″ (7.6 cm) Voice coil

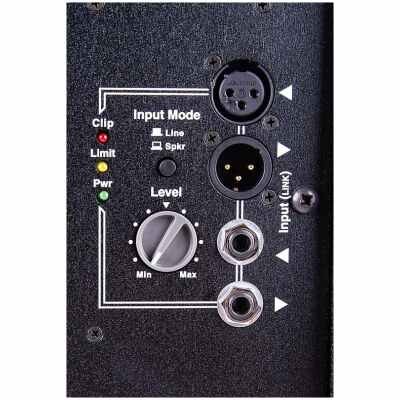

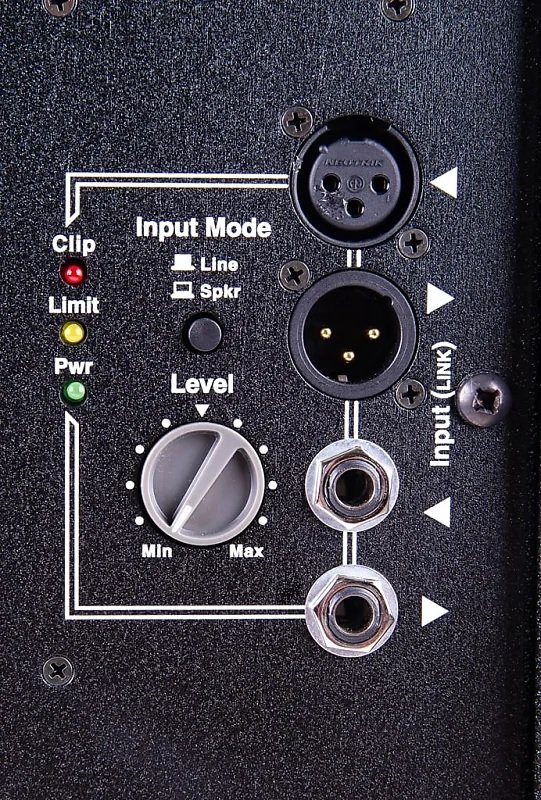

Connectors
XLR balanced line level input
1/4″ line or speaker level input
XLR balanced link output
1/4″ link output
Controls
Output Level
Line/Speaker Level Switch
LED Indicators
Power
Limit
Clip
Enclosure Material
0.6″ (1.5 cm) Birch
Baffle Material
0.6″ (1.5 cm) Birch
Dimensions
19.75 x 17.25 x 23.75″ (50.2 x 43.8 x 60.3 cm)
Weight
82.0 lb (37.3 kg)
