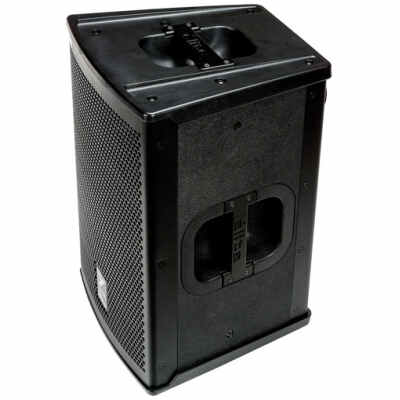

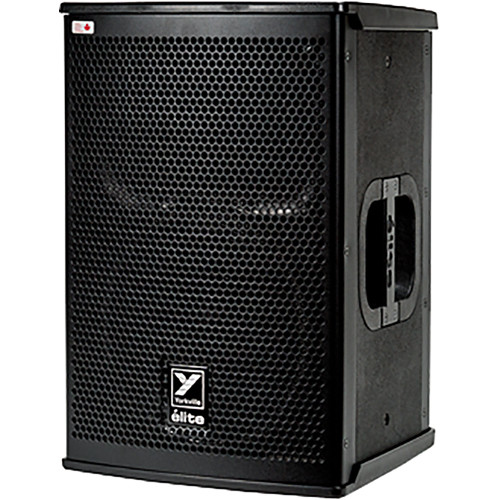

Yorkville Sound EF10P Elite Series 10" Powered Loudspeaker (600W)

Yorkville Sound EF10P Elite Series 10″ Powered Loudspeaker (600W)

Name: Yorkville Sound EF10P Elite Series 10" Powered Loudspeaker (600W)
SKU: EF10P
Price: 8291.95 AED
Availability: InStock

Brand :

Sku: EF10P

AED 8,706.55 inc VAT

Available in stock

Features

The Yorkville Sound EF10P Elite Series is a 10-inch powered loudspeaker delivering 600W RMS (1200W peak) of robust audio performance. It features a 10-inch neodymium woofer with a 2.5-inch voice coil and a 1.5-inch titanium diaphragm compression driver, ensuring clear highs and deep lows. Designed for durability, its cabinet is constructed from ABS-coated Baltic Birch plywood. Additional features include multiband DSP limiting with four preset performance modes and flexible I/O options, such as XLR and 1/4-inch combi-jacks, as well as 1/8-inch line inputs. Made in Canada, the EF10P is a reliable choice for front-of-house sound applications.

EAN: 840402043447

Compare Wishlist

Category: Powered Speakers Brand: Yorkville

Description
Reviews (0)

Description

Building upon the success of the original Elite series, the Yorkville EF10P is a powered, full-range loudspeaker with an integrated mixer, DSP, and Bluetooth control app. The unit utilizes a bi-amp module which delivers 500W to the 10″ neodymium woofer and 100W to the 1.5″ titanium compression driver; combined, they deliver a frequency response of 48 Hz to 20 kHz with a maximum SPL of 129 dB peak.

The rear panel offers a variety of inputs and outputs including a combination XLR-1/4″ line input, an 1/8″ TRS line input, and an XLR mic input. Additionally, there is a combo XLR-1/4″ main input and an XLR thru output for connecting additional loudspeakers (up to 16). The built-in DSP offers four voice modes including club, concert, vocal, and user which is accessed and controlled via the free Yorkville control app available for iOS and Android. The Yorkville EF10P includes a 25′ IEC power cord.

FEATURES

SPECIFICAATIONS

PA Speaker

Configuration	Active 2-Way
Total Power Capacity	600 W 1200 W Peak
Amplifier Power Rating	HF: 100 W LF: 500 W
Amplifier Class	LF: Class-D

Drivers

HF Driver	Titanium
HF Voice Coil	1.5″ / 38.1 mm
LF Driver	1x 10″ / 25.4 cm Woofer
LF Voice Coil	2.5″ / 63.5 mm
Magnet	LF: Neodymium

Performance

Frequency Response	48 Hz to 20 kHz ±3 dB
Maximum SPL	129 dB (Peak) 123 dB (Continuous)
Coverage Angle	90° H x 30° V
Input Sensitivity	+4 dBu
I/O Impedance	Input: 95 Kilohms (Balanced) 90 Kilohms (Unbalanced)

Connectivity

Audio I/O

1x Combo XLR-1/4″ TRS Line Input
1x 1/8″ / 3.5 mm TRS Line Input
1x XLR 3-Pin Mic Input
1x Combo XLR-1/4″ TRS Input
1x XLR 3-Pin Male Thru/Output

Signal Processing

Crossover	1.4 kHz
Filters	High-Pass: 100 Hz

Physical

Mounting	2 x (Top) 2 x (Bottom) 2 x (Each Side) 1 x (Rear) 1 x 1.38″ / 3.5 cm Pole Socket
Handles	1x Side 1x Top
Construction Material	ABS, Plywood
Dimensions	13.7 to 11.1 x 13 x 20″ / 34.8 to 28.2 x 33 x 50.8 cm
Weight	43 lb / 19.5 kg
