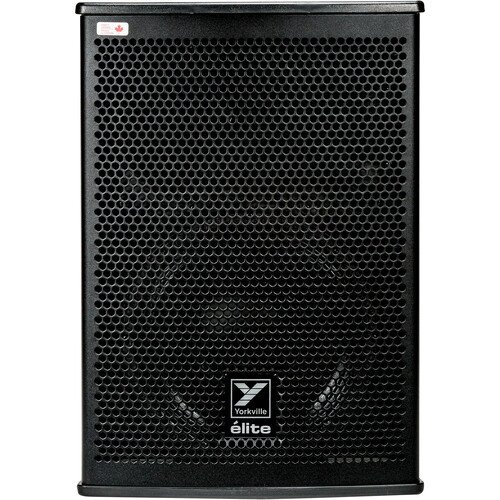

The EF10 is a 10-inch 2-way passive loudspeaker that brings the sound, performance, and reliability of the Elite series to installations and venues that already have power amplifiers.
Made with premium components, the EF10 is rated for 650 watts of peak power (325 watts program) at 8 ohms, and the rear panel has 1/4″ and Speakon™ inputs.
The cabinet offers durable birch construction, and the total weight is less than 45 pounds. As the most compact passive speaker in the Elite range, the EF10 is particularly easy to transport and stack.
FEATURES
- 650 W Peak Power (325 W Program)
- 10” Woofer with 2” Voice Coil
- 1” Compression Driver
- ABS-Coated Birch Plywood Construction
- Made in Canada
SPECIFICATIONS
| System Type | Unpowered Loudspeaker |
| Power Rating | 650 W Peak (325 W Program) |
| Biampable | No |
| Nominal Impedance (Ohms) | 8Ω |
| Sensitivity (dB AT 1Watt/1m) | 99 dB |
| Max SPL | 127 dB Peak (124 dB Continuous) |
| Frequency Response (Hz +/- 3dB) | 65 Hz – 20 kHz |
| Crossover Frequency | 2900 Hz |
| HF Driver(s) | 1″ Throat (1″ Titanium Diaphragm) |
| HF Horn | ABS Plastic Custom Waveguide |
| HF Dispersion (°H x °V) | 100° x 30° |
| HF Protection | 2x SK3 Protection Bulbs |
| LF Driver(s) | 10″ (2″ Voice Coil) |
| Inputs – 1/4 IN Jacks | 2 |
| Inputs – Speakon 4-pin | 2 |

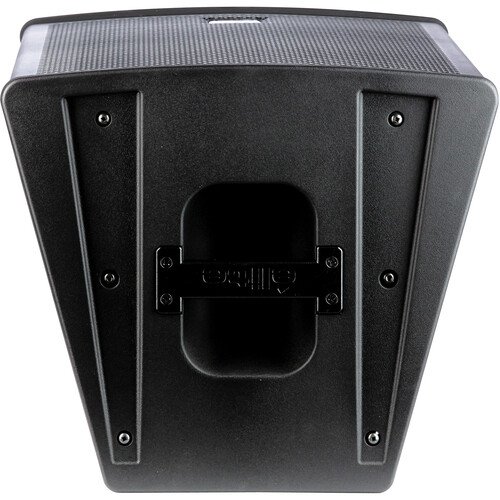

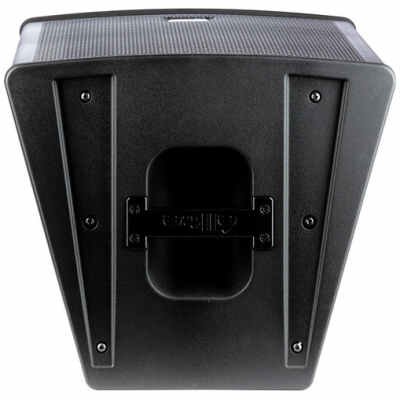

| Bar Handles | 2 (1 Top, 1 Side) |
| Flypoints | 8 (2 Top, 2 Bottom, 2 Each Side), 1 Pullback |
| Flying Hardware | 1/4 – 20 |

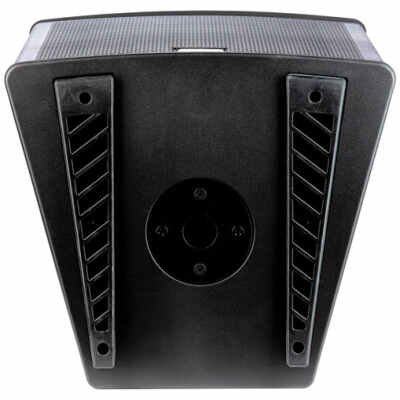

| Pole Mount Adapter (1 3/8 | 1 (Bottom) |
| Enclosure Materials | 15 mm (5/8″) 11-ply Russian Birch |
| Grille | Perforated Metal |
| Covering / Finish | Black Ultrathane Paint |
| Dimensions (DWH) | 13″ x 13.7″ x 20″ (33 cm x 34.8 cm x 28.2 cm) |
| Weight | 42.5 lbs / 19.4 kg |
