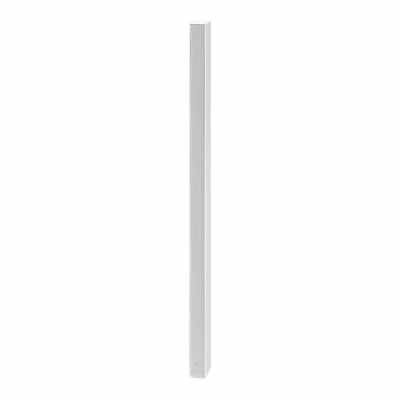

Yamaha VXL1W24 Slim line array speaker with 24 x 1.5” drivers

The Yamaha VXL1W-24 is the largest model in the VXL Series, featuring twenty-four 1.5-inch full-range drivers with neodymium magnets in an ultra-slim cabinet. Designed to deliver highly intelligible speech and natural music reproduction, the VXL1W-24 ensures consistent sound coverage with its 170° horizontal dispersion and selectable vertical coverage of 20° (Standard) or 40° (Wide). This makes it especially suitable for acoustically challenging environments such as lecture halls, conference centers, and reflective rooms where clarity is essential.

Its slim 2.1-inch profile and elegant design allow it to blend seamlessly into any décor, while the paintable enclosure and grille make customization easy. With stellar projection, distortion-free performance, and a compact footprint, the VXL1W-24 combines visual elegance with outstanding sonic performance.

Yamaha has equipped this model with user-friendly features, including dedicated presets for different installation requirements and an easily accessible rear-panel switch to adjust vertical dispersion. Installation is simplified with the supplied wall-mount bracket, and a range of optional hardware is available for flexible mounting options. Whether for speech or music, the VXL1W-24 delivers balanced, high-quality audio that enhances any professional environment.

Features

• Slim line array speaker with 24 x 1.5” full-range drivers

• Neodymium magnet drivers for distortion-free, clear sound

• 170° horizontal dispersion for uniform SPL coverage

• Selectable vertical coverage: 20° (Standard) or 40° (Wide)

• Elegant slim design complements modern interiors

• Available in black or white; paintable enclosure and grille

• Supplied wall-mount bracket with optional hardware for versatile installation

• Optimized presets for various installation environments

Specifications
