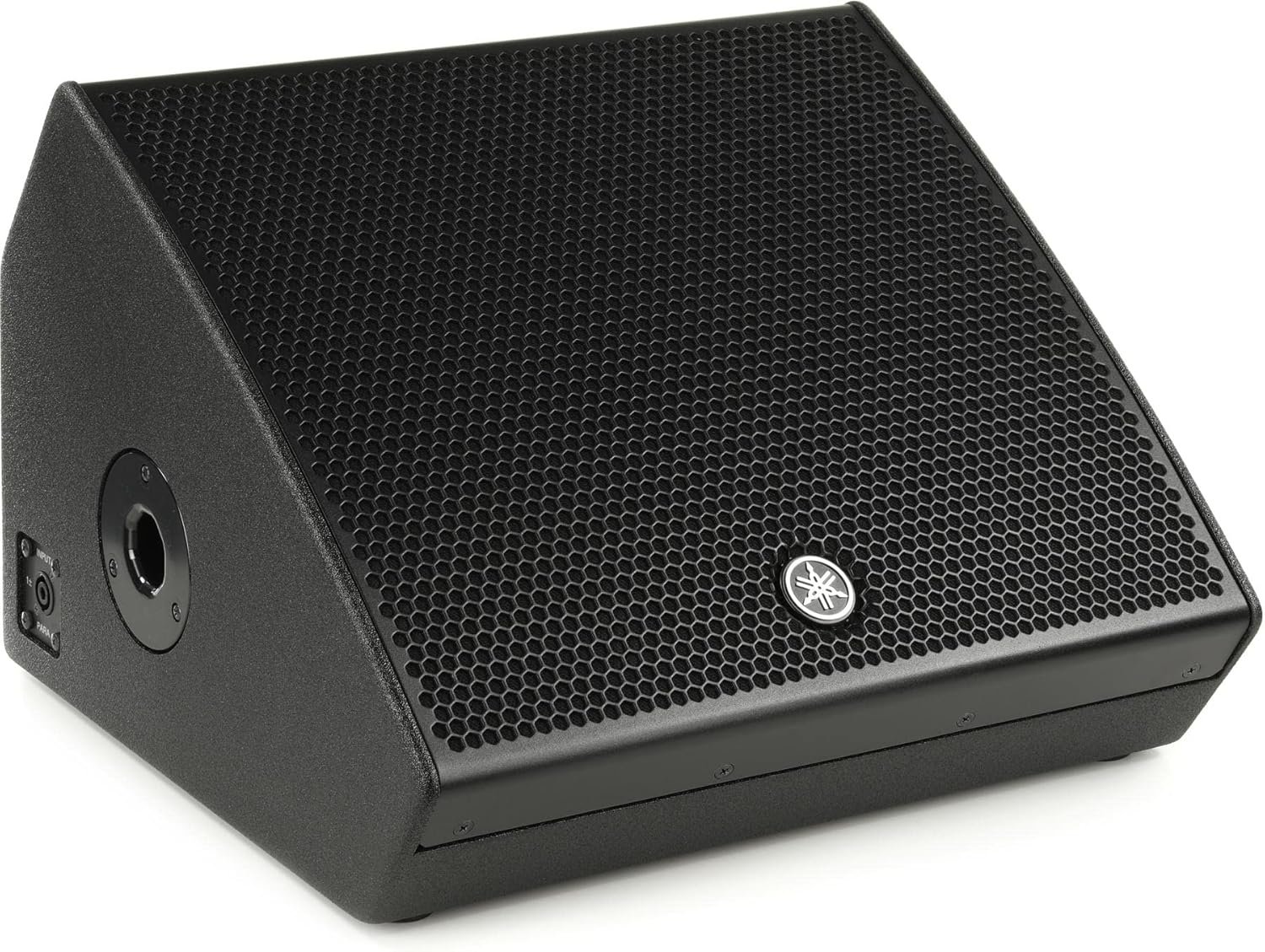

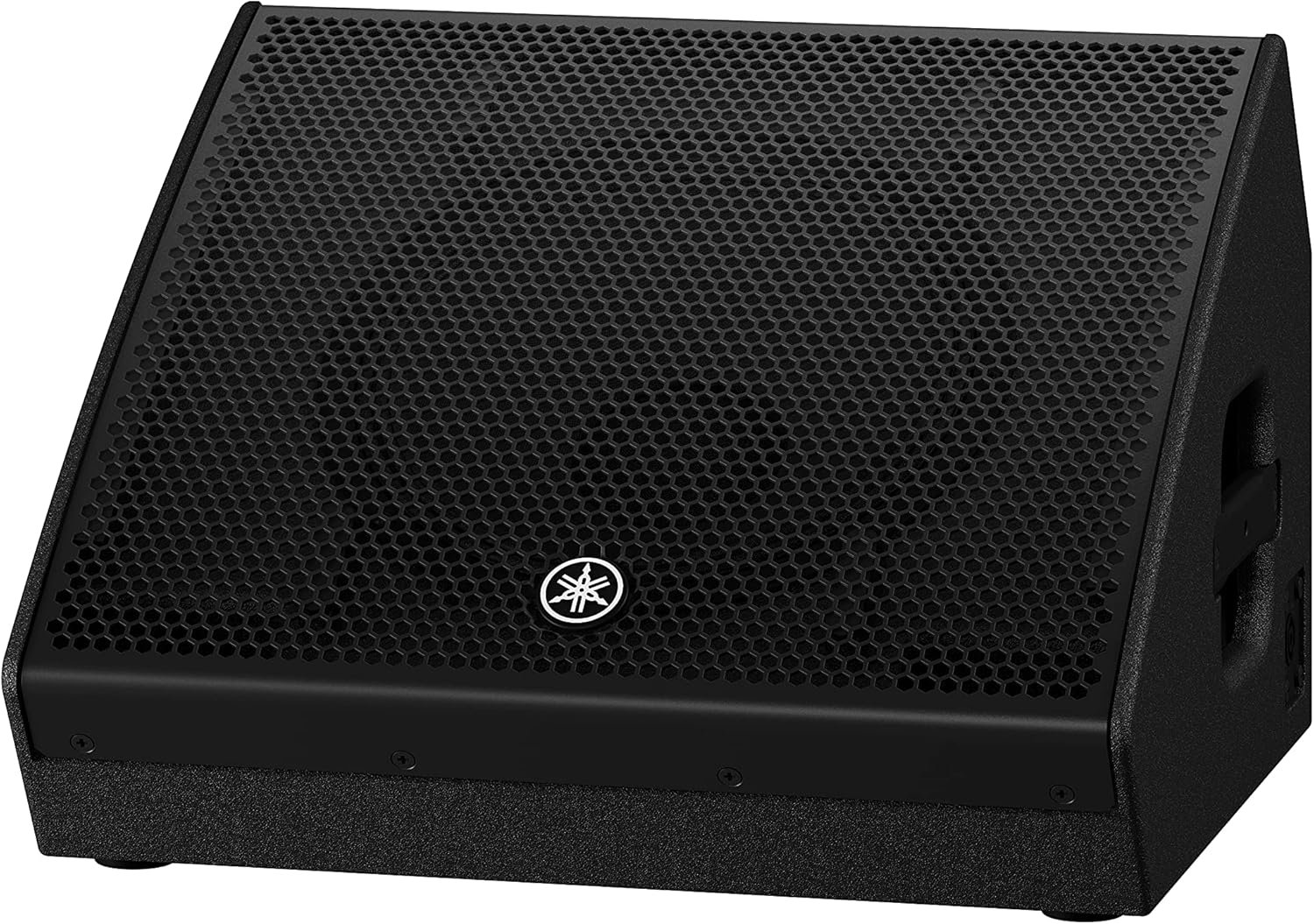

The Yamaha CHR12M is a professional-grade 12-inch 2-way passive loudspeaker system designed for accurate, high-output sound in a compact, low-profile enclosure. Its custom coaxial driver design, with a 12-inch LF driver and a 1.75-inch HF compression driver, provides near-perfect phase response for exceptional clarity and smooth frequency reproduction. Built with a premium plywood enclosure finished in durable polyurea coating and protected by a heavy steel grille, the CHR12M is engineered for the demands of live performance environments. Dual SpeakON connectors make stage cabling simple, while the integrated pole socket allows for versatile mounting options. Ideal for use as a floor monitor or main speaker, the CHR12M offers professional performance and durability that meets the needs of touring musicians, audio engineers, and fixed installations.
Features
12-inch LF driver with 2.5-inch voice coil
1.75-inch HF compression driver in coaxial configuration for phase-accurate sound
Compact, low-profile design optimized for stage monitoring
Rugged plywood enclosure with tough polyurea coating
Heavy steel grille for driver protection and stage-ready aesthetics
Dual SpeakON connectors wired in parallel for easy cabling
Pole socket for stand mounting flexibility
Ideal for both portable and fixed sound reinforcement applications
Specifications
| Brand | Yamaha |
| Model Name | CHR12M |
| Speaker Type | Coaxial |
| Maximum Output Power | 1000 Watts |
| Connectivity Technology | SpeakON |
| Audio Output Mode | Stereo |
| Mounting Type | Coaxial, Floor Mount |
| Subwoofer Diameter | 12 inches |
| Woofer Diameter | 12 inches |
| Tweeter Diameter | 1.75 inches |
| Surround Sound Configuration | 2.0 |

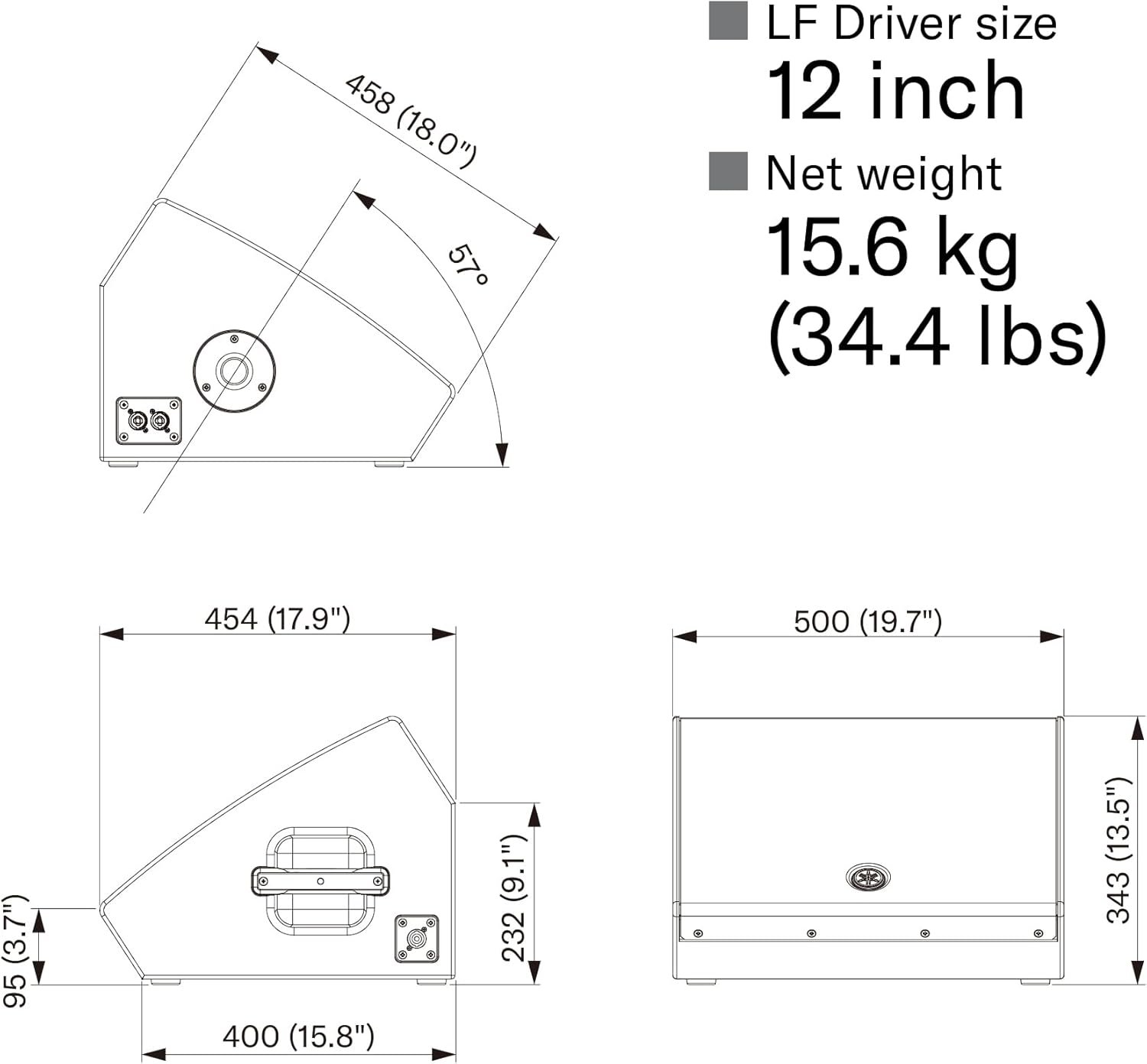

| Dimensions (D x W x H) | 17.9″ x 13.5″ x 17.9″ |
| Weight | 34.3 lbs |
| Material | Plywood with polyurea coating |
| Included Components | Owner’s Manual |
| Power Source | Corded Electric |
| Warranty Type | Limited |
| Number of Items | 1 |
| Style | CHR12M |
| Recommended Uses | Compression / Floor Monitoring |
