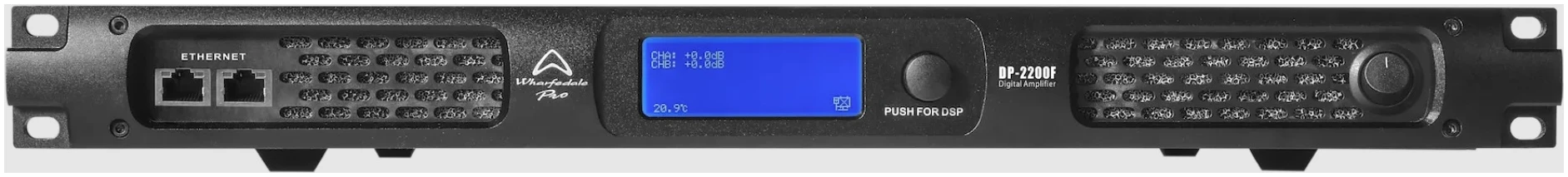

Wharfedale DP2200F Power Amplifier 1x9520W @ 100V/ 2x3400W @ 4Ohm / 2x2000W @ 8Ohm
Features
- 2 channels
- 8 Ohm 2 x 2000 W
- 4 Ohm 2 x 3400 W
- 2 Ohm 2 x 4760 W
- 16 Ohm Bridged 1 x 4000 W
- 8 Ohm Bridged 1 x 6800 W
- 4 Ohm Bridged 1 x 9520 W
- 100 V Hi-Z 2 x 3400 W
- 70 V Hi-Z 2 x 2400 W
Specifications
| Model | DP-2200F | DP-4100F | DP-4065F | DP-4035F | |
|---|---|---|---|---|---|
| Rated Power (THD=1%,Each channel works simultaneously with continuous sinusoidal 1 KHz) | 8 Ω / Stereo | 2 x 2000 W | 4 x 1000 W | 4 x 650 W | 4 x 350 W |
| 4 Ω / Stereo | 2 x 3400 W | 4 x 1700 W | 4 x 1100 W | 4 x 595 W | |
| 2 Ω / Stereo | 2 x 4760 W | 4 x 2890 W | 4 x 1870 W | 4 x 1010 W | |
| 16 Ω / Bridge | 1 x 4000 W | 2 x 2000 W | 2 x 1300 W | 2 x 700 W | |
| 8 Ω / Bridge | 1 x 6800 W | 2 x 3400 W | 2 x 2200 W | 2 x 1190 W | |
| 4 Ω / Bridge | 1 x 9520 W | 2 x 5780 W | 2 x 3740 W | 2 x 2020 W | |
| 100 V Hi-Z | 2 x 3400 W | – | – | – | |
| 70 V Hi-Z | 2 x 2400 W | 4 x 1700 W | 4 x 1100 W | – | |
| Output RMS voltage | 126.5 V | 89.4 V | 72.1 V | 52.9 V | |
| Maximum Input Level | +21 dBu | ||||
| Amp Gain | 35 dB | 35 dB | 35 dB | 35 dB | |
| THD+N | Typical value:0.05%(10% Rated Power,8 Ω) | ||||
| Cross-Talk | ≥90 dB(20 Hz-1 KHz,Below Rated Power,8 Ω) | ||||
| Frequency Response | Typical value:+0,-0.5 dB(10% Rated Power,20 Hz-20 KHz,8 Ω) | ||||
| Input Impedance | 20 kΩ(Balance),10 kΩ(Unbalance) | ||||
| Damping Factor | ≥1000(20 Hz-200 Hz,8 Ω) | ||||
| SNR | ≥105 dB (Default Gain, A weighted,20 Hz-20 KHz,8 Ω) | ||||
| Main Power | 90~260 VAC,50/60 Hz | ||||
| Protection | Power under-voltage protection?Amplifier output DC protection?Thermal Protection? Temperature Power Control?Overload Power Control | ||||
| Size(W×H×D) | 483 x 45 x 376 mm | ||||
| Net Weight | 9.3 kg | 9.1 kg | 9.1 kg | 8.0 kg | |
