Description

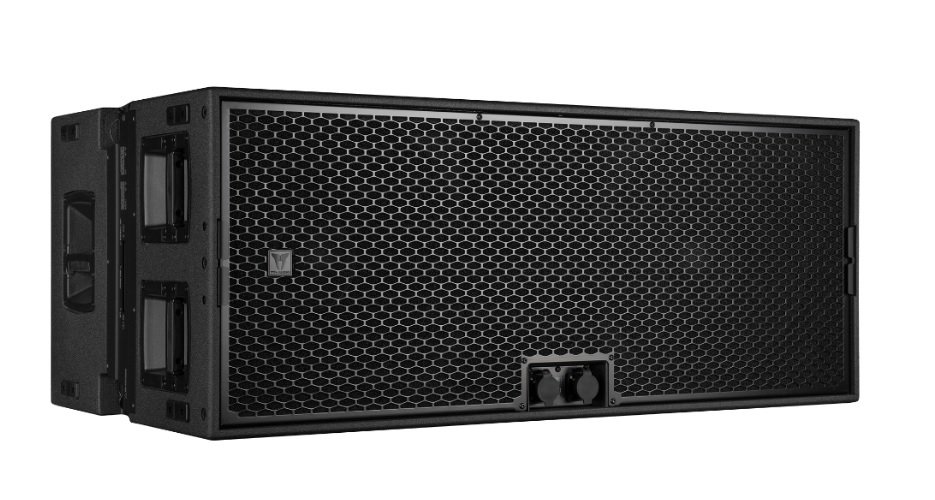

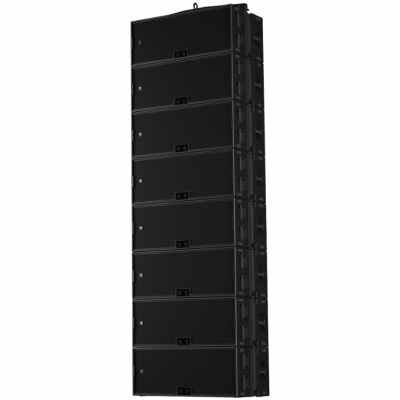

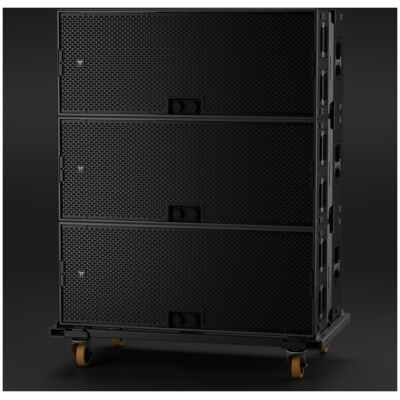

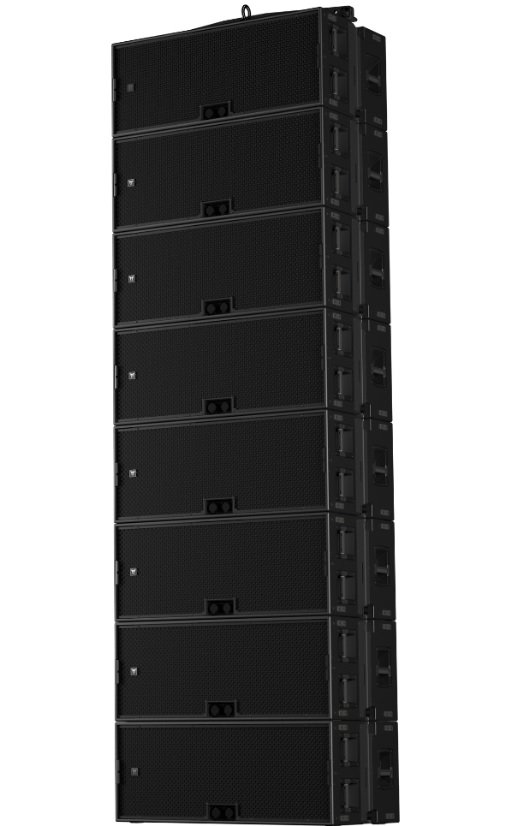

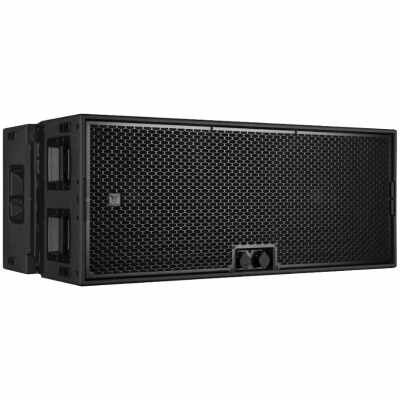

The GTS 29 is a dual 19”subwoofer module for the low-frequency extension in high-demanding touring and install applications, indoors and outdoors. Equipped with two high-excursion best-in-class transducers, it offers excellent reproduction quality and extreme sound pressure. The cabinet is provided with power connections on front and back panels for easy deployment in cardioid configuration.Up to 16 GTS 29 modules can be ground-stacked or flown on a single fly-bar.

FEATURES

  • 144 dB max SPL

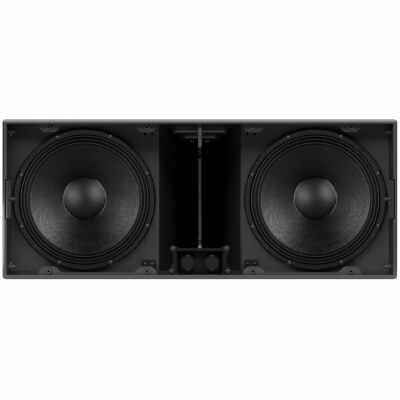

  • 2 x 19” neo woofers, 4” v.c.
  • 3 handles on each side
  • Designed to operate with XPS 16K amplifier (4 modules per amp unit)
  • Tour-tested weather-resistant birch plywood enclosure with durable polyurea coating
  • Heavy-duty, powder-coated, custom perforated front grille

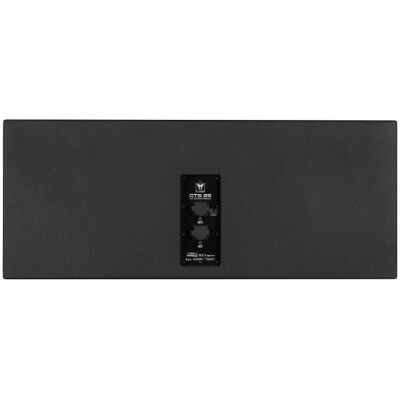

  • 2 Front x 2 Rear P-COM 8 pole bayonet connectors (Gold-plated, CA-COM compatible, IP 68)



SPECIFICATIONS

  • Frequency Response (-10dB): 25 Hz ÷ 200 Hz
  • Max SPL @ 1m: 144 dB
  • Amplification: Full range
  • Nominal Impedance LF: 8 ohm
  • Nominal Impedance LF2: 8 ohm
  • woofer: 2 x 19″ neo, 4.0″ vc
  • I/O Connectors: NO P-COM 8
  • Safety agency: CE compliant
  • Hardware: Suspension fittings, M20 Socket
  • Handles: 3x bandage
  • Color: Black
  • Height: 531.5 mm / 20.93 inches
  • Width: 1310 mm / 51.57 inches
  • Depth: 735 mm / 28.94 inches
  • Weight: 96 kg / 211.64 lbs
  • Package Height: 620 mm / 24.41 inches
  • Package Width: 1360 mm / 53.54 inches
  • Package Depth: 800 mm / 31.5 inches
  • Package Weight: 107 kg / 235.89 lbs
