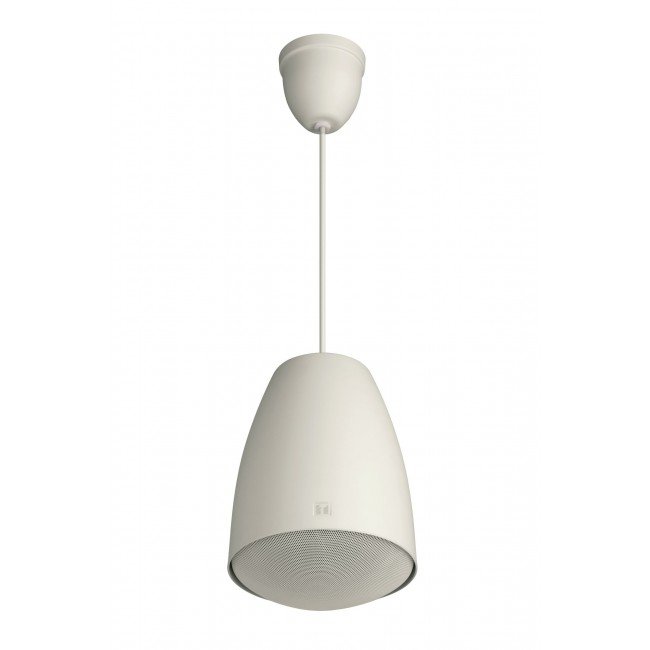

The PE-304 is a pendant speaker designed for ceiling suspension installations. Considered in architectural design, it can blend in with lighting equipment. A directly-attached 5 m (16.4 ft) cable allows the speaker to be suspended from the high ceiling. The PE-304 is driven on both high-impedance (100 V and 70 V) and low-impedance (8 Ohm›) lines. The input power (impedance) can be easily changed at the upper side of the speaker. The speaker is easy to repaint so as to meet a wide range of design needs.
 FEATURES
- Ideally suited for BGM and announcements
- Stylish and outstanding design inspired by the finest lighting fixtures
- Excellent sound quality
- Sturdy cable extendable up to 5 meters
- Paintable
- Input impedance easily changeable
- Bass-reflex type
SPECIFICATIONS
| PE-304 | PE-64 | |
|---|---|---|
| Frequency response | 70 Hz – 20 kHz | 100 Hz – 18 kHz |
| Sensitivity (1 W, 1 m) | 91 dB | 90 dB |
| Rated input (100 V) | 30 W | 6 W |
| Tappings (100 V) | 100 V line: 330 ? (30 W), 500 ? (20 W), 670 ? (15 W), 1 k? (10 W), 2 k? (5 W)
70 V line: 170 ? (30 W), 250 ? (20 W), 330 ? (15 W), 500 ? (10 W), 1 k? (5 W) Low impedance: 8 ? |
100V LINE: 1.7k? (6W), 3.3k? (3W), 10 k? (1W)
70V LINE: 1.7k? (3W), 3.3k? (1.5W), 10 k? (0.5W)
|
| Speaker component | 12 cm cone-type + balanced-dome tweeter | 12 cm cone-type |
| Finish | HIPS resin, off-white (RAL 9010 or equivalent) | HIPS resin, off-white (RAL 9010 or equivalent) |
| Dimensions | 186 x 251 mm (Ø x H) | 186 x 251 mm (Ø x H) |
| Weight | 2.1 kg | 1.5 kg |
| Rated impedance | 8 Ω |
