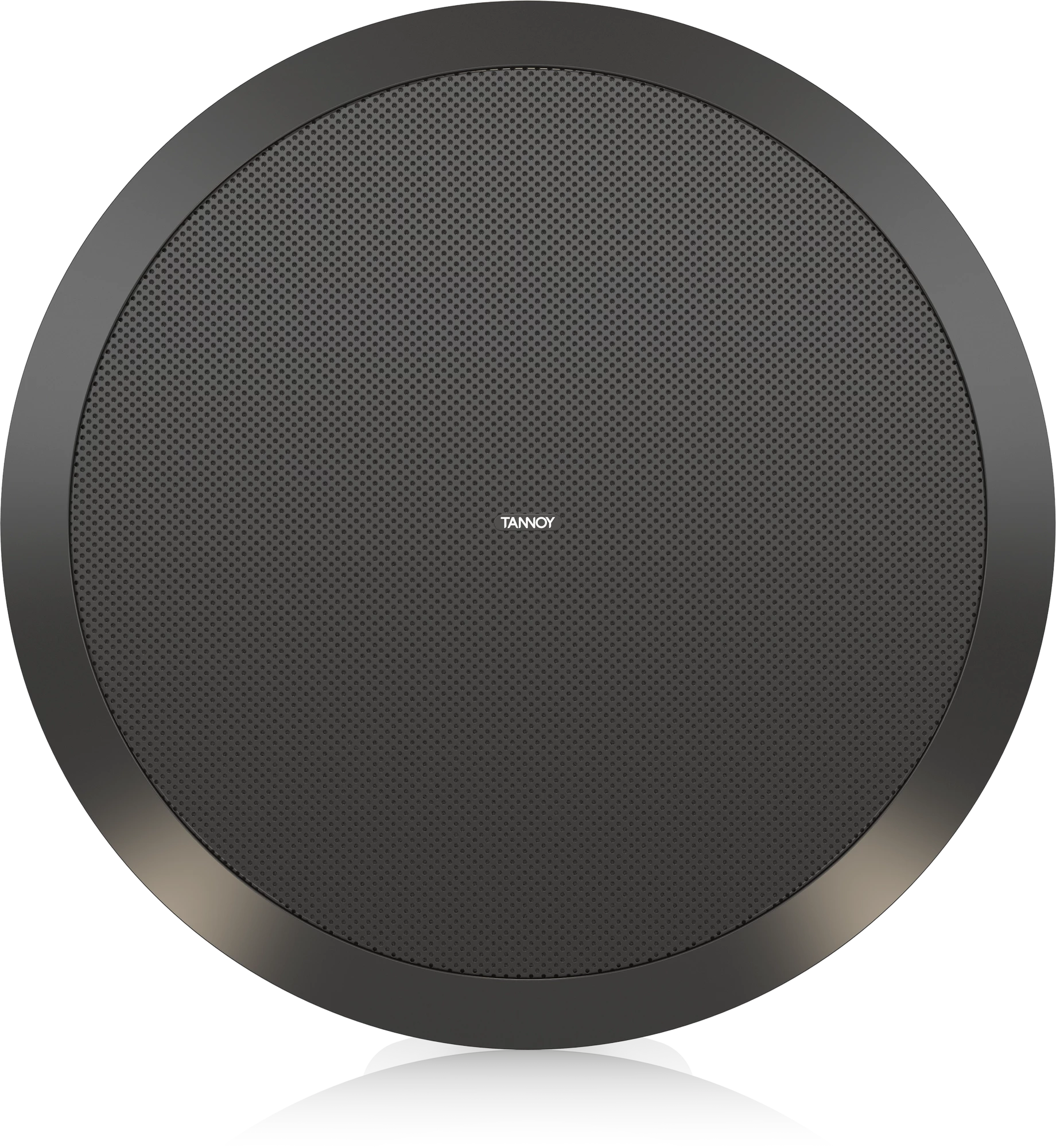

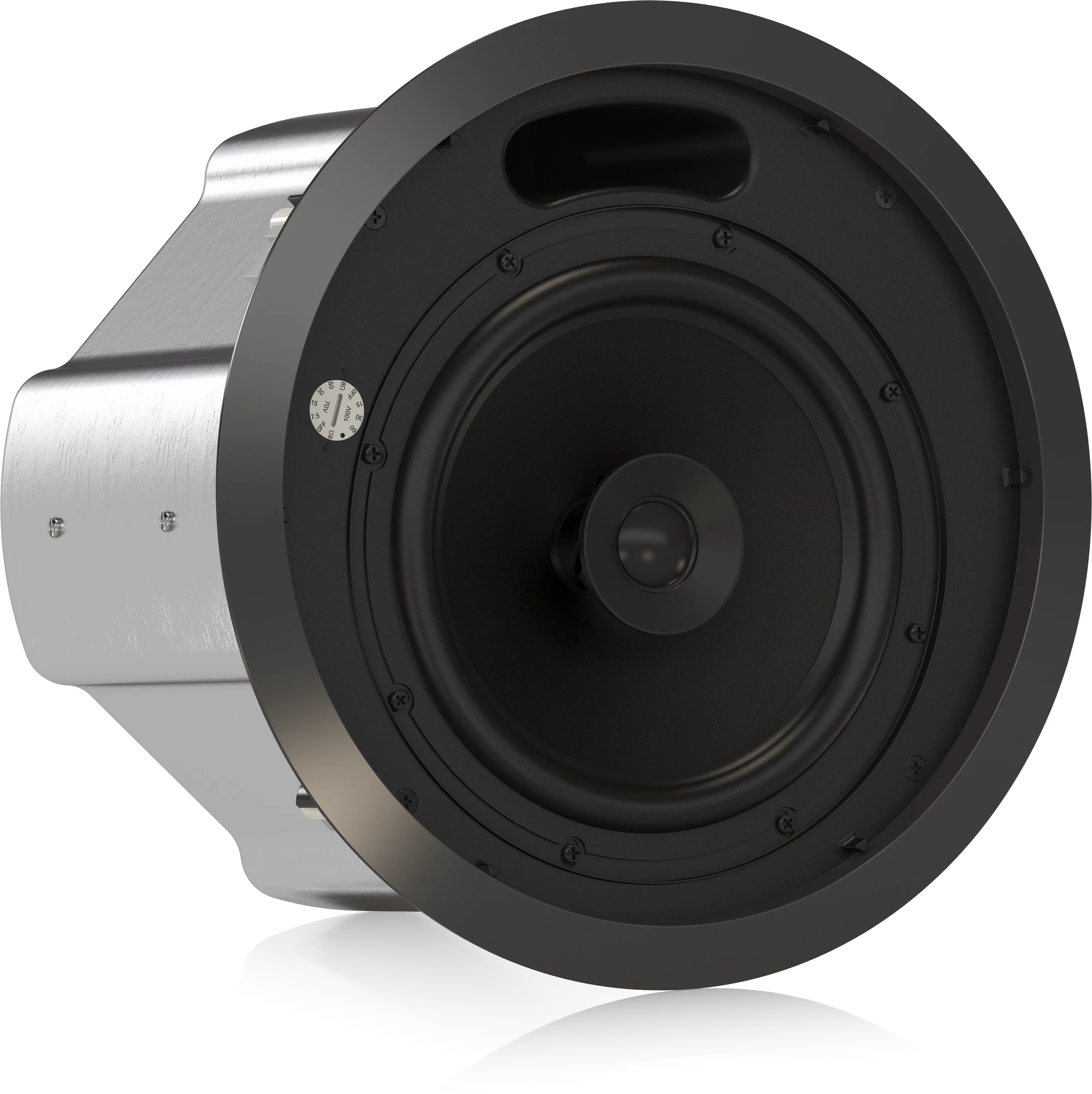

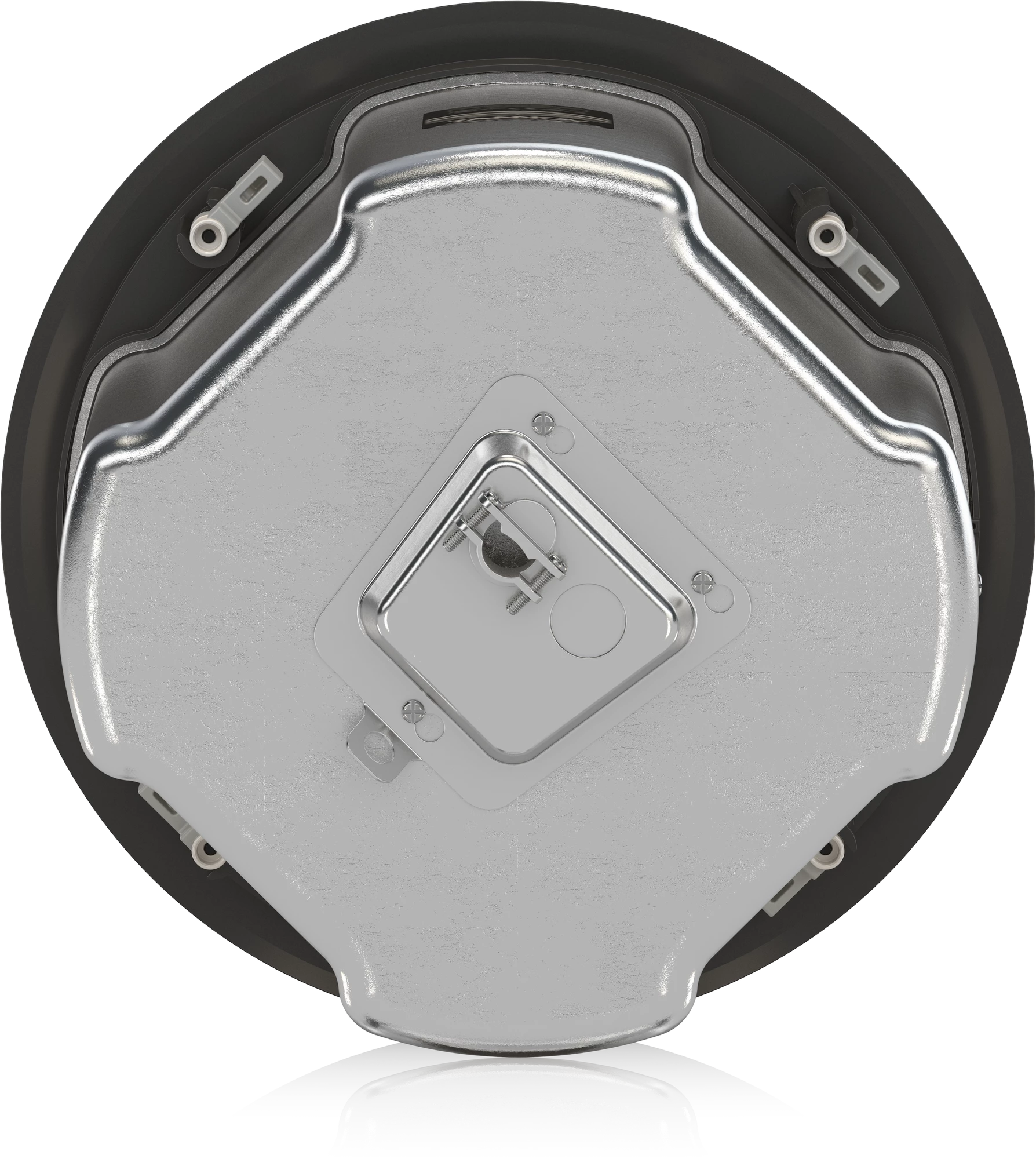

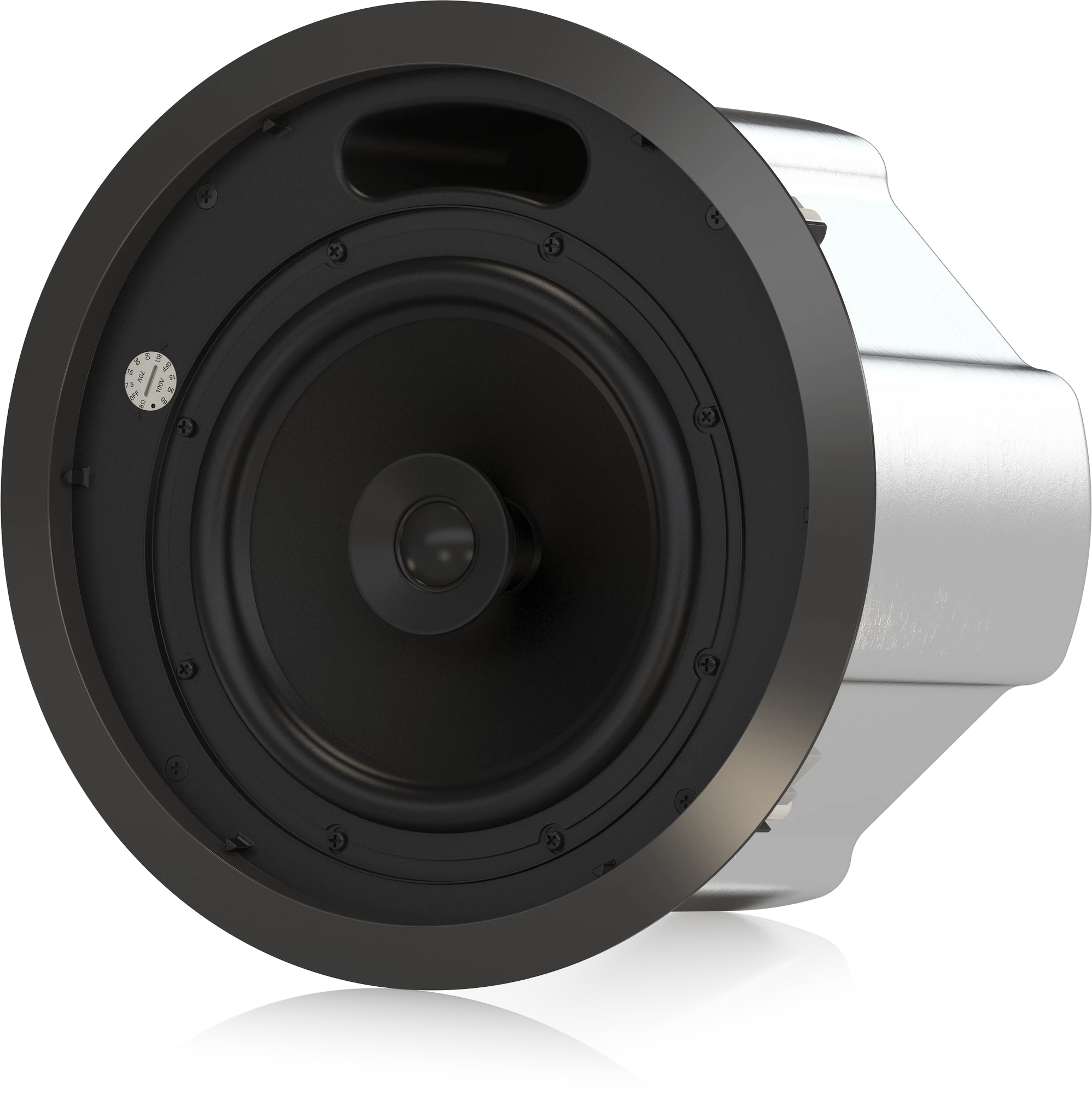

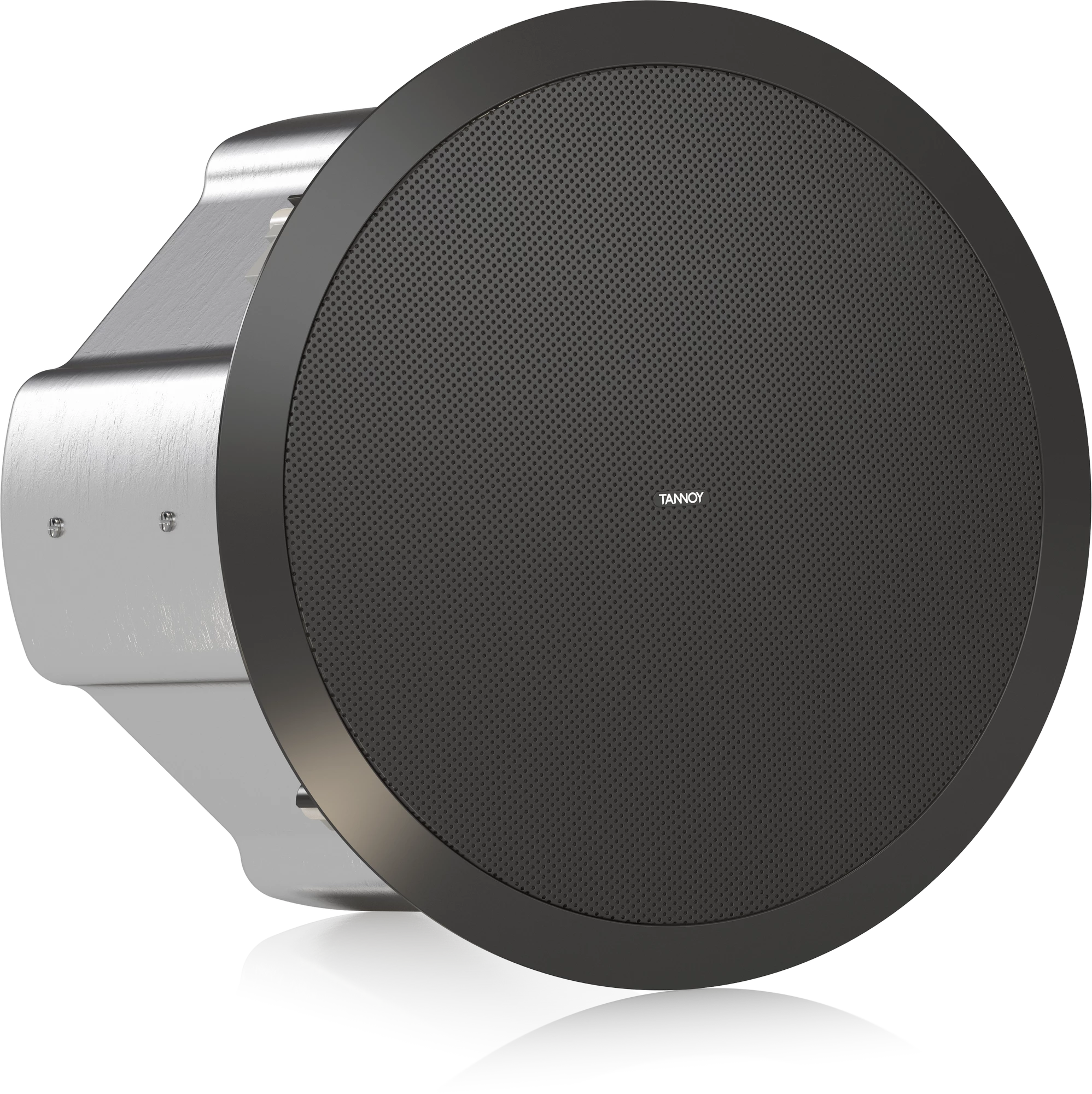

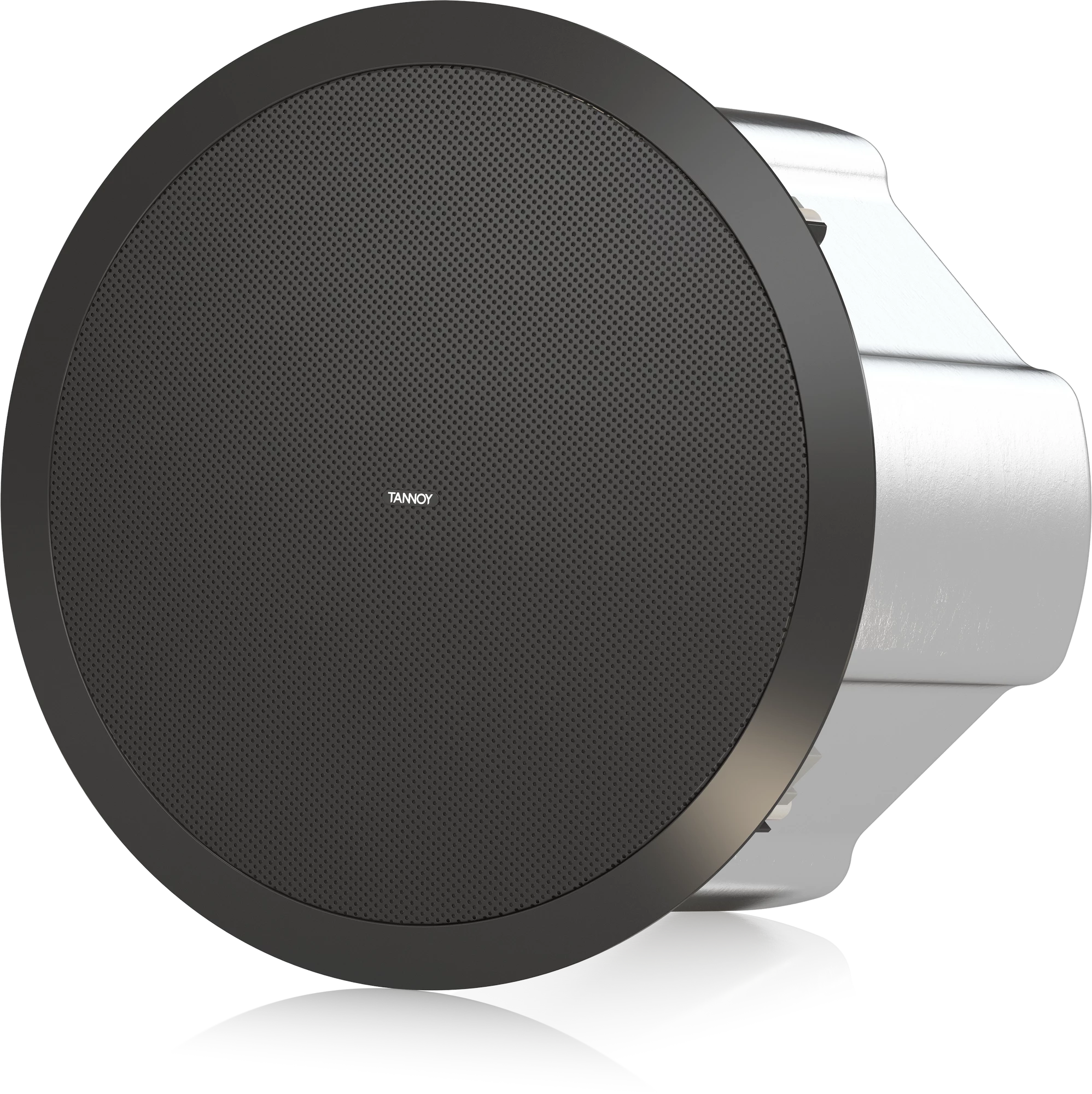

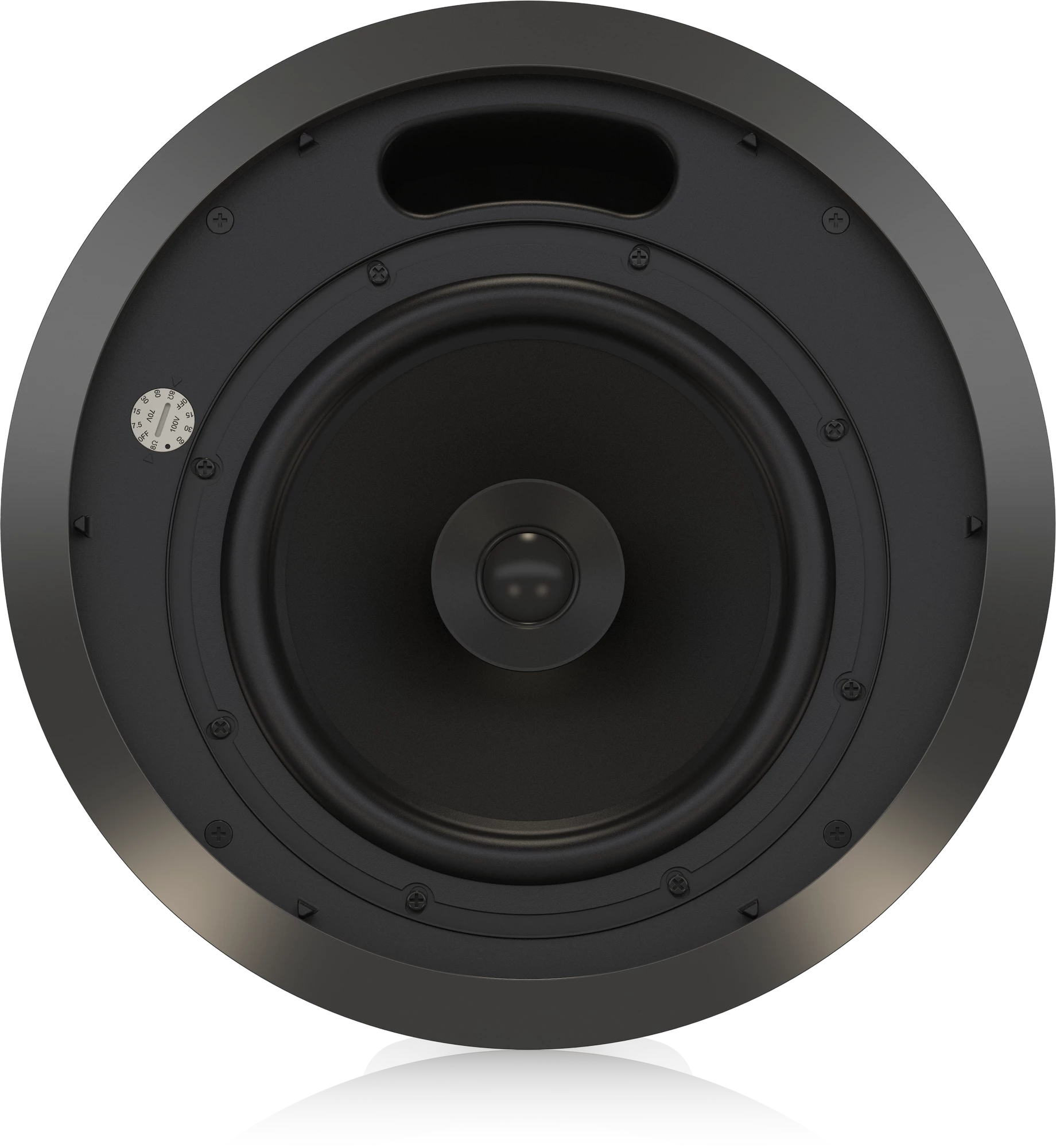

Tannoy CVS 801-BK 8″ Coaxial In-Ceiling Loudspeaker (Black)

The CVS 801-BK is a coaxial ceiling loudspeaker engineered to provide superb audio performance in both background and foreground music sound systems. Ideally suited for a wide variety of applications, from restaurants and hotels to houses of worship and businesses of all types, the CVS 801-BK offers the power handling, wide frequency response and low distortion typically found in more expensive products. EN 54-24 certification for fire detection and fire alarm systems makes the CVS 801-BK the perfect choice where safety is a top priority. The loudspeaker is also UL 1480 certified for fire-protected signalling systems and UL 2043 certified for air-handling spaces.

Features

• Coaxial full range ceiling loudspeaker for installation applications
• 90 Watts continuous, 360 Watts peak power
• 8″ polypropylene driver with butyl rubber surround for enhanced durability and long-term reliability
• 1″ ferrofluid cooled soft dome high frequency driver
• Wide constant directivity dispersion for optimum coverage
• EN54-24:2008 certified Type A
• UL 1480 certified for fire-protected signalling systems
• UL 2043 certified for air-handling spaces
• UV and weather resistant UL 94-V0 and 94-5VB ABS front with plated steel fire can enclosure
• Powder coated aluminium mesh grille with dust protection
• Multiple transformer taps for 70 V and 100 V line systems or 8 Ohm direct input
• Low insertion loss 60 W line transformer with easily accessible tapping switch
• Semi matt black finish fits unobtrusively in any environment
• Mounting C-ring and ceiling tile rails included
• Steel cover and strain relief clamping mechanism for fire rated cable

Specifications

Performance

• Frequency response (+3dB, -3 dB): 88 Hz-20 kHz
• Frequency response (-10 dB): 65 Hz-20 kHz
• Sensitivity at 1m/1W: 91 dB
• Nominal coverage angle: 100°
• Directivity factor (Q) averaged 1 kHz to 6 kHz: 10.2
• Directivity index (DI) averaged 1 kHz to 6 kHz: 10.1
• Power handling (LoZ):
  • *1 Average: 90 W
  • Programme: 180 W
  • Peak: 360 W
  • Recommended amplifier power: 180 W @ 8 ?
  • Nominal Impedance (Switch to LoZ): 8 ?
  • Rated maximum SPL (1 m, Switch to LoZ): 113 dB
  • Average: 110 dB
  • Peak SPL: 116 dB
• Transformer taps:
  • 70 V: 60 W/ 30 W/ 15 W/ 7.5 W
  • 100 V: 60 W/ 30 W/ 15 W
• Transducers:
  • Low frequency: 200 mm (8″) PP cone
  • High frequency: 25 mm (1″) coaxially mounted

Physical

• Enclosure: Blind mount (BM)
• Back can: Anodized steel
• Baffle: Reflex loaded UL 94V-0 rated ABS
• Grille: Aluminum, powder coated
• Safety Features: Rear enclosure safety ring for load-bearing bond
• Clamping Design: Security toggle clamp
• Connectors: Euroblock-style connector with screw terminals (with input cover and cable gland supplied)

Dimensions

• Bezel diameter (grille max diameter) 305 mm(12″)
• Rear face of baffle to rear of back can 212 mm (8.35″)
• Rear face of baffle to top of safety loop 225 mm (8.86″)
• Rear face of baffle to rear of flex conduit 237 mm (9.33″)
• Hole cutout diameter ?273 mm (10.75″)
• Net weight 5.35 kg (11.77 lbs) ±10%
• Included accessories Metal grille, cable gland, flex conduit,C-ring, tile-bridge kit, paint mask,cutout template
• Optional accessories:
  • Mud ring
  • 48″ Tile rail
• Packed quantity 1 pair
