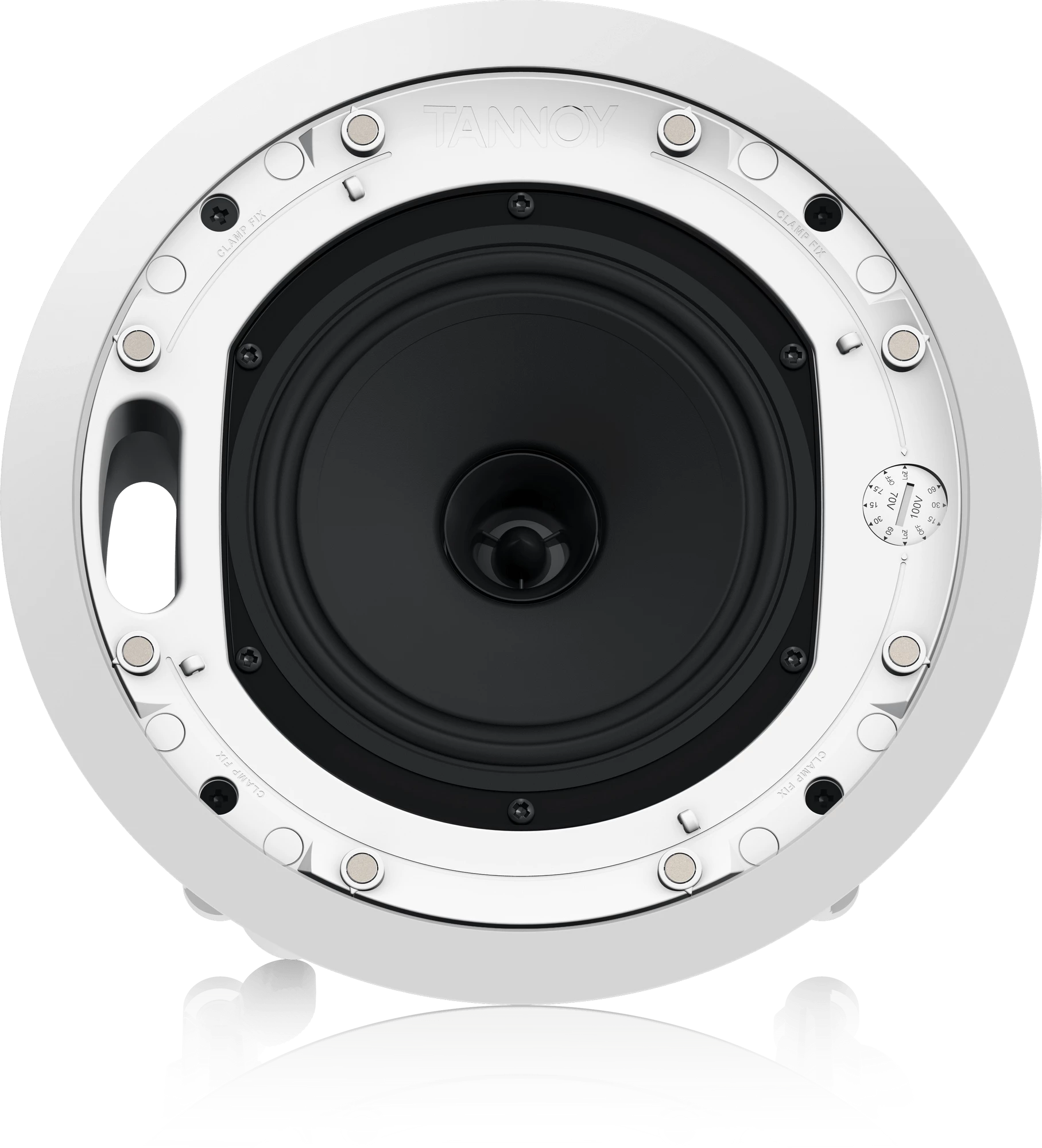

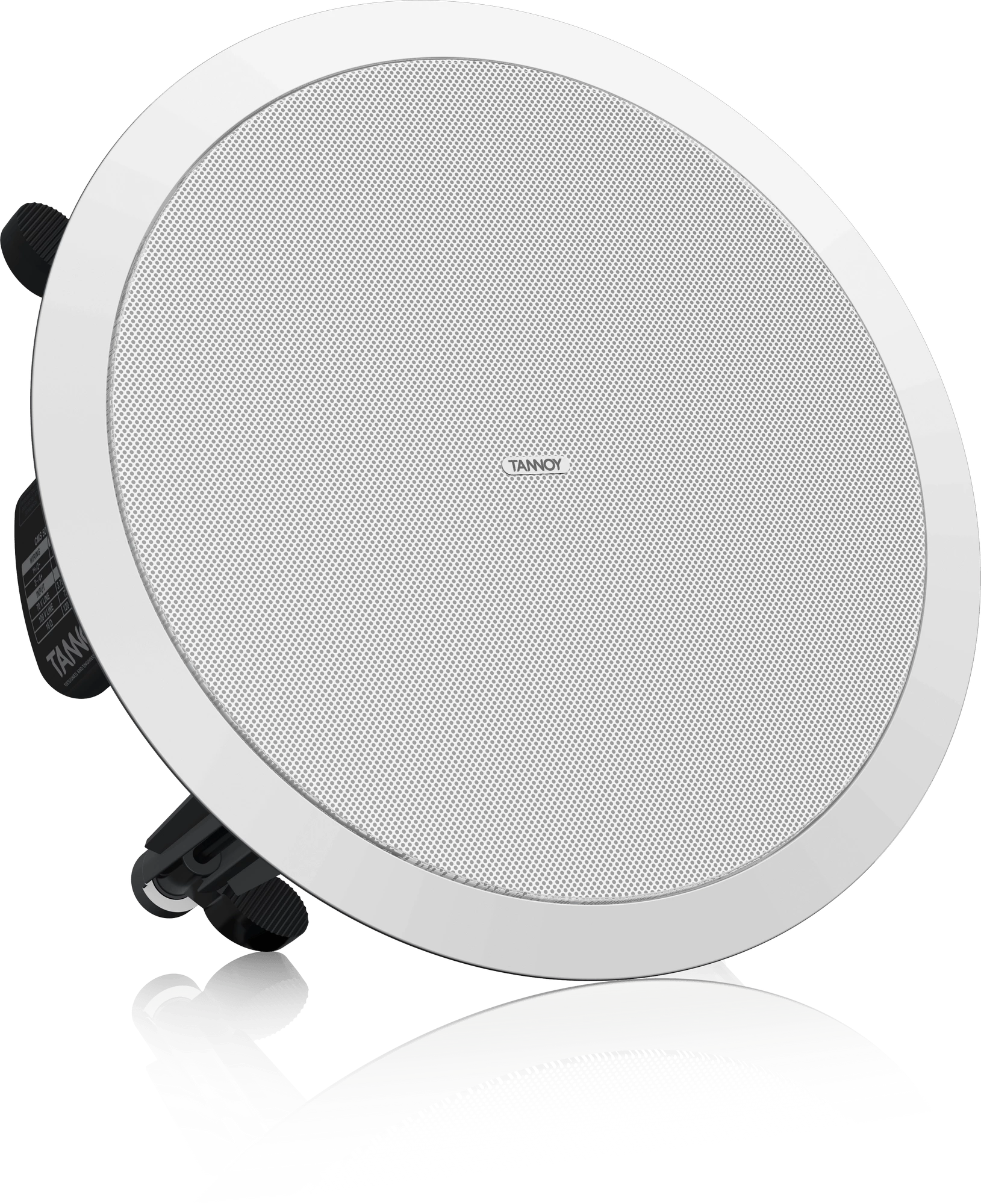

Tannoy CMS 603DC PI 6" Full Range Ceiling Loudspeaker with Dual Concentric Driver

Tannoy CMS 603DC PI 6″ Full Range Ceiling Loudspeaker with Dual Concentric Driver

Name: Tannoy CMS 603DC PI 6" Full Range Ceiling Loudspeaker with Dual Concentric Driver
SKU: CMS 603DC PI
Price: 906.00 AED
Availability: InStock

Brand :

Sku: CMS 603DC PI

AED 951.30 inc VAT

Available in stock

Features

The CMS 603DC PI is a full bandwidth 320-Watt high sensitivity loudspeaker that utilises our third generation Ceiling Monitor System technology (CMS 3.0). Thanks to an all-new proprietary 6" Dual Concentric point source driver with Omnimagnet technology on a Torus Ogive Waveguide, the UL certified CMS 603DC PI delivers wide and consistent broadband directivity with enhanced intelligibility – plus highly accurate and linear response.

EAN: 748252163141

Compare Wishlist

Category: Ceiling Speakers Brand: Tannoy

Description

The CMS 603DC PI is a full bandwidth 320-Watt high sensitivity loudspeaker that utilises our third generation Ceiling Monitor System technology (CMS 3.0). Thanks to an all-new proprietary 6″ Dual Concentric point source driver with Omnimagnet technology on a Torus Ogive Waveguide, the UL certified CMS 603DC PI delivers wide and consistent broadband directivity with enhanced intelligibility – plus highly accurate and linear response.

Features

Full range ceiling loudspeaker for installation applications
80 Watts continuous, 320 Watts peak power
Next generation 6″ Dual Concentric driver featuring Omnimagnet technology
Torus Ogive waveguide for improved high frequency response and directivity
Pre-install version supplied without back can (available separately)
UL 1480 certified for general signalling systems
UL 2043 certified for air-handling spaces
Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input when used with the optional CMS 603 PI BACKCAN
Low insertion loss 60 W line transformer with easily accessible tapping switch. Note that the transformer is mounted in optional CMS 603 PI BACKCAN
Optimised for Lab Gruppen low impedance LUCIA amplifiers with up to 8 CMS series loudspeakers per channel
Semi matt white finish fits unobtrusively in any environment
Powder coated UV resistant perforated steel mesh grille with dust protection
Removable magnetic grille for custom painting
Optional ARCO designer grilles available for minimal architectural impact
Self-aligning 4 way clamp mounting system
Mounting C-ring and ceiling tile rails included

Specifications

Performance

Frequency response (-3 dB) (1) BM Backcan	75 Hz – 30 kHz
Frequency range (-10 dB) (1) BM Backcan	50 Hz – 30 kHz
Frequency range (-10 dB) (1) PI Backcan	46 Hz – 30 kHz
System sensitivity (1 W @ 1 m) (2)	91 dB (1 W = 4 V for 16 Ohms)
Nominal coverage angle	90 degrees conical
Coverage angle (1 kHz to 6 kHz)	—
Directivity factor (Q)	—
Directivity index (DI)	—
Power handling (3)

Transducers

Dual concentric point source driver	1 x 165 mm (6.5″) Dual Concentric driver, using Omnimagnet technology
Low frequency	44 mm (1.75″) voice coil, treated multi fiber paper pulp cone
High frequency	25 mm (1.00″) PEI dome

Physical

Enclosure
Safety features	Safety ring located at rear of enclosure for load bearing safety bond
CMS 603ICT LS	UL 1480 UUMW certifi cation for Life Safety applications
Clamping design	Security toggle clamp Min / Max clamping range 9.5 mm (0.37″) / 60 mm (2.36″) Recommended clamp torque: 1.5 Nm
Backcan options
Cable entry options	Cable clamp & squeeze connector for conduit up to 22 mm
Conduit knockouts on PI Backcan	3 Sets of horizontal positions 19 / 22 / 28 mm (0.75″ / 0.87″ / 1.10″)
Connectors	Removable locking connector with screw terminals with “loop through” facility
Compliance	UL-1480, UL-2043, CE
Dimensions
Net weight (ea)
Included accessories	C-Ring, tile-bridge kit, paint mask, cut-out template, grille
Optional accessories	Plaster (mud) ring, Arco grille
Packed quantity	2
