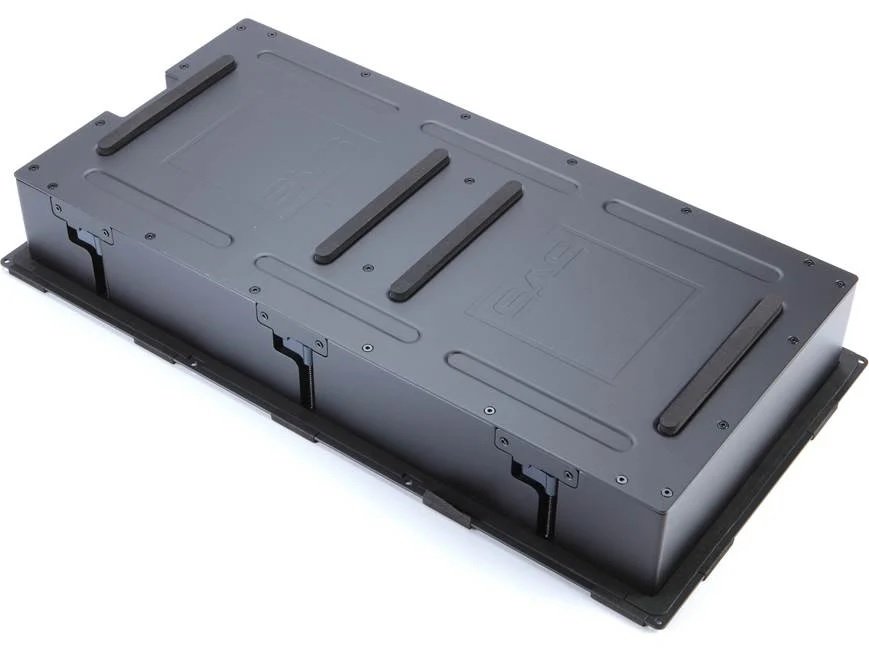

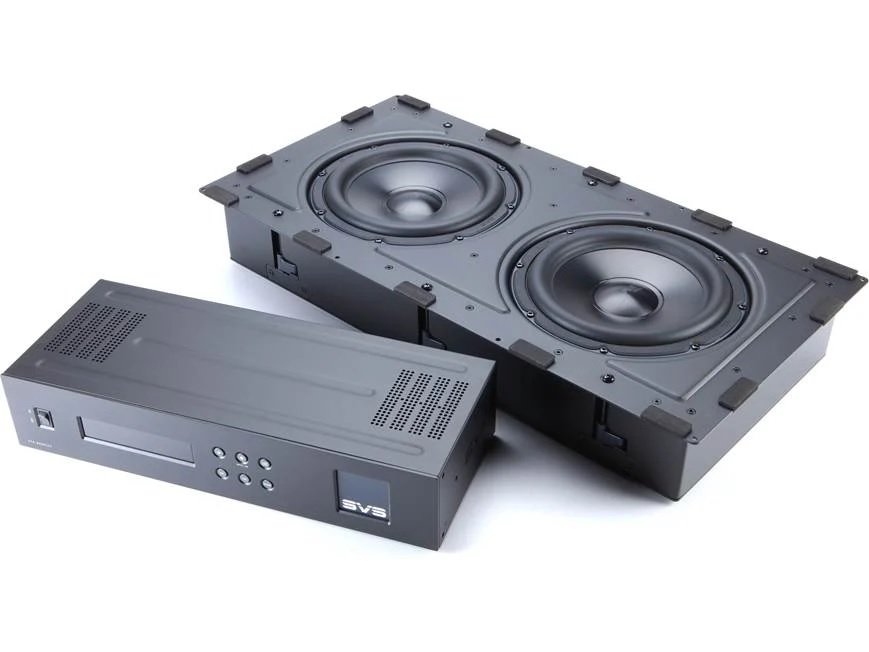

The SVS 3000 In-Wall Single Subwoofer System is a groundbreaking architectural bass solution engineered to deliver deep, room-filling low frequencies from within your wall cavity without taking up precious floor space. Designed for retrofit or new construction, it features dual active 9-inch high-excursion drivers and a specially developed Sledge STA-800D2C amplifier that provides 800 W RMS and over 2,500 W peak power, ensuring effortless, chest-thumping bass with precision and musicality. A high-resolution 50 MHz DSP engine offers advanced control over crossover, phase, EQ, and room gain, allowing custom tuning of the subwoofer’s output to perfectly integrate with your main speakers and room acoustics. The system is acoustically inert thanks to its ultra-rigid aluminum and MDF reinforced enclosure, minimizing distortion even at extreme output levels, while the paintable magnetic grille lets the subwoofer blend discreetly into your décor. With seamless smartphone app control and versatile installation options, the 3000 In-Wall Subwoofer brings reference-grade performance to home theatre and music systems with refined craftsmanship and engineering excellence.
Features
- Dual 9-inch high-excursion active drivers for massive low-frequency output
- Compact in-wall cabinet design requiring no floorspace
- Ultra-rigid aluminum and MDF enclosure with reinforced bracing
- 800 watts RMS, 2,500+ watts peak Sledge STA-800D2C amplifier with MOSFET output
- 50 MHz Analog Devices DSP for precise tuning and optimized response
- Bluetooth app control with multiple presets and EQ adjustments
- Paintable magnetic grille for discreet, customizable installation
- Available in single or dual subwoofer system configurations
- Rack-mount amplifier with advanced control interface
Specifications
| Brand | SVS |
| Model Name | 3000 In-Wall |
| Speaker Type | In-Wall Subwoofer |
| Drivers | Dual Active 9-Inch High-Excursion |
| Maximum Output Power | 800 Watts RMS / 2,500+ Watts Peak |
| Amplifier Type | Sledge STA-800D2C with MOSFET output |
| Frequency Response | 22Hz – 250Hz ±3 dB (In-Room LF: 19Hz) |
| Maximum SPL | 107.6 dB (single) / 110.6 dB (dual) at 32Hz |
| Cabinet Type | Sealed, in-wall design with reinforced bracing |
| Enclosure Dimensions (cabinet only) | 25” H x 12” W x 3.74” D |
| Exterior Dimensions (with grill) | 26.76” H x 13.76” W x 1.34” D |
| Exterior Dimensions (without grill) | 26.57” H x 13.58” W x 0.35” D |
| Weight | 25.5 lbs (with grill) / 23 lbs (without grill) |
| Amplifier Design | Rack-mountable 2U amplifier |
| DSP | 50 MHz Analog Devices Audio DSP |
| Connectivity | RCA, Wired |
| Control Method | App, Rear Panel |
| Wireless Communication | Bluetooth |
| Grille | Magnetically attached, paintable |
| Warranty | Full Warranty |
| Series | 3000 Series |
| Package Dimensions (single system) | 36.22” L x 20.20” W x 9.57” D (45 lbs) |
| Package Dimensions (dual system) | 37.20” L x 19.88” W x 15.94” D (62.5 lbs) |
