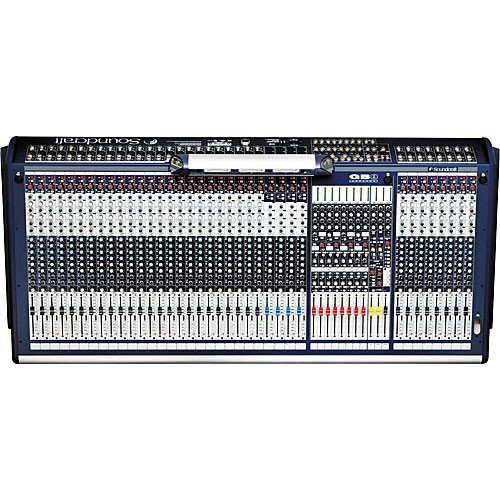

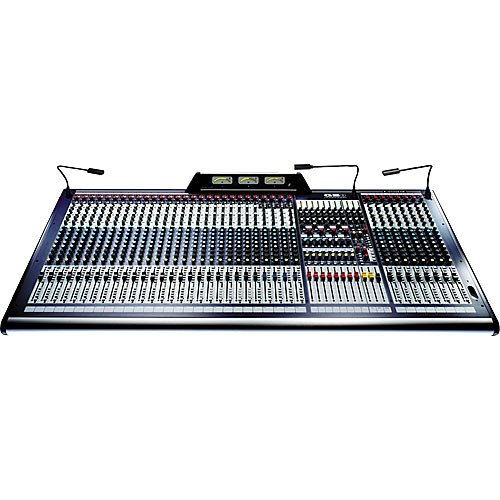

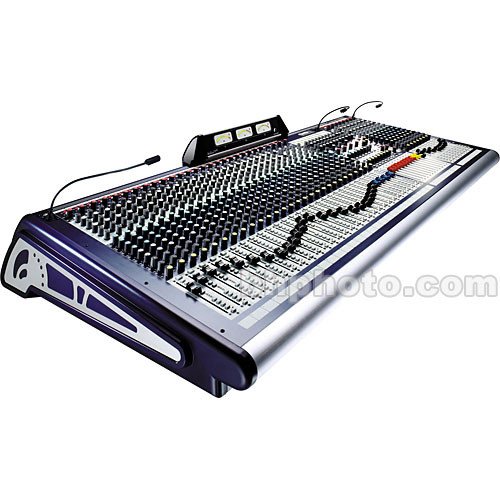

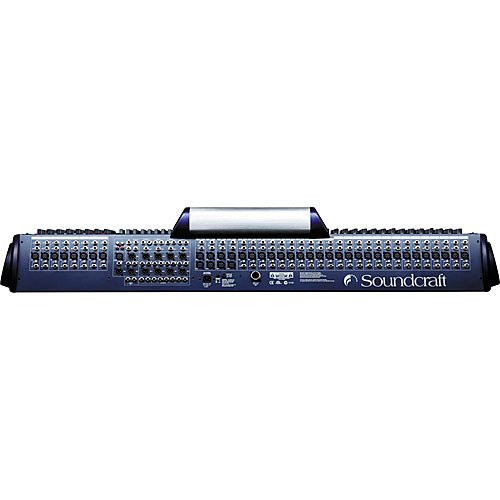

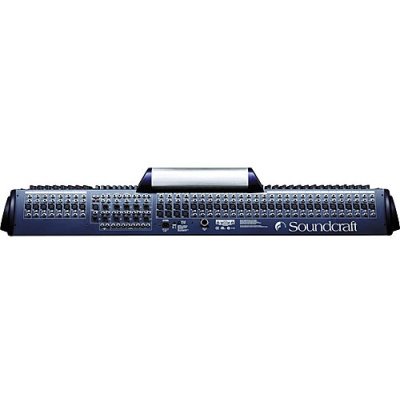

Soundcraft RW5696SM GB8 – 32ch Live Sound / Recording Console

The Soundcraft GB8-32 is a professional-grade 32-channel live mixing console engineered to meet the demands of front-of-house and monitor mixing in live sound environments. Perfect for venues ranging from intimate clubs to large auditoriums, this robust mixer offers exceptional audio fidelity, extensive routing flexibility, and the renowned GB30 preamps designed by Soundcraft’s founder, Graham Blyth.

Equipped with 32 mono microphone/line inputs and 4 additional stereo channels (ST1–ST4), the GB8-32 accommodates a wide range of input configurations. Each stereo input features L/R line-level jacks and XLR mic inputs for stereo mic setups—ideal for capturing ambient sound, stereo instruments, or group vocals. All mono channels include direct outputs for recording or external processing.

With 8 group outputs and a comprehensive matrix mixer, the GB8 allows for flexible routing to monitors, external recorders, and PA systems. The 8 auxiliary sends support effects and monitor routing, making the console suitable for complex stage setups. An integrated LED and VU meter bridge ensures precise level monitoring at a glance.

Whether for live concerts, houses of worship, or broadcast applications, the Soundcraft GB8-32 delivers performance, flexibility, and reliability in a sleek, ergonomic design.

Features:

• 32 mono mic/line inputs + 4 stereo line/mic channels

• GB30 preamps and EQ for premium audio performance

• 8 group outputs for versatile routing

• 8 auxiliary sends for monitors/effects

• Matrix output mixer for extended flexibility

• Direct outputs on all mono channels

• Integrated meter bridge with LED and VU meters

• Rugged construction for demanding live environments

• Ideal for FOH or monitor mixing in live venues

Specifications:
