Soundcraft RS2553SP ViO/D21 Dolby Decoder Card Dual Module Spares Kit Vi Option Card

The Soundcraft Vi Series offers a variety of optional interface cards designed to expand connectivity for Vi consoles, including the Vi1, Vi3000, and Vi5000 models, among others. These cards provide direct integration with multiple audio networks and external systems using industry-standard protocols. Whether for line input, output, microphone inputs, or digital interfaces, these cards ensure seamless communication across diverse audio equipment setups.

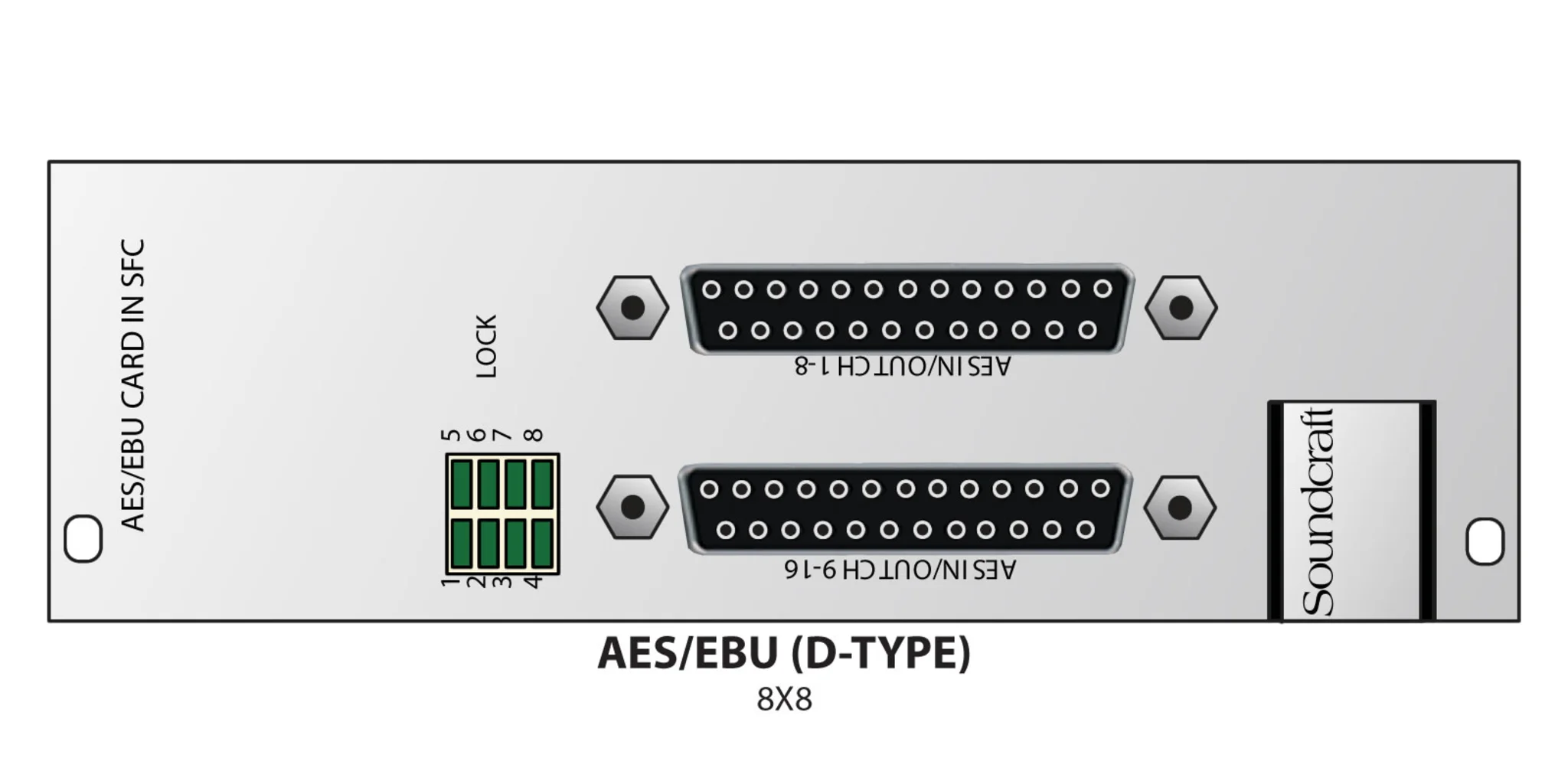

The line input and output cards, for instance, provide eight channels with high-quality A/D and D/A converters. The microphone input card, equipped with delta-sigma A/D converters, supports line and mic inputs with adjustable sensitivity and phantom power. For digital audio, the AES/EBU card enables 16-channel input and output, while the 3G SDI card allows de-embedding and re-embedding of audio from SDI streams.

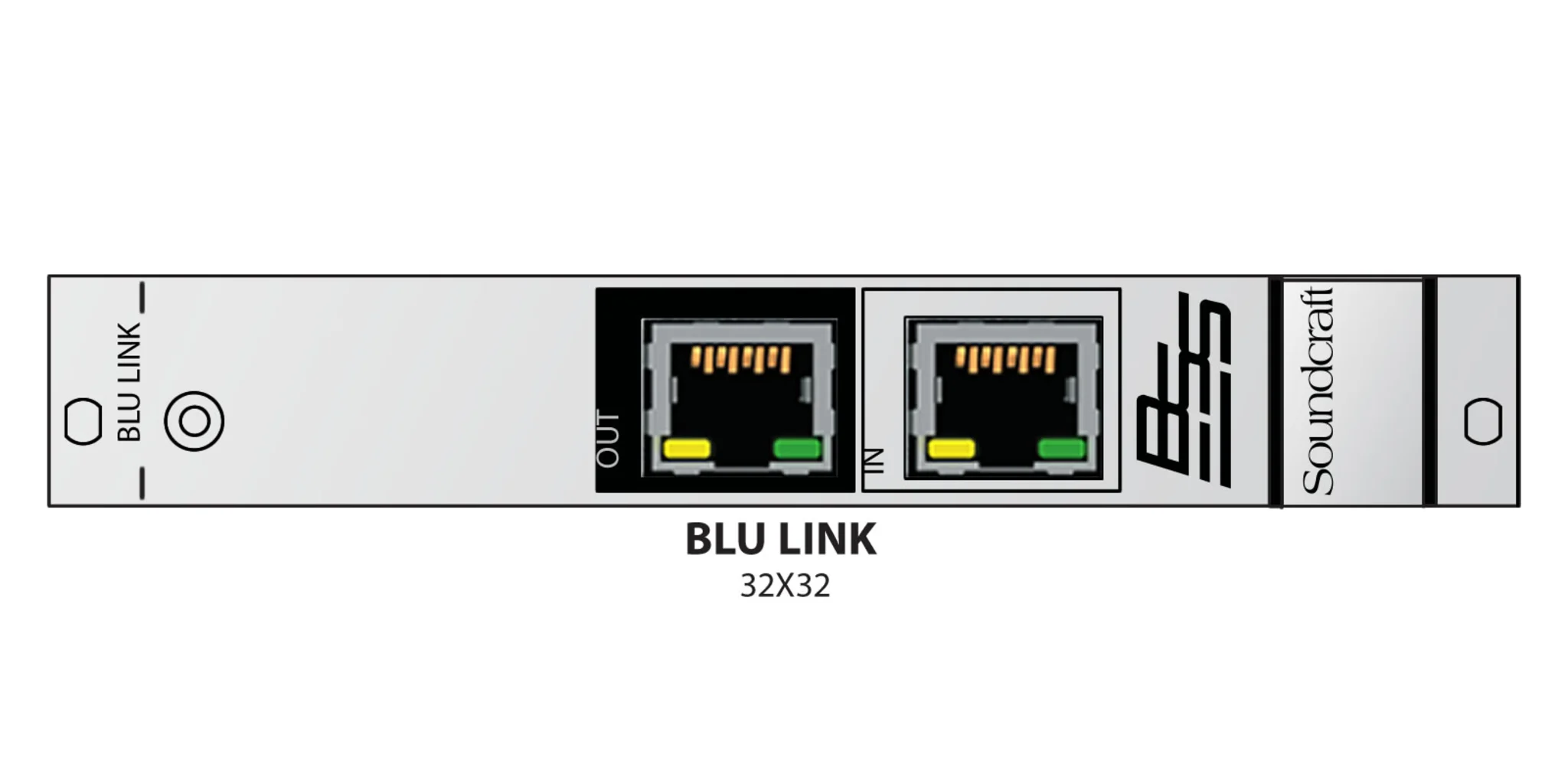

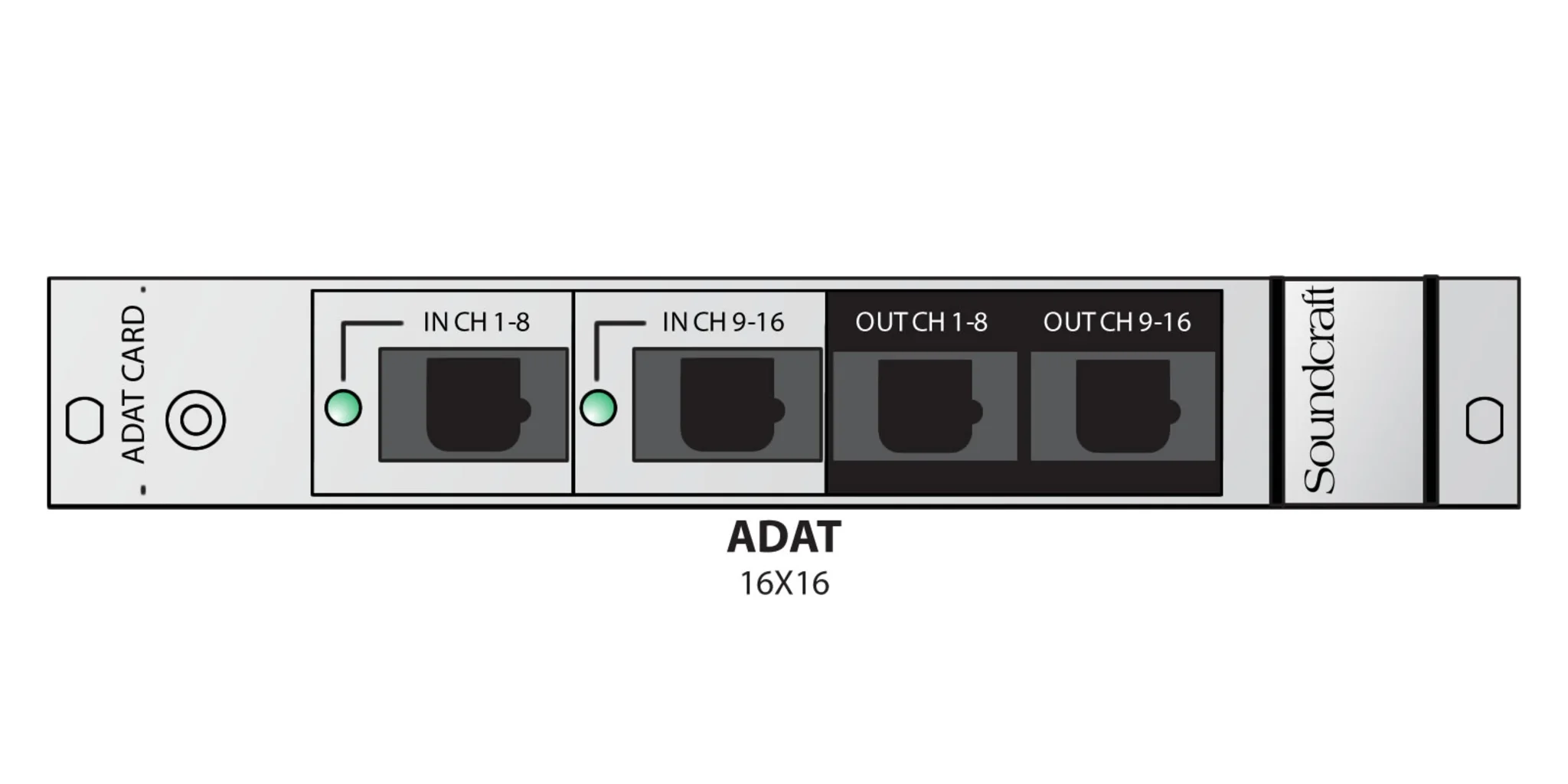

Additional interface options include the Dolby E card for decoding Dolby streams, ADAT cards for optical connections, and TDIF cards for TDIF I/O. The Dante card offers up to 64 channels of audio via a Dante network, and the Blu Link card connects up to 32 inputs and outputs via a BSS Blu Link ring, expanding system capabilities.

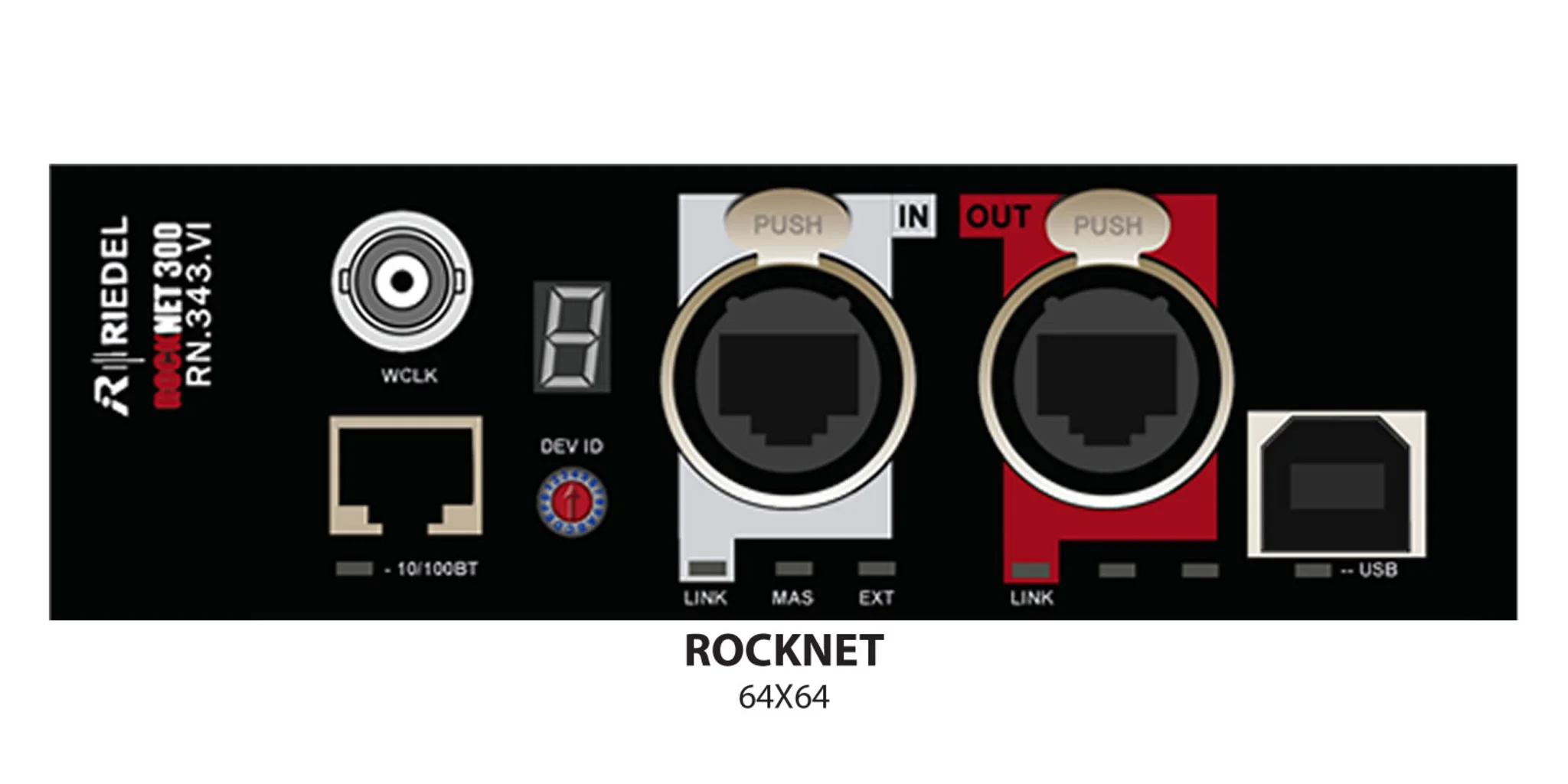

For professional environments, the Rocknet™ and CobraNet™ cards integrate Vi Series consoles with Riedel and CobraNet networks, respectively. Additionally, the MADI cards offer both Cat 5 and optical connectivity for audio transport over longer distances, ideal for large-scale installations. The GPIO card provides general-purpose switching for various applications, while the Vi Stagebox offers specialized mic and line input/output options.

With these options, the Soundcraft Vi Series can be tailored to meet the needs of various production and live sound environments, ensuring flexibility, scalability, and reliability.

Features:

• Supports multiple audio network interfaces including AES/EBU, Dante, MADI, ADAT, and more

• Compatible with Vi5000, Vi7000, Vi6, and other Vi Series consoles

• Provides both analog and digital I/O options for flexible system integration

• Includes specialty cards like 3G SDI, Dolby E, and Rocknet™ for specific audio and broadcast needs

• Redundant system setup options with robust connectivity for large-scale productions

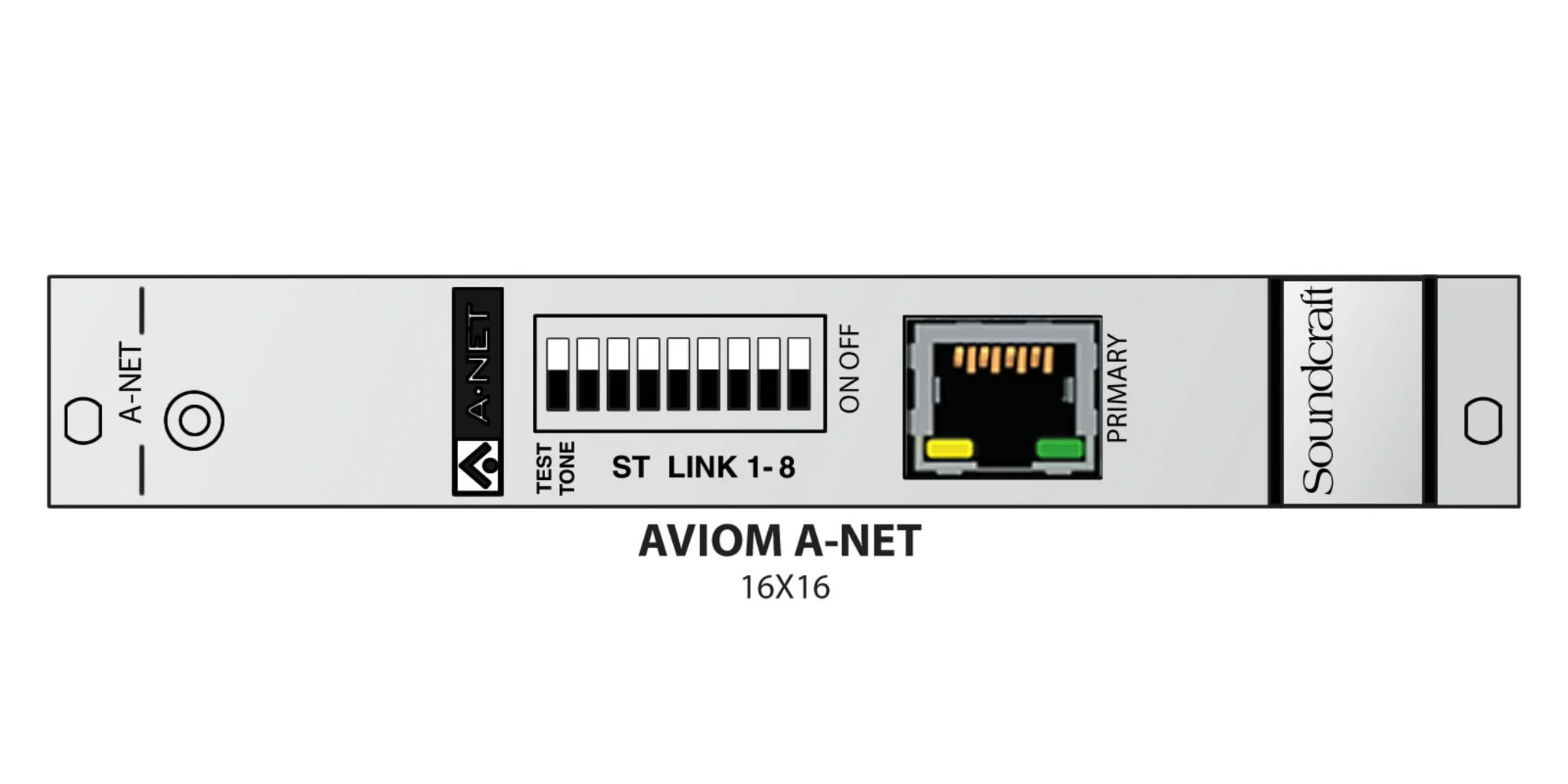

• Easily integrates with Riedel, Aviom, BSS Blu Link, and other professional audio systems

• Optional cards for increasing input/output channels in any Vi Series console setup

• Convenient 25-pin D-type and Toslink connectors for I/O connections

Specifications:
