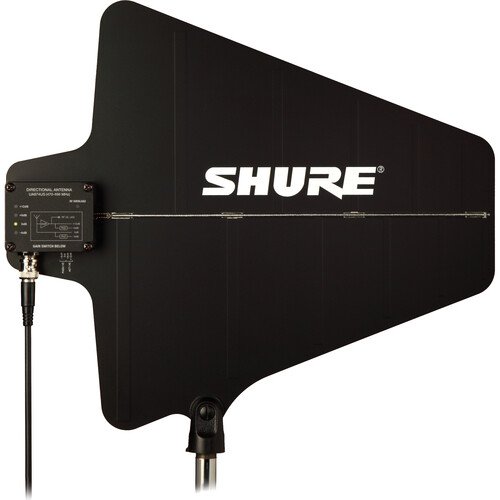

Shure UA874WB Wideband Active Directional Antenna (470 to 900 MHz)

Name: Shure UA874WB Wideband Active Directional Antenna (470 to 900 MHz)
Brand: Shure
SKU: UA874WB
Price: 1806.25 AED
Availability: InStock

Brand :

Sku: UA874WB

AED 1,806.25 Exc VAT

Available in stock

Features

Improve wireless signal reception for UHF wireless systems with the Shure UA874WB, a wideband active directional antenna with a frequency range extending from 470 to 900 MHz. The antenna uses a log periodic dipole array to produce a cardioid pattern towards the desired coverage area with greater rejection of RF signals outside the coverage area when compared to standard 1/2-wave omnidirectional antennas.

EAN: 42406256315

Compare Wishlist

Category: Microphone Accessories Brand: Shure

Description

An integrated amplifier with four gain settings compensate for varying degrees of coaxial-cable signal loss.

The UA874WB can be stand-mounted, suspended from the ceiling, or wall-mounted using the integrated swivel adapter bracket.

Features

Shure quality, ruggedness, and reliability
Compatible with Shure wireless receivers and antenna distribution systems that provide 10 to 15 VDC bias current
Four-position gain selector switch
Integrated threaded adapter mounts easily to microphone stands
Low-noise signal amplifier compensates for insertion loss in coaxial cable

Specifications

RF Frequency Range	470 to 900 MHz
Connector Type	BNC, Female
Impedance	50 Ohms
Reception Pattern	70°, 3 dB Beam Width
Third-order Overload Intercept Point	OIP3: >30 dBm
Antenna Gain	7.5 dBi, On Axis
Signal Gain	Switchable Active: +12 dB, +6 dB (±1 dB) Passive: 0 dB, -6 dB (±1 dB)
RF Overload LED Threshold	-5 dBm, RF Overload LED Does Not Operate for Passive Gain Settings
Power Requirements	10 to 15 VDC Bias from Coaxial Connection, 75 mA
Operating Temperature Range	0 to 145°F / -18 to 63°C
Storage Temperature Range	-20 to 165°F / -29 to 74°C
Dimensions	14.1 x 12.4 x 1.4″ / 359 x 316 x 36 mm
Weight	11.2 oz / 317 g
