Description

The Sennheiser XSW-D PORTABLE INTERVIEW SET is an easy entry point into the world of wireless microphone audio for vloggers, video shooters, and mobile journalists looking for a camera-mount system that’s cost effective, as well as quick and simple to use. It puts world-renowned Sennheiser sound quality in a plug-and-record, 1-button digital system that anyone can operate. Plug it in, power it up, and you’re immediately up and running, instantly lightening your workload so you can concentrate on creating.

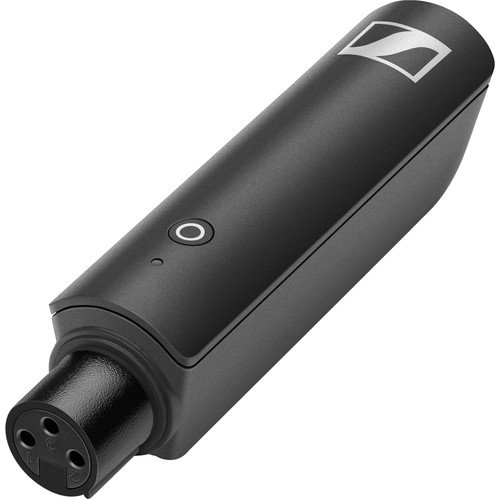

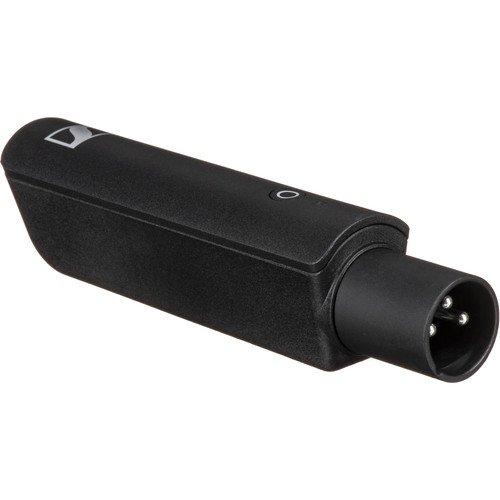

The XSW-D PORTABLE INTERVIEW SET is the choice for man-on-the-street interviews. This set comes with a plug-on transmitter that turns the handheld dynamic mic of your choice into a wireless microphone. Alternatively, you can use the transmitter with a self-powered shotgun mic for boom work.

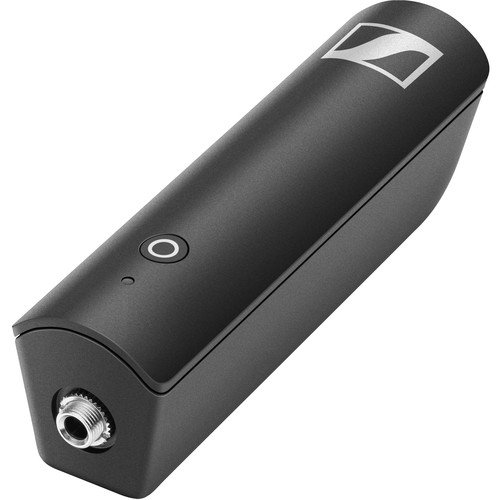

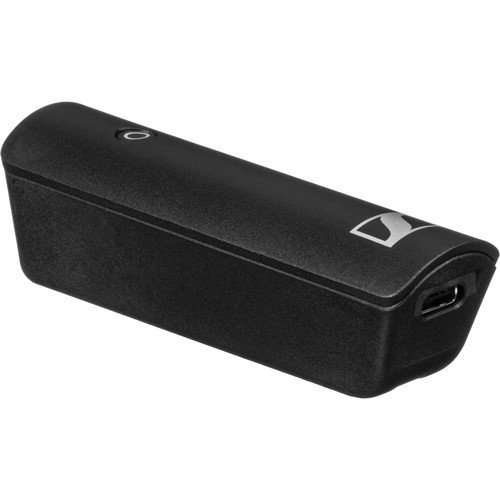

The camera-mount receiver connects to a DSLR, camcorder, or a tablet/smartphone (with additional adapter) to capture crisp-sounding interviews or dialog for video shoots.



FEATURES

  • Plug & Record Set for Vlogger
  • Use with Handheld Dynamic Mic
  • Miniature Plug-On Transmitter
  • Miniature Camera-Mount Receiver
  • Protected Peer-to-Peer Connection
  • Easy to Use, 1-Button Operation
  • 5-Hr Rechargeable Batteries + USB Power
  • Up to 5 Mics On Set / 250′ Range



SPECIFICATIONS

Key Specs
Wireless Technology
Digital 2.4 GHz
Diversity
Yes
Max Operating Range
250′ / 76.2 m
Receiver Type
1x Camera-Mount
Number of Audio Channels
1
Included Transmitters
1x Plug-On Microphone



System
Wireless Technology
Digital 2.4 GHz
Diversity
Yes
RF Frequency Band
2400 to 2483.5 MHz
Max Operating Range
250′ / 76.2 m
Max Transmitters per Band
5
Latency
< 4 ms
Encryption
No
Built-In Recorder
No
Timecode Support
No
Mobile App Compatible
No



Receiver
Receiver Type
1x Camera-Mount
Mounting Options
Shoe-Mount (with Included Hardware)
Antenna
1x Internal
Number of Audio Channels
1
Audio I/O
1x 1/8″ / 3.5 mm Locking TRS Unbalanced Output
Network I/O
No
USB/Lightning Connectivity
1x USB-C Female (Charging, Bus Power)
Frequency Response
80 Hz to 18 kHz
Display
Single-LED Indicators Only
Power Requirements
Battery, Bus Power (USB)



Transmitter
Included Transmitters
1x Plug-On Microphone
RF Output Power
10 mW
Antenna
Internal
Input Level
Microphone
Audio I/O
1x XLR 3-Pin Female Input
Bias/Plug-In & Phantom Power
Bias/Plug-In Power is Unspecified by Manufacturer
No Phantom Support
USB I/O
1x USB-C (Bus Power, Charging)
Muting
Off/On Switch
Auto-Level/Gain
No
Frequency Response
80 Hz to 18 kHz
Display
Single-LED Indicators Only



Power
Receiver Battery Type
1x Built-In Rechargeable – 850 mAh (Not Replaceable)
Receiver Battery Life
5 Hours (Lithium Rechargeable)
Transmitter Battery Type
1x Built-In Rechargeable – 850 mAh (Not Replaceable)
Transmitter Battery Life
5 Hours (Lithium Rechargeable)
Battery Charging Time
3 Hours
Input Power
5 VDC



Physical
Housing
Plastic
Dimensions
Receiver:
1.1 x 3.4 x 0.9″ / 28 x 86 x 24 mm
Transmitter:
1.1 x 3.4 x 0.9″ / 28 x 86 x 24 mm



Packaging Info
Package Weight
0.735 lb
Box Dimensions (LxWxH)
9.6 x 4.6 x 2.8″
