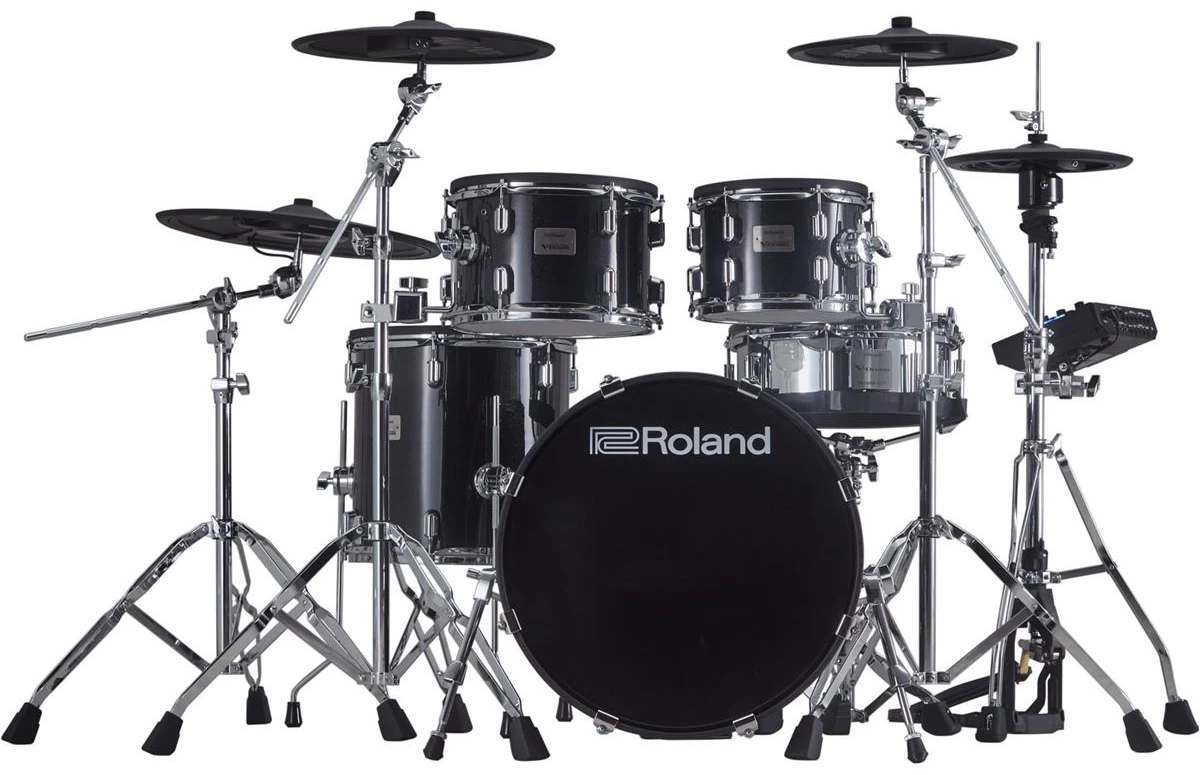

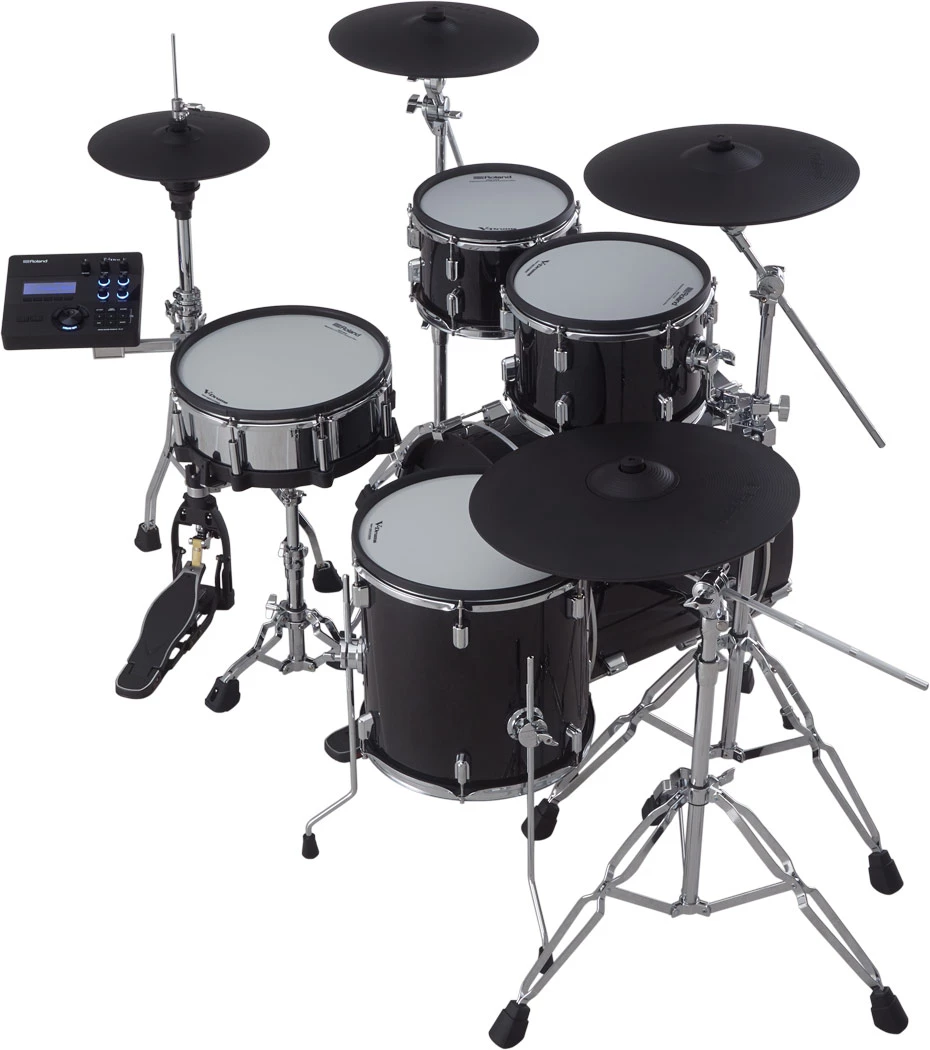

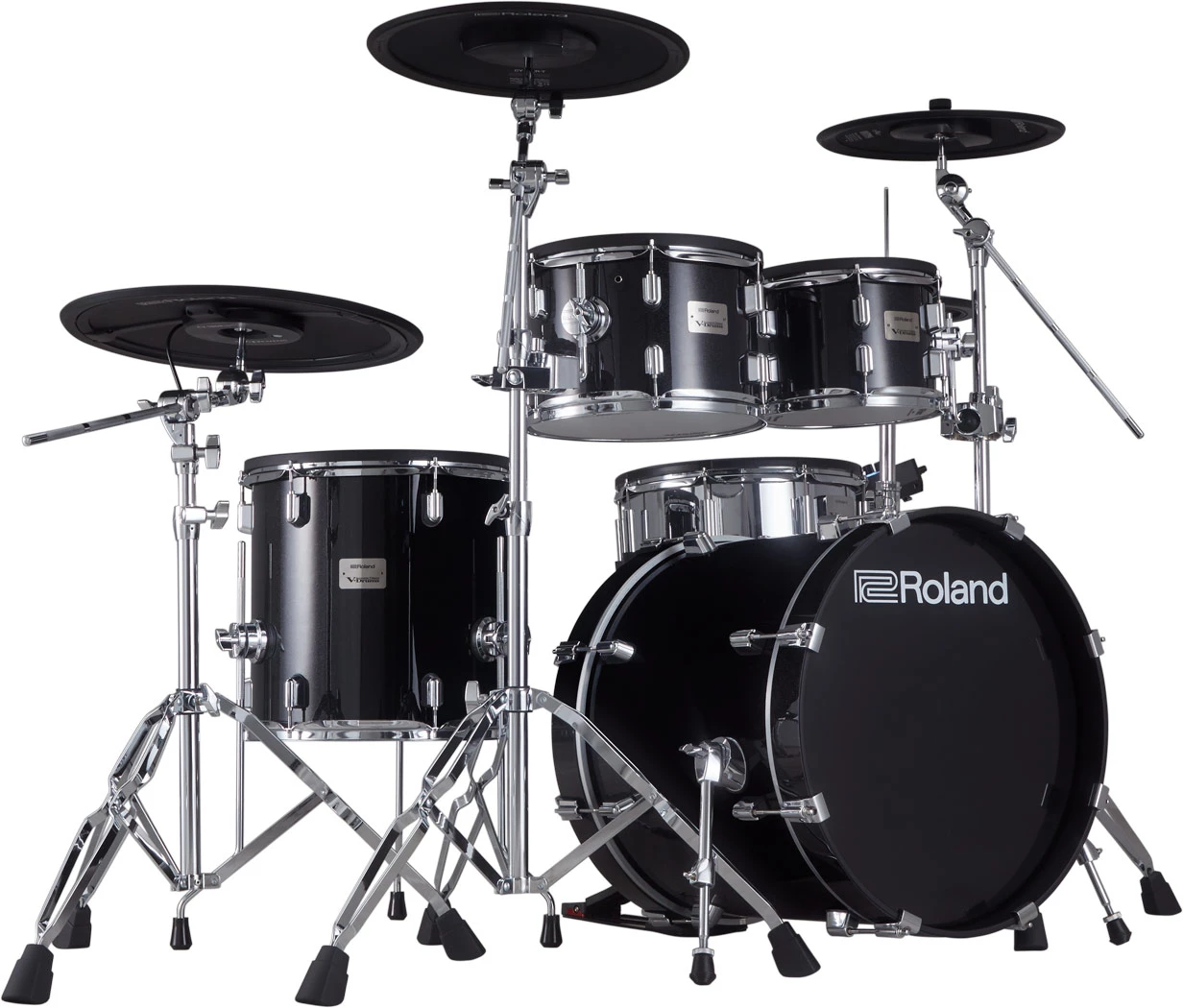

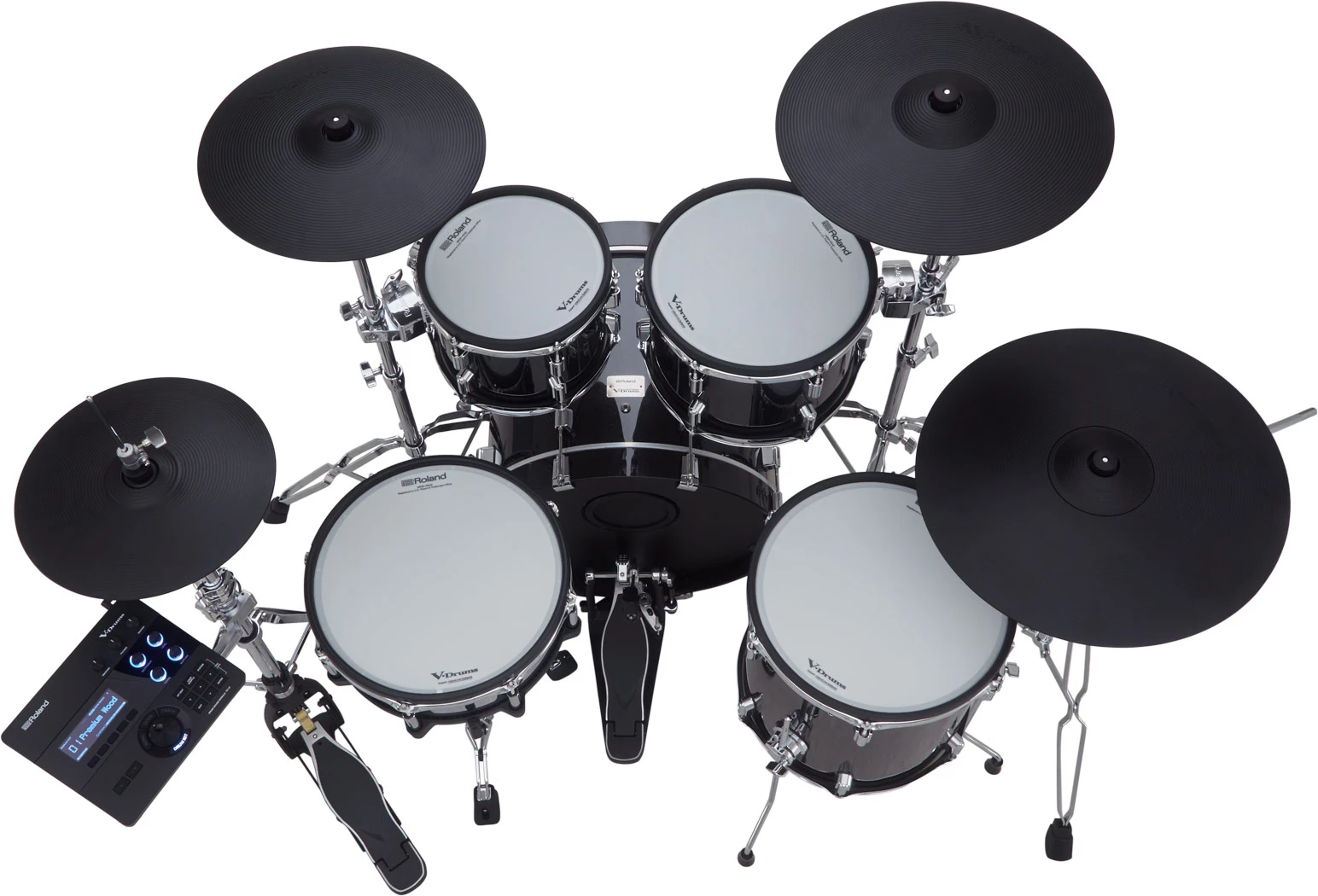

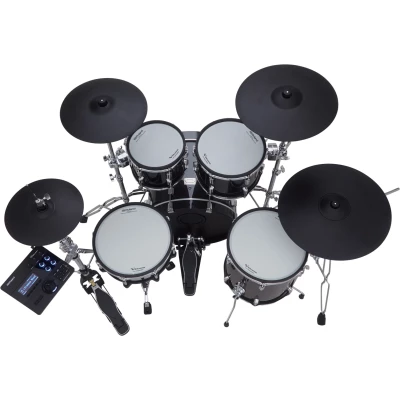

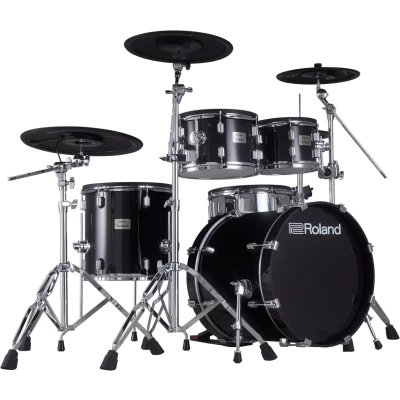

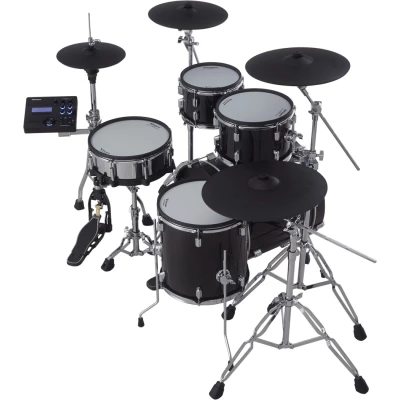

When you need the glamour and presence of a full acoustic drum set on stage—but with the convenience and control of electronic drums—the VAD506 is the perfect solution. This premium five-piece kit features wooden shells with full depth and diameter, exquisitely finished and mounted on double-braced chrome stands for a look that will have the audience convinced you’re playing acoustic drums. Roland’s advanced digital sensor technology and dynamic TD-27 drum module provide the sound and response to match, making sure every stroke, ghost note, roll, and swell is fully expressed in incredible detail.
Features
- Five-piece V-Drums Acoustic Design kit with full-size wood shells and double-braced chrome stands
- TD-27 sound module with advanced Prismatic Sound Modeling derived from the flagship TD-50
- 14″ PD-140DS digital snare and 18″ CY-18DR digital ride cymbal with high-resolution, multi-sensor triggering for unparalleled dynamics and accurate positional detection

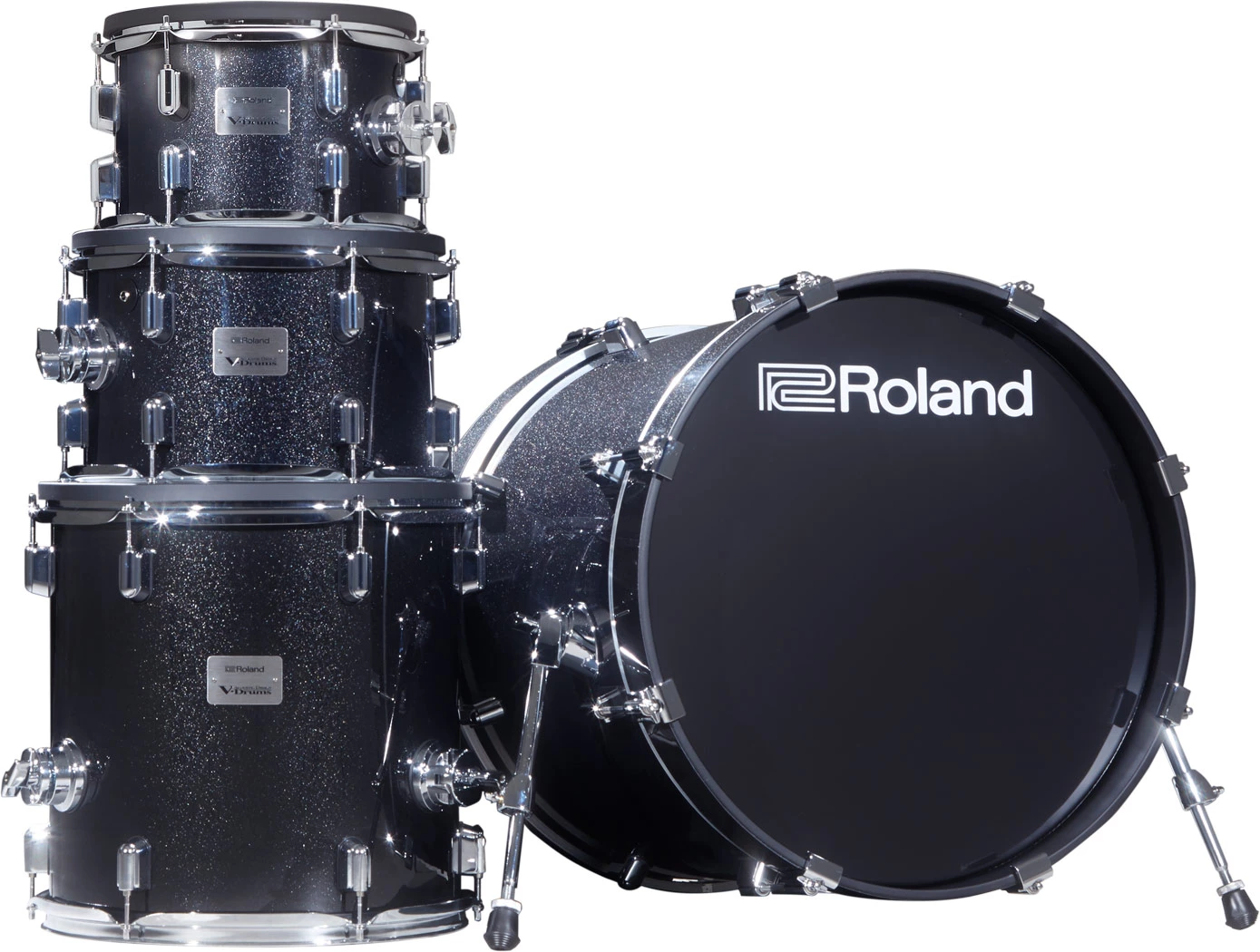

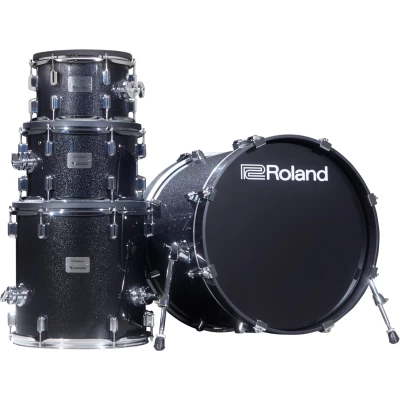

- 10″ PDA100-MS rack tom, 12″ PDA120-MS rack tom, 14″ PDA140F-MS floor tom, and 20″ KD-200-MS kick with custom chrome hardware and Midnight Sparkle wraps
- Additional cymbal pads include 12″ VH-10 V-Hi-Hat, 14″ CY-14C-T crash, and 16″ CY-16R-T crash/ride
- Drum in inspiring sound spaces with newly developed PureAcoustic Ambience Technology
- Hands-on interface for quick-and-easy selecting and personalizing drum sounds
- Import your own WAV samples via an SD card
- Stereo mix output and two assignable outputs for sending individual drum sounds to a PA mixer
- Integrated 28-channel USB audio interface for professional computer music production
- Three auxiliary trigger inputs for easy kit expansion
- Onboard Bluetooth for drumming with music from a smartphone or laptop
- Built-in practice functions for developing drumming skills
Specifications
| Kit Configuration | Drum sound module: TD-27 x 1 Snare: PD-140DS x 1 Tom1: PDA100-MS x 1 Tom2: PDA120-MS x 1 Tom3: PDA140F-MS x 1 Hi-hat: VH-10 x 1 Crash1: CY-14C-T x 1 Crash2: CY-16R-T x 1 Ride: CY-18DR x 1 Kick: KD-200-MS x 1 Drum combination stand: DCS-10 x 2 Drum boom stand: DBS-10 x 1 All purpose clamp: APC-10 x 1 |
| Drum Kits | Total: 100 Preset: 55 |
| Instruments | 728 |
| User Sample Import | Number of User Sample: Maximum 500 (Includes Factory Preloaded User Samples) Sound Length (Total): 24 Minutes in Mono, 12 Minutes in Stereo File Formats that Can Be Loaded: WAV (44.1 kHz, 16-/24-Bit) |
| Effect Types | Pad Compressor: Each Pad Pad Equalizer: Each Pad Overhead Mic Simulator Room/Reverb Multieffects: 3 Systems, 30 Types Master Compressor Master Equalizer |
| Song Player (SD Card) | File Format: WAV (44.1 kHz, 16-/24-Bit), MP3 |
| Recorder | Recording Method: Real-Time Maximum Length: 60 Minutes (Temporary Recording without SD Card: 3 Minutes) File Format: WAV (44.1 kHz, 16-Bit) |
| Bluetooth | Supported Standards: Bluetooth Ver 4.2 Supported Profile: A2DP (Audio), GATT (MIDI over Bluetooth Low Energy) Codec: SBC (Support to the Content Protection of the SCMS-T Method) |
| Display | 256 x 80 Dots Graphic Type LCD |
| Connectors | Trigger Input Connector: 1 x DB-25 Type (Kick, Snare, Tom1, Tom2, Tom3, Hi-Hat, Crash1, Ride, Ride Bell, Hi-Hat Control) Trigger In Jack: 4 x 1/4″ / 6.3 mm TRS Phone Type (CRASH 2, AUX1, AUX2, AUX3) Digital Trigger In Port: 3 x USB Type-A Master Out Jacks (L/MONO, R): 2 x 1/4″ / 6.3 mm Phone Type Direct Out Jacks (MONO): 2 x 1/4″ Phone Type Phones Jack: 1 x Stereo 1/4″ / 6.3 mm Phone Type Mix In Jack: 1 x Stereo 1/4″ / 6.3 mm Phone Type MIDI (IN, OUT/THRU): 2 x 5-Pin DIN USB Computer Port: 1 x USB Type-B Foot Switch Jack: 1 x 1/4″ / 6.3 mm TRS Phone Type DC In Jack |
| USB | Computer Speed: Hi-Speed USB Driver Mode: Generic, Vender Protocol: USB MIDI, USB Audio Audio Sampling Rate (Original): 44.1 kHz Sampling Rate (with Sampling Rate Converter): 96 kHz, 48 kHz Record: 28 Channels Playback: 4 Channels |
| Power Supply | AC Adapter: 9 VDC |
| Current Draw | 770 mA |
| Dimensions | 70.9 x 55.1 x 47.2″ / 180 x 140 x 120 cm (Including Kick Pad, Cymbals, Hi-Hat, and Drum Throne) |
| Weight | 114.6 lb / 52 kg |
Roland KD-200-MS V-Drums Acoustic Design 20″ Kick Drum Pad (Midnight Sparkle) Specs
| Shell | Diameter: 20″ / 50.8 cm Depth: 16″ / 40.6 cm |
| Finish | Midnight Sparkle (Wrap) |
| Trigger | 1 (Head) |
| Pedal | Single or Twin Pedal Acceptable |
| Connectors | Trigger Output Jack |
| Dimensions | 24.9 x 20 x 20.8″ / 63.3 x 50.7 x 52.8 cm |
| Weight | 24 lb / 10.9 kg |
Packaging Info
| Package Weight | 37.5 lb |
| Box Dimensions (LxWxH) | 25 x 24.63 x 23.25″ |
