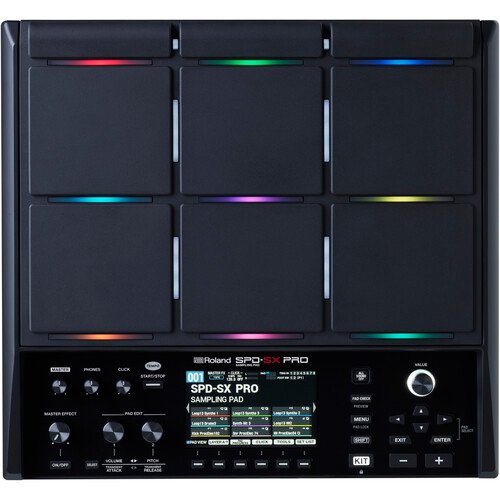

Easily sample, capture, assign, and play drum sounds and audio phrases on nine velocity-sensitive drum pads with the SPD-SX PRO Sampling Pad from Roland. Building on the capabilities of previous iterations, this flagship PRO edition features six large pads and three shoulder pads, along with improved playing response and customizable color LEDs. With an expanded internal memory, additional audio outputs and trigger inputs, and a 48 kHz audio playback engine, the SPD-SX PRO is ideal for home, studio, or stage applications.
Features
Storage & Sounds
- Equipped with 32GB of internal memory, the SPD-SX PRO supplies a massive selection of 1550 pre-loaded samples and 200 kit patches.
- In addition, you can load and play samples directly from its built-in USB ports, which support flash memory and mass storage drives along with MIDI and audio over USB.
- Use the dedicated SPD-SX PRO app from Roland Cloud to connect a computer and import audio files, assign samples to any pad, and organize them for easy access. Sample up to 60 minutes of external audio into the unit, or resample from the machine for up to 10 minutes—all at 16-bit / 48 kHz resolution.
Effects and Color LCD
- Once your samples have been loaded and are ready to be played, you can manipulate them with four parallel onboard multi-effect units.
- The SPD-SX PRO has 53 master effects including compressors, filters, delays, a looper, and built-in EQ. Dial up these effects and access all pertinent information on the high-contrast backlit color LCD, which provides easy-to-read data in most any environment.
Versatile & Expandable

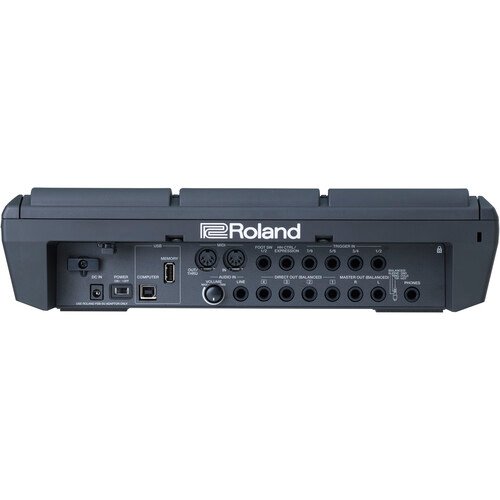

- Multiple I/O options are onboard to accommodate a wide variety of applications. The master out section includes two 1/4″ outputs for connection to mixers and amplifiers and one 1/4″ headphone jack. Four balanced 1/4″ direct outputs offer additional mixing flexibility.
- The input section includes 1/4″ left and right stereo/mono connectors with gain control as well as a footswitch input for connecting a kick trigger or various other pedals. In addition to the nine pads on the SPD-SX PRO, four dual-trigger inputs (four stereo 1/4″ TRS jacks providing a total of eight inputs) allow you to expand the playing field by connecting external pads or acoustic drum triggers.
- You can also access a limitless sound library with external sound modules via MIDI in and out while also using the SPD-SX PRO to control any MIDI compatible device or instrument.
Additional Features
- High-visibility, horizontal and vertical LEDs with multicolor customization
- Increased shoulder pad sensitivity and improved crosstalk performance
- 4.3-inch color display for easy navigation and viewing during performance
- Import 48/44.1 kHz (16-/24-/32-bit) WAV/AIFF files and MP3s (32 to 320 kb/s) with automatic conversion to 48 kHz / 16-bit upon loading
- 16-step pad sequencer function
- Onboard effects engine with up to four effects in parallel
- Side chaining with output routing
- Built-in click/metronome
- Create in real time by recording performances as WAV files and assigning them to pads
Specifications
| Item Type | Sample Triggering Pad |
| Sound Generation | Sample Based |
| Number of Pads | 9 x Velocity-Sensitive Pad (with LED Indicators) |
| Display | 4.3″ / 10.9 cm Color LCD |
| AD/DA Conversion | 16-Bit / 48 kHz |
| Standalone Operation | Yes |
Sounds
| Number of Sounds, Kits, or Samples | 200 x Factory Drum Kit |
| Drum Sounds | 1550 x Hit |
| Number of Song Presets | None |
| Set Lists & Kit Chaining | 32 x Set List |
| Maximum Polyphony | 32 Voice |
| Internal Memory | 32 GB |
| Sampling Formats | AIFF, MP3, WAV – 48 kHz / 16-Bit |
| Maximum Sample Length | 60 Minutes per Sample |
| Built-In Effects | Yes |
| Built-In Speakers | None |
Sequencing & Recording
| Sequencer | None |
| Audio Recording Formats | WAV: 48 kHz / 16-Bit |
| Max Audio Recording Time | 10 Minutes per File |
Connectivity
| Audio I/O | 1 x 1/4″ TRS Unbalanced Stereo Headphone Output 2 x 1/4″ TRS Balanced Main Output (1 Stereo Pair) 4 x 1/4″ TRS Balanced Sub Output 1 x 1/4″ TRS Unbalanced Stereo Line Input |
| Trigger Device & Pedal Inputs | 4 x 1/4″ TRS Drum Trigger Input |
| Phantom Power | 48 VDC, Selectable On/Off |
| MIDI I/O | 1 x DIN 5-Pin Input 1 x DIN 5-Pin Output/Thru |
| CV/Gate I/O | None |
| Sync I/O | None |
| Network I/O | None |
| USB | 1 x USB-B (Host Connection, MIDI, USB Audio Output) 1 x USB-A (Device/Controller Connection) |
| Media/Memory Card Slot | None |
| Internal Drive Bays | None |
| Bluetooth | No |
Compatibility
| Included Software | None |
| Mobile App Compatible | Yes *As of December, 2022: Check with manufacturer for the most up-to-date compatibility |
Power
| Power Requirements | AC/DC Power Adapter (Included) |
| AC/DC Power Adapter | 12 VDC at 1500 mA (Included) |
| Current Consumption | 1500 mA |
Physical
| Color | Black |
| Included Accessories | None |
| Dimensions | 14.2 x 13 x 3.6″ / 36 x 33 x 9.2 cm |
| Weight | 6.6 lb / 3 kg (without AC Adapter) |
Packaging Info
| Package Weight | 10 lb |
| Box Dimensions (LxWxH) | 18.7 x 16 x 6.75″ |
