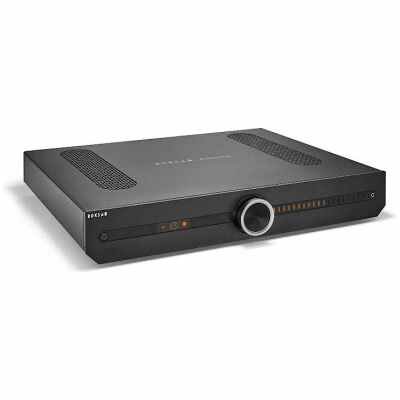

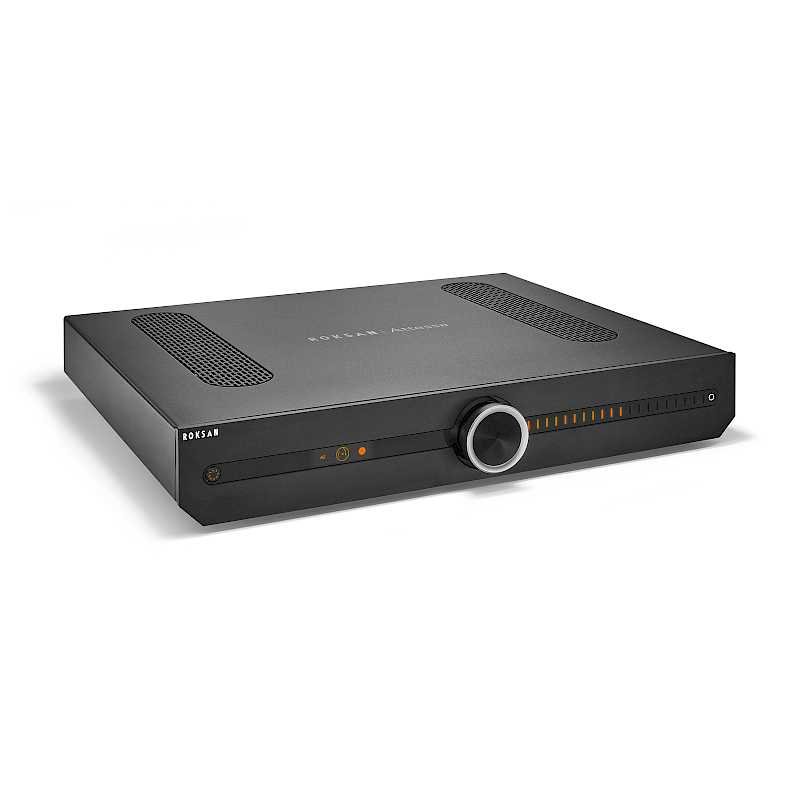

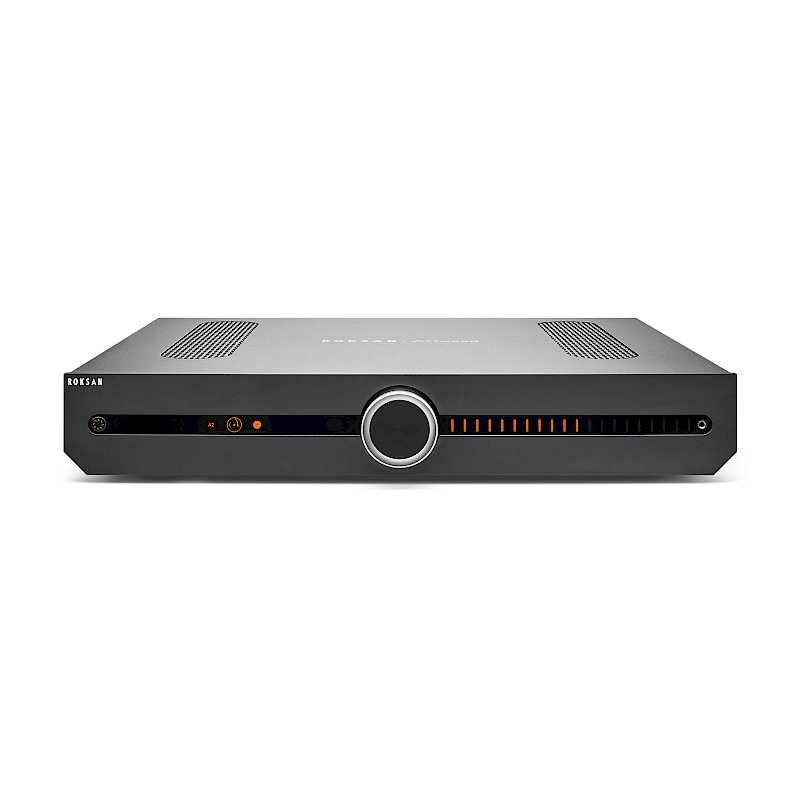

The Attessa Integrated Amplifier delivers a compelling performance through its innovative amplification architecture and advanced analogue connections; it is supremely capable of presenting a detailed, precise presentation of music from any source.
Its high-performance DAC is the foundation for Roksan’s revolutionary ’Rapture DAC’ technology found in the Caspian Series 4G. Thanks to the improved digital to analogue signal conversion and exceptional signal transfer, the amplification is free to deliver a powerful performance from whichever source a user decides to connect.

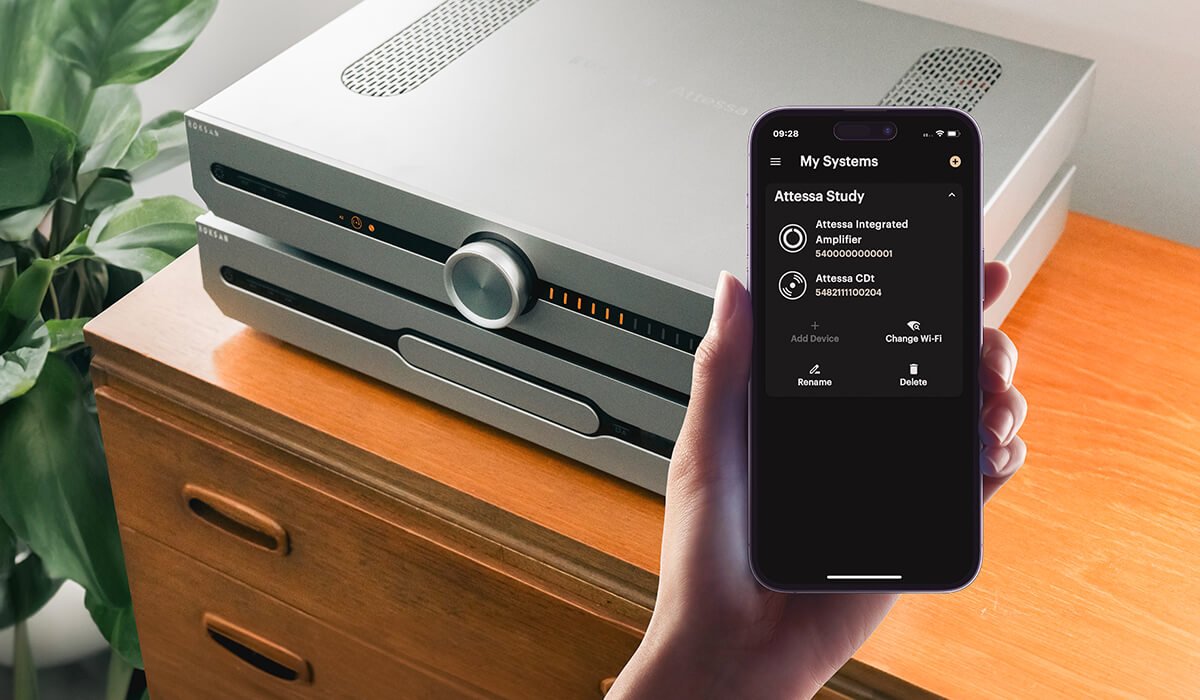

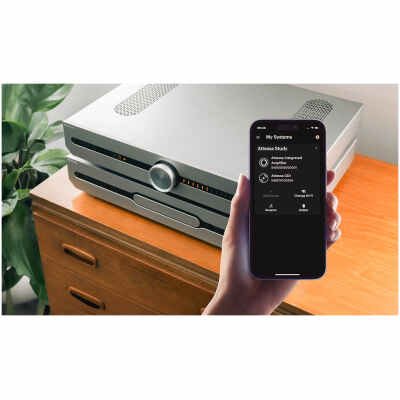

Set up via the intuitive MaestroUnite app, the Attessa Integrated Amplifier delivers extraordinary levels of detailed, high-fidelity sound straight from the box. Designed for the user.
FEATURES
- 80W per channel into 8Ω / 130W into 4Ω – High-performance Class AB amplification
- Built-in DAC – Supports high-resolution digital audio (up to 24bit/192kHz via coaxial)
- Phono Stage (MM) – Connect your turntable directly (RIAA equalised)
- Bluetooth Connectivity – Stream music wirelessly via SBC, aptX & AAC codecs
- MaestroUnite App Control – System setup, over-the-air updates, and advanced settings via Wi-Fi
- Dynamic Control Dial – Haptic feedback dial for intuitive input and volume control
- Multiple Digital & Analogue Inputs – 5x digital and 3x analogue inputs including AV and phono
- Premium Build Quality – Steel chassis and anodised aluminium front panel
- Headphone Output – High-power 3.5mm jack for all headphone types, including high-impedance models
- Pre-out / Subwoofer Out – Expand your system with additional amplification or subwoofer
APPLICATION
- High-End Home Audio Systems – Designed for audiophiles seeking top-tier stereo performance
- TV & Multimedia Integration – Optical input for TVs with dedicated TV input
- Headphone Listening – Suitable for casual or serious listening with high-impedance headphones
- Vinyl Playback – Integrated phono stage for direct connection to turntables
- Wireless Music Streaming – Bluetooth audio streaming from smartphones or tablets

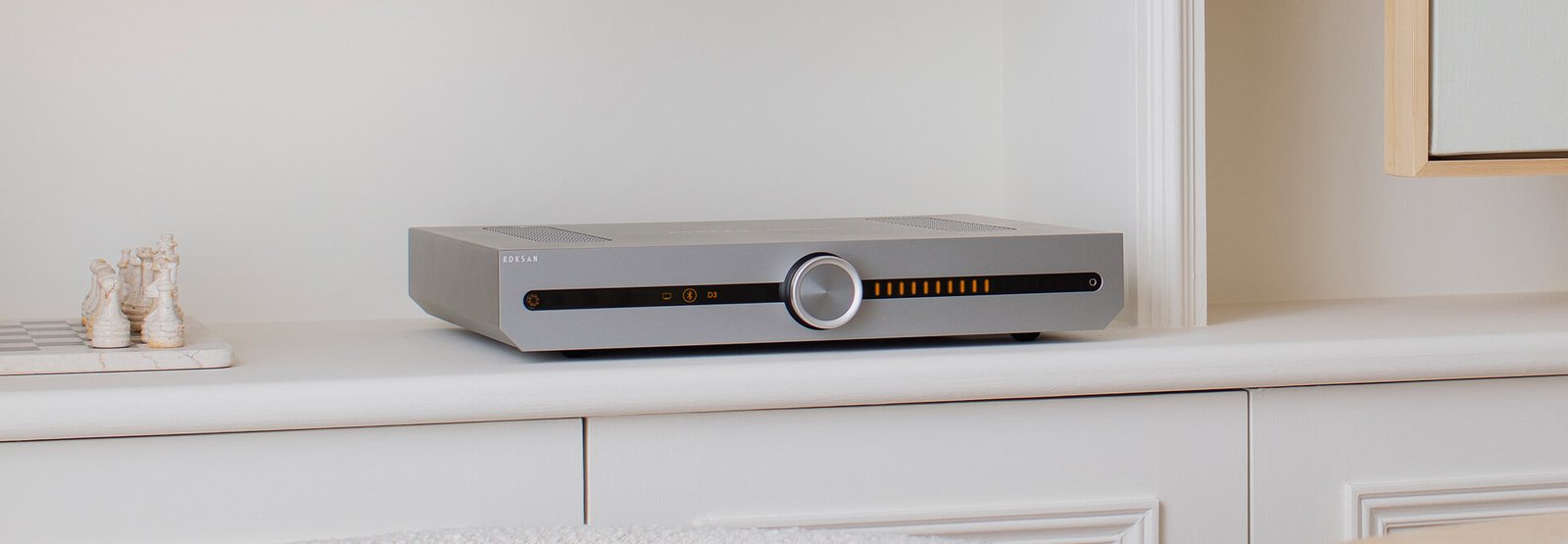

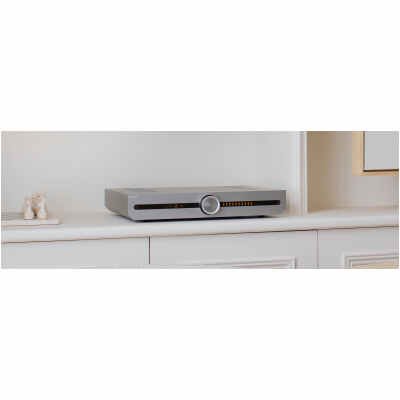

- Modern Living Spaces – Sleek design that fits beautifully in contemporary home interiors
SPECIFICATIONS
Power Output into 8 Ohm
- 80W Both Channels Driven, Nominal (THD+N <0.1%)
Power Output into 4 Ohm
- 130W Both Channels Driven, Nominal (THD+N <0.1%)
Inputs (Digital)
- Digital 1 (D1) – Coax SPDIF (up to 192kHz/24bit)
- Digital 2 (D2) – Optical SPDIF (max. 96kHz/24bit)
- Digital 3 (TV) – Optical SPDIF (max. 96kHz/24bit)
- Digital 4 (CD) – Coax SPDIF (up to 192kHz/24bit)
- Digital 5 (Bluetooth) – Bluetooth (48kHz/16bit)
Inputs (Analogue)
- A1 – No signal sense
- A2 – With signal sense & used for AV Mode
- MM (Phono) – RIAA (equalised)

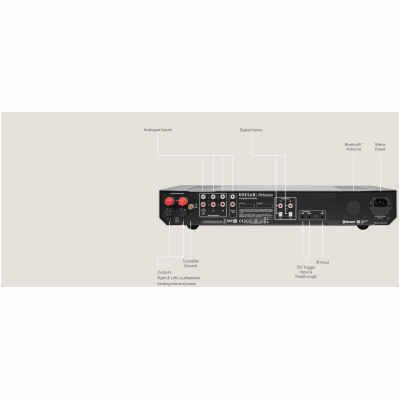

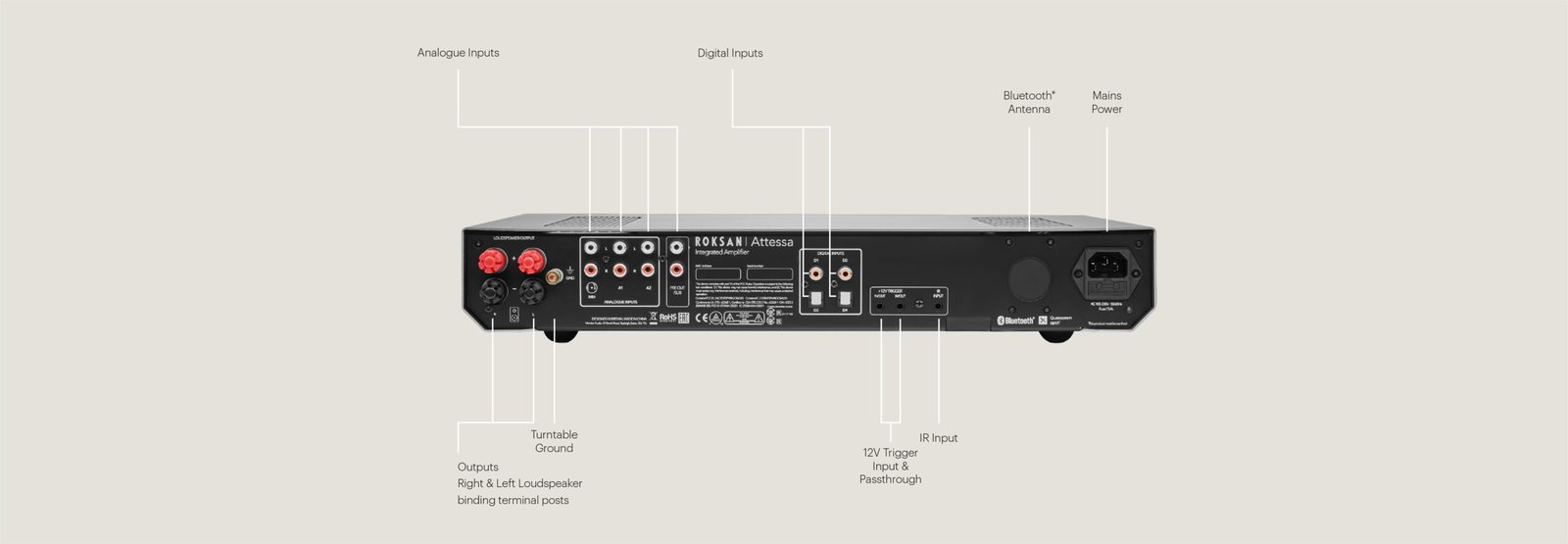

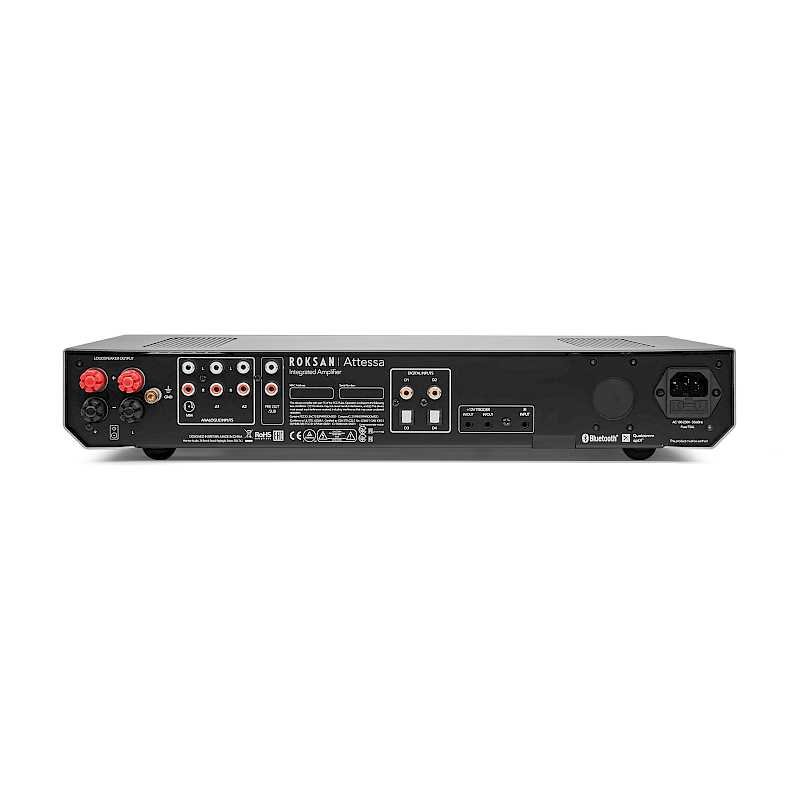

Outputs
- 1x pair Speaker binding posts (L&R)
- 1x pair of RCA Analogue (Pre-out/SUB)
- 3.5mm Stereo mini-jack headphone socket – 7.5Vrms drive suitable for all headphone types including high-impedance
Other
- IEC mains power socket (3 pin)/Fuse holder
- 3.5mm mini-Jack – 12v trigger Input (On / Standby)
- IR wired input 3.5mm jack
Construction
- Formed Plated steel and bespoke machined anodised aluminium front panel.

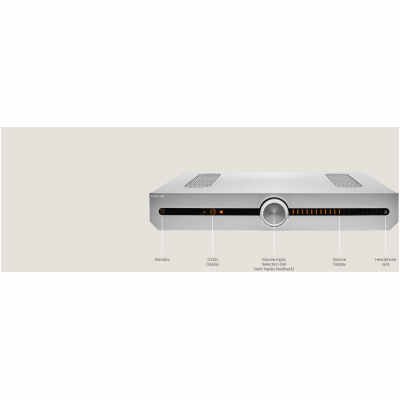

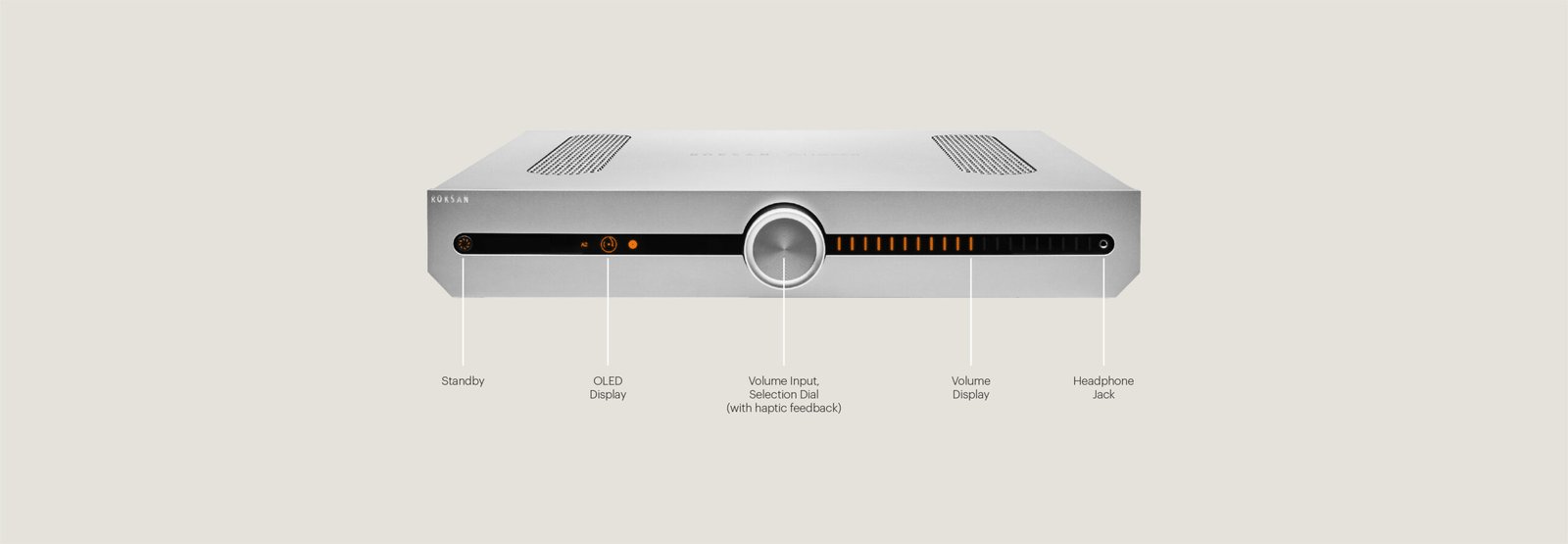

Primary Interface (on unit)
- Dynamic Control Dial (with haptic feedback) to control volume and inputs
Secondary Interface (on unit)
- Standby, Backward, Play/Pause, Forward
Other Interface

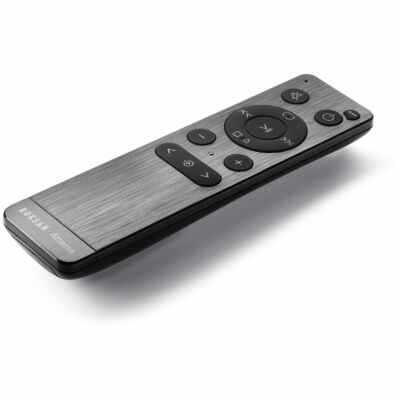

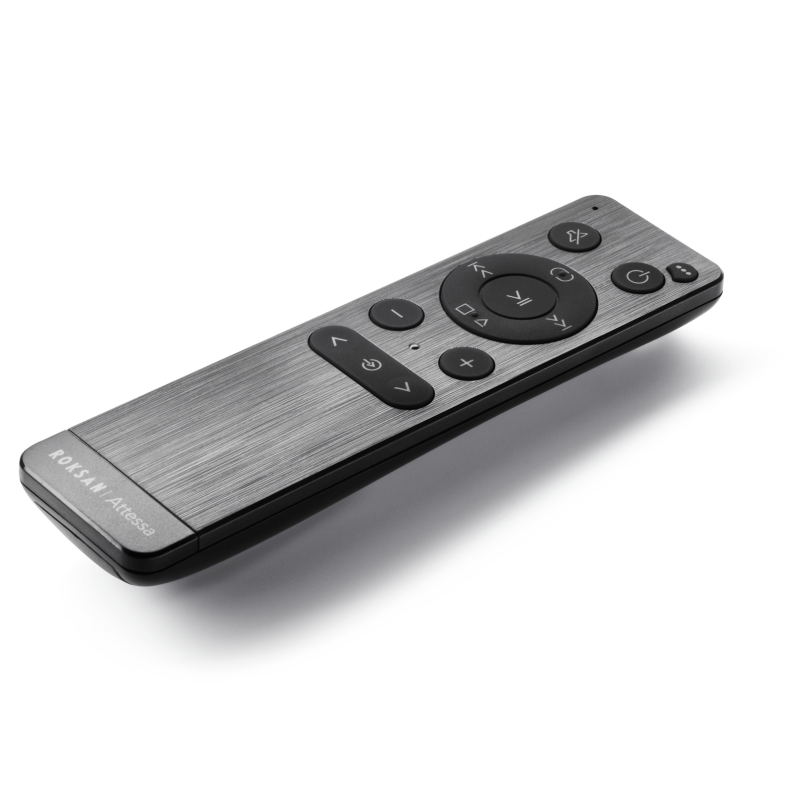

- IR remote
Bluetooth
- A2DP Audio profile /
- Codecs – SBC, aptX & AAC
- Bluetooth Range – 15m (typical)
Digital Coax Input
- up to 24bit/192kHz PCM
Digital Optical Input
- up to 24bit/96kHz PCM
MaestroUnite
- System Creation and Control
- Advanced System Setting
- Over the Air Updates via Wi-Fi
Mains Transformer Rating
- 400VA
Dimensions (Including Encoder and Connections (W x H x D))
- 432 x 76 x 373 mm
Dimensions (Excluding Encoder and Connections (W x H x D))
- 432 x 76 x 346 mm
Weight
- 10.37 kg (22 lb 14 oz)
