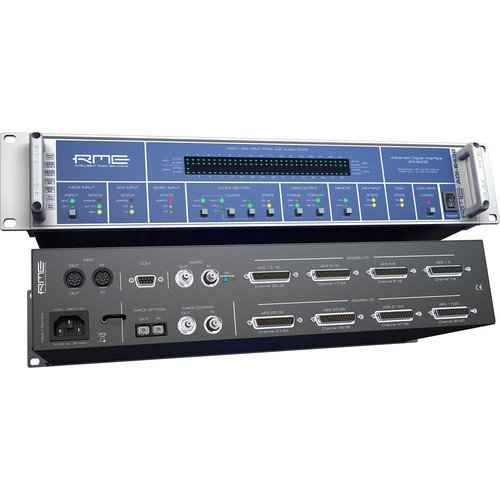

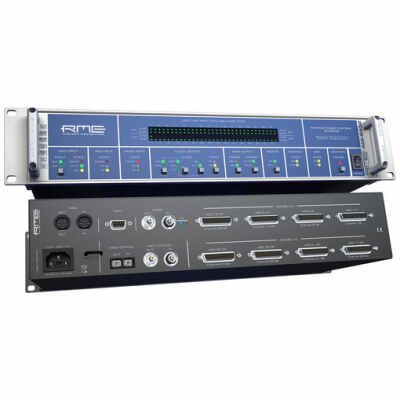

RME ADI-6432R - Bidirectional MADI/AES Format Converter

RME ADI-6432R – Bidirectional MADI/AES Format Converter

Name: RME ADI-6432R - Bidirectional MADI/AES Format Converter
SKU: ADI-6432 R
Price: 16523.81 AED
Availability: InStock

Brand : RME

Sku: ADI-6432 R

Available on backorder

Features

The RME ADI-6432R is a professional-grade bidirectional MADI/AES-3id format converter designed for demanding broadcast and live sound applications. It facilitates seamless conversion between MADI and AES-3id (coaxial AES/EBU) formats, supporting up to 64 channels at 24-bit/192 kHz. Equipped with dual redundant power supplies and BNC connectors, the ADI-6432R ensures reliable operation in critical environments. Its comprehensive connectivity includes optical and coaxial MADI I/O, 64 AES-3id channels via BNC, MIDI and RS-232 data transfer over MADI, and word clock synchronization. The unit features RME's SteadyClock™ technology for superior jitter reduction and clock regeneration, along with intuitive front panel status displays for real-time monitoring. Ideal for use as a digital multicore solution or as an AES-3id frontend for MADI interfaces, the ADI-6432R offers robust performance and flexibility for professional audio setups.

EAN: 874792004412

Request for Quote

Compare Wishlist

Category: Audio Video Interfaces Brand: RME

Description
Reviews (0)

Description

The ADI-6432R from RME is 64-channel format converter, that features conversion from MADI to AES/EBU, and vice versa. MADI handles 64 channels of 24-bit audio at sampling frequencies up to 48kHz, 32 channels up to 96kHz and 16 at 192kHz. Dual redundant power supplies offer fail-safe operation for broadcasters and other professionals.

All channels are transferred across a single cable, using either a coaxial (BNC) or optical network cable. Typical applications could include two units for use as a digital multi-core, or a single unit used as AES/EBU front end for the Hammerfall DSP MADI PCI card.

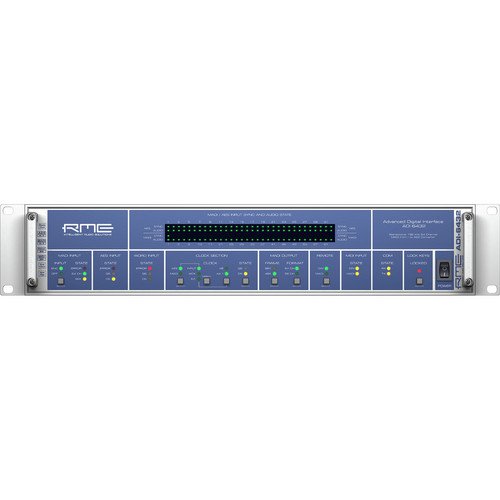

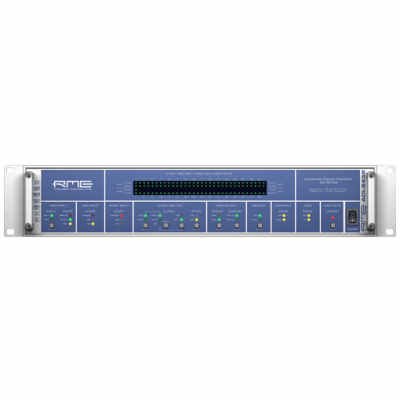

The unit features RME’s SteadyClock, which provides very low jitter operation. Intelligent Clock Control retains the last valid sample frequency in case of a loss of the input signal. The front panel contains almost 100 LEDs for accurate and exact display of signal status. Errors can be spotted instantly and corrected, and the control keys can be locked to prevent accidental changing of settings.

FEATURES

SPECIFICATIONS

Key Specs

Form Factor	Rackmount
Converter Type	Format Converter
Number of Channels	64
Analog Audio I/O	No

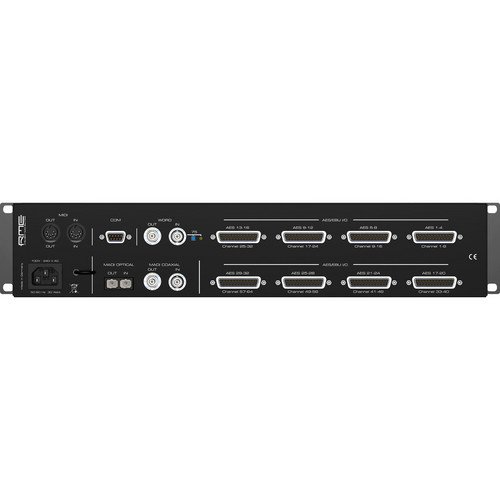

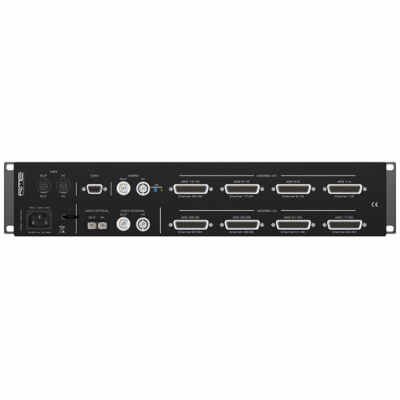

Digital Audio I/O	4x DB-25 AES3 / S/PDIF Input (Transformer Balanced) 1x SC-Plug Optical MADI Input 1x BNC Coaxial MADI Input 4x DB-25 AES3 / S/PDIF Output (Transformer Balanced) 1x SC-Plug Optical MADI Output 1x BNC Coaxial MADI Output

Converter Type	Format Converter
Number of Channels	64
Conversion Formats	AES3, MADI (Coaxial), MADI (Optical)

Connectivity

Analog Audio I/O	No
Digital Audio I/O	4x DB-25 AES3 / S/PDIF Input (Transformer Balanced) 1x SC-Plug Optical MADI Input 1x BNC Coaxial MADI Input 4x DB-25 AES3 / S/PDIF Output (Transformer Balanced) 1x SC-Plug Optical MADI Output 1x BNC Coaxial MADI Output
Sync I/O	1x BNC Word Clock Input 1x BNC Word Clock Output
MIDI I/O	1x DIN 5-Pin Input 1x DIN 5-Pin Output
Other I/O	1x DE-9/DB-9 RS-232 Input

Digital Audio

Sample Rates	44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
Sync Sources	AES3, Internal, MADI, Word Clock
Clocking	Internal: Jitter: < 1 ns Word Clock: Lock Range: 27 to 200 kHz Jitter: < 2 ns AES: Lock Range: 28 to 200 kHz Jitter: < 2 ns MADI: Lock Range: 32 to 192 kHz External: Jitter Suppression: > 30 dB (2.4 kHz)
