Description

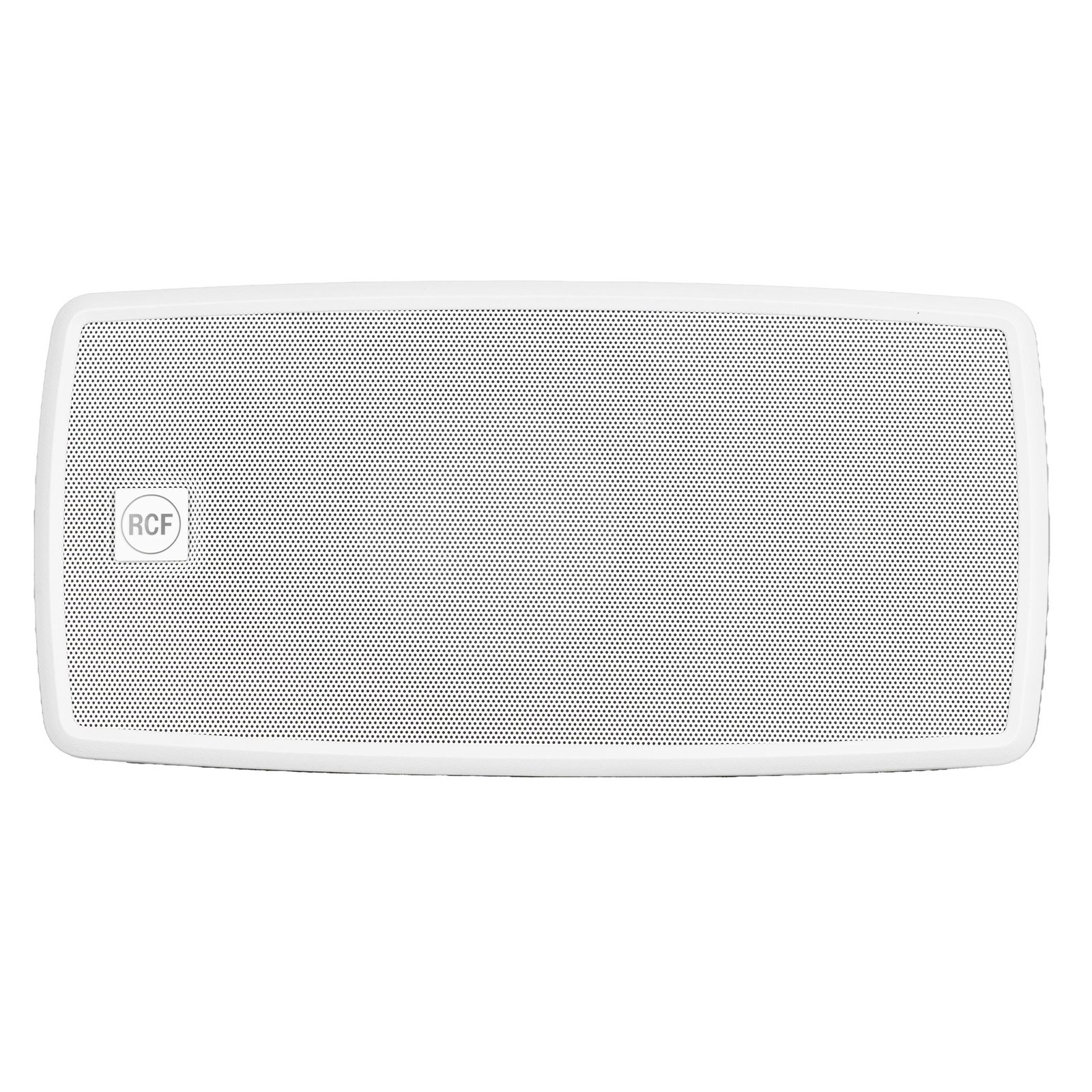

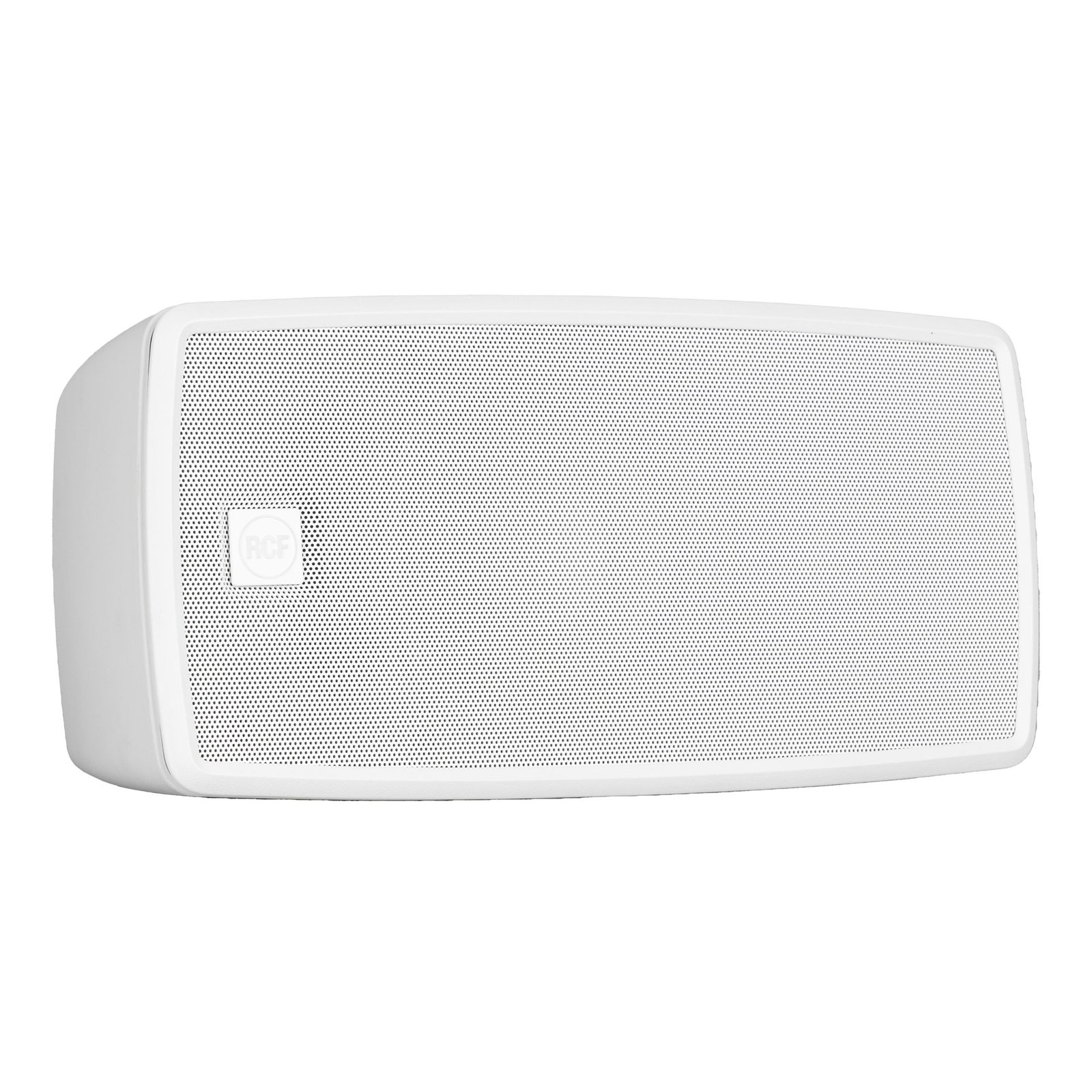

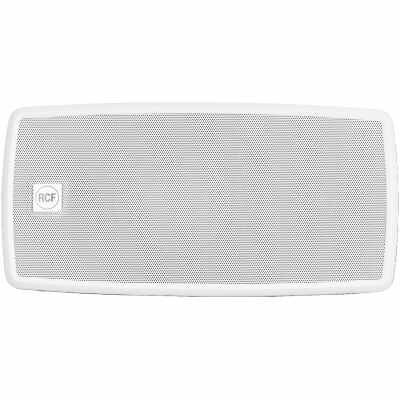

The WMR 50T W is a compact two-way wall-mounted speaker designed for versatile use in various environments. Its sleek white design complements any interior while delivering clear and precise sound across a wide frequency range. The speaker features a 5″ woofer and a 1″ neodymium dome tweeter, providing balanced sound reproduction with a wide 140° x 100° coverage angle. Installation is simple and fast, thanks to the integrated connection board inside the included wall bracket, allowing adjustment of tilt and quick connection without special tools.



Features



  • 40W RMS power handling

  • 110 dB maximum sound pressure level

  • Frequency response from 80 to 20000 Hz

  • Wide 140° x 100° directivity coverage

  • 5″ high-power woofer

  • 1″ neodymium dome tweeter

  • Self-extinguishing plastic cabinet and aluminum grille

  • Connection board integrated in wall mount support

  • 4-pole Euroblock input and parallel output

  • IP55 protection rating



Specifications



Frequency Response (-10dB) 80 Hz ÷ 20000 Hz
Max SPL @ 1m 110 dB
Horizontal Coverage Angle 140°
Vertical Coverage Angle 100°
Sensitivity 88 dB
Amplification Full Range
Nominal Impedance 8 ohm
Power Handling 40 W RMS
Peak Power Handling 160 W PEAK
Protection Bulb lamp
Crossover Frequency 2500 Hz
Recommended Amplifiers DMA 504, DMA 162, DMA 82, DMA 162P
Tweeter 1 x 1.0″ neo, 1.0″ v.c
Woofer 1 x 5.0″, 1.0″ v.c
Input Connectors Euroblock
Output Connectors Euroblock
Voltage Transformer 70/100 V
Power Selection 1 40 W – 250 ohm
Power Selection 2 20 W – 500 ohm
Power Selection 3 10 W – 1000 ohm
Power Selection 4 5 W – 2000 ohm
Power Selection 5 2.5 W – 4000 ohm
IP Protection Grade IP55
Safety Compliance CE compliant, UL 1480A
Cabinet Material ABS
Grille Aluminum
Color White – RAL 9003
Height 349 mm / 13.74 inches
Width 170 mm / 6.69 inches
Depth 253 mm / 9.96 inches
Weight 4.2 kg / 9.26 lbs
Package Height 278 mm / 10.94 inches
Package Width 418 mm / 16.46 inches
Package Depth 308 mm / 12.13 inches
Package Weight 5.3 kg / 11.68 lbs
