Description

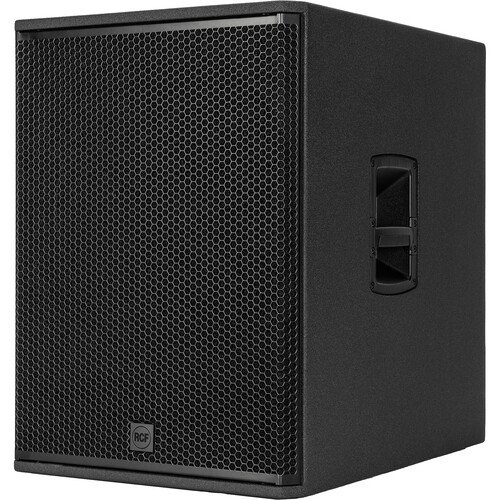

Designed for professional live sound environments, the SUB 708-AS MK3 is a high-performance 18” active subwoofer built with a robust ceramic magnet driver and an energy-efficient Class D amplifier. It delivers up to 133 dB SPL, providing tight, extended low-end performance. Ideal as a low-frequency extension to 8” or 10” full-range speakers, it features user-configurable rear panel controls for volume, EQ, crossover, and polarity. The cabinet is made of durable Baltic birch plywood, finished with a protective polyurethane coating, and equipped with ergonomic handles and a top-mounted M20 pole socket. RCF’s exclusive Bass Motion Control (BMC) technology ensures enhanced low-frequency response with greater stability and natural sound reproduction. Suitable for portable PA setups and small to mid-sized venues.



Features



  • 1400W Class D amplifier

  • 18” subwoofer in a bass reflex enclosure

  • Stereo crossover with switchable frequency

  • Polarity reversal switch

  • Electronic equalization and progressive limiter

  • XLR stereo inputs and outputs

  • Bass Motion Control (BMC) technology

  • Durable Baltic birch cabinet with scratch-resistant coating

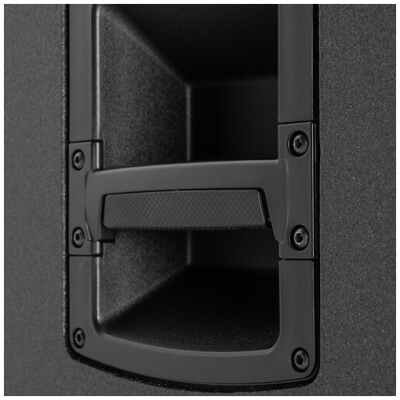

  • M20 pole mount and ergonomic handles

  • Convection cooling, no fan required



Specifications



Frequency response 35 Hz ÷ 120 Hz
Max SPL @ 1m 133 dB
Woofer 1 x 18”, 3.0” vc
Input signal Balanced / Unbalanced
Input connectors XLR
Output connectors XLR
Input sensitivity -2 dBu / +4 dBu
High-pass frequency 110 Hz
Low-pass frequency 80 Hz
Protections Thermal, RMS
Limiter Soft Limiter
Controls Volume, EQ, Phase, Xover
Total power 1400 W Peak, 700 W RMS
Low frequencies power 1400 W Peak, 700 W RMS
Cooling system Convection
Power connection VDE
Safety standard CE compliant
Cabinet material Baltic birch plywood
Handles One on each side
Pole mount M20 thread
Grille Steel with acoustic fabric
Color Black
Height 693 mm / 27.28 inches
Width 505 mm / 19.88 inches
Depth 685 mm / 26.97 inches
Weight 40.6 kg / 89.51 lbs
Package height 735 mm / 28.94 inches
Package width 565 mm / 22.24 inches
Package depth 745 mm / 29.33 inches
Package weight 45.6 kg / 100.53 lbs
