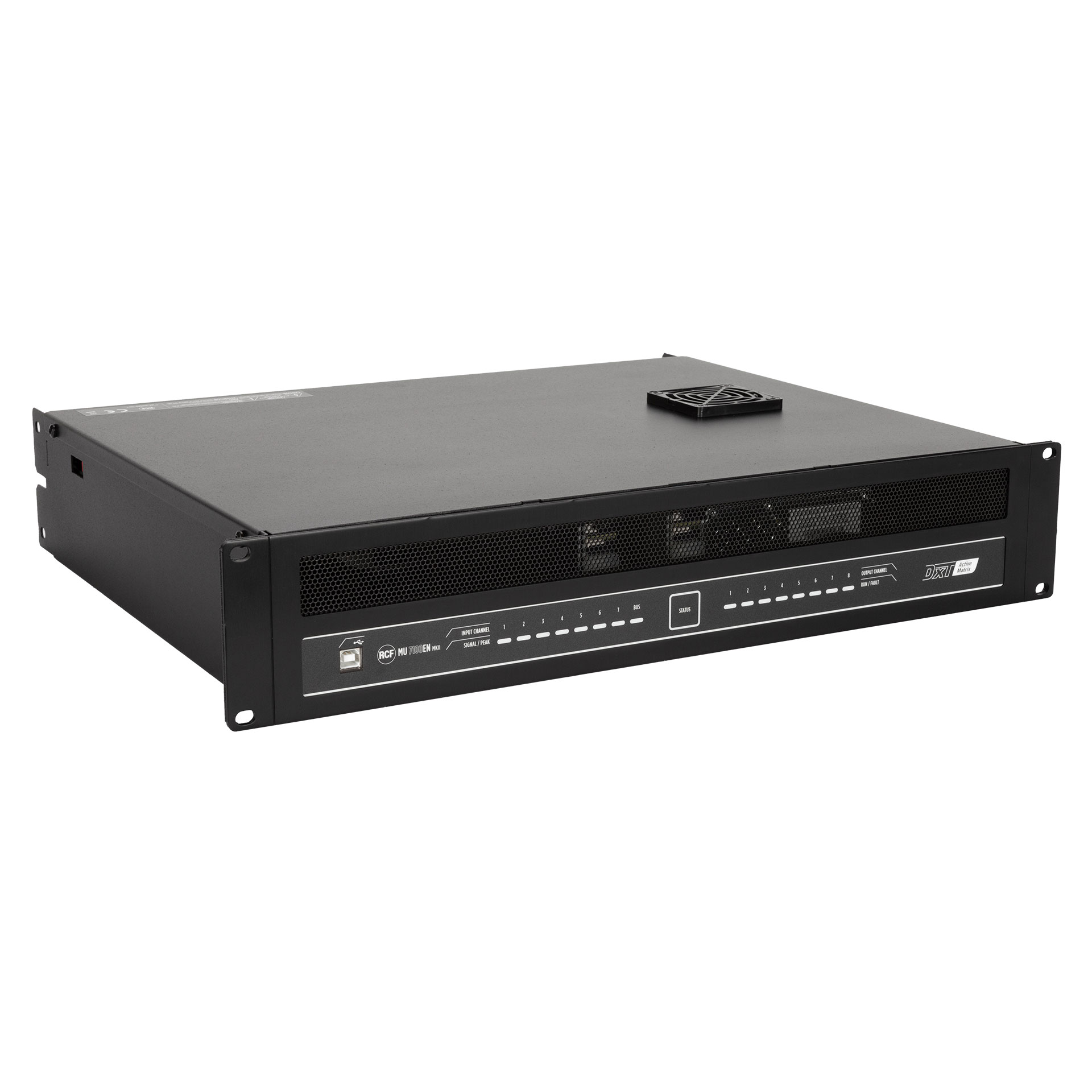

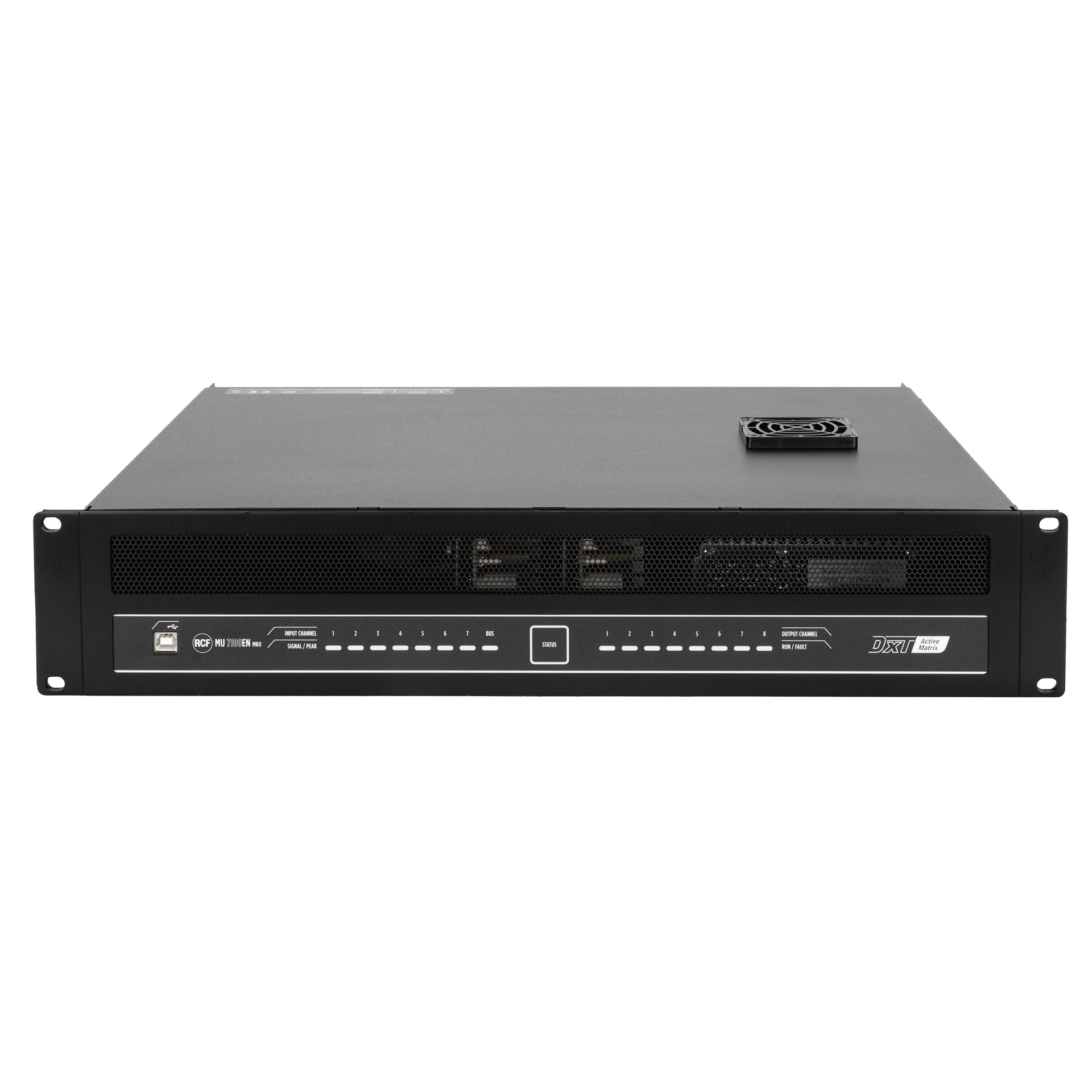

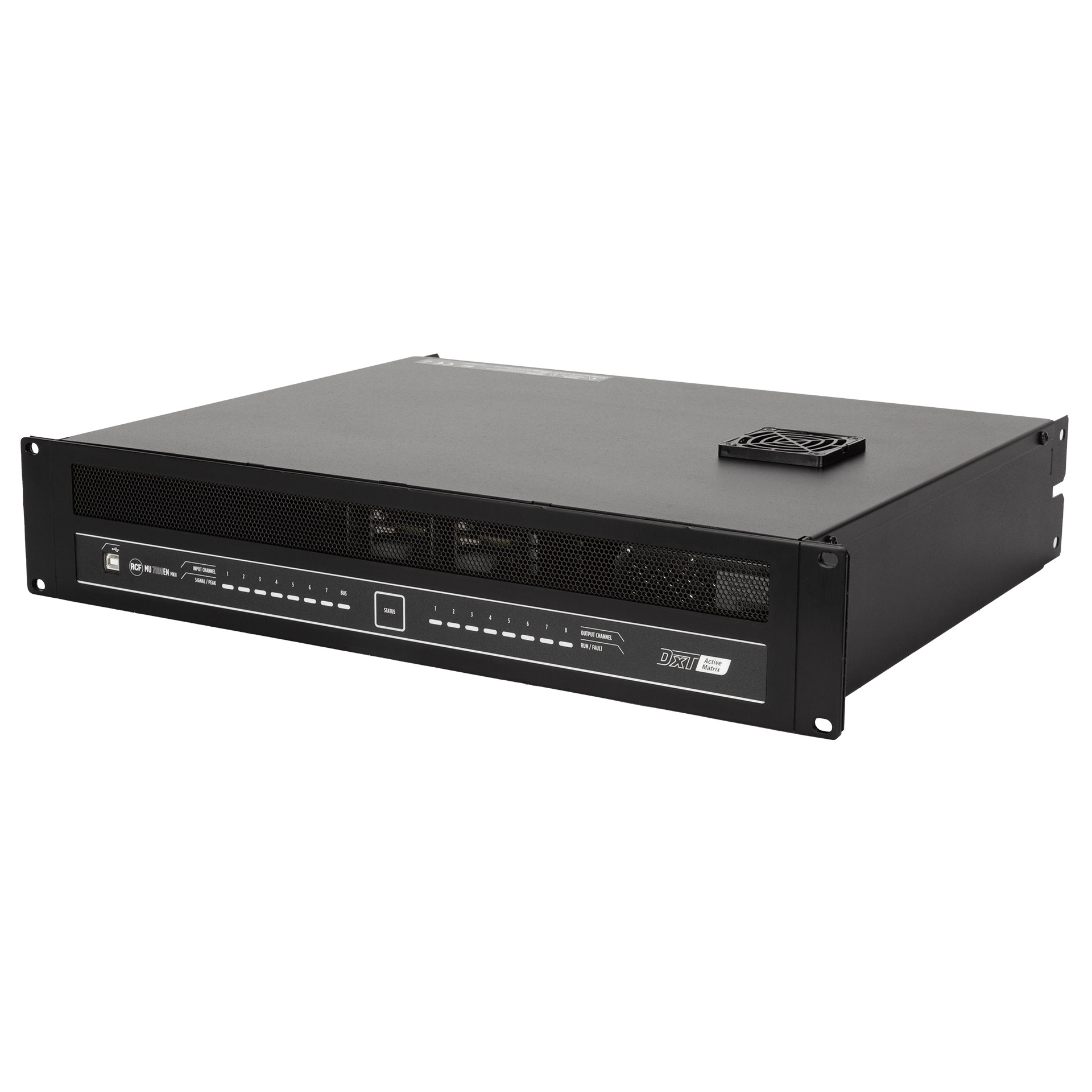

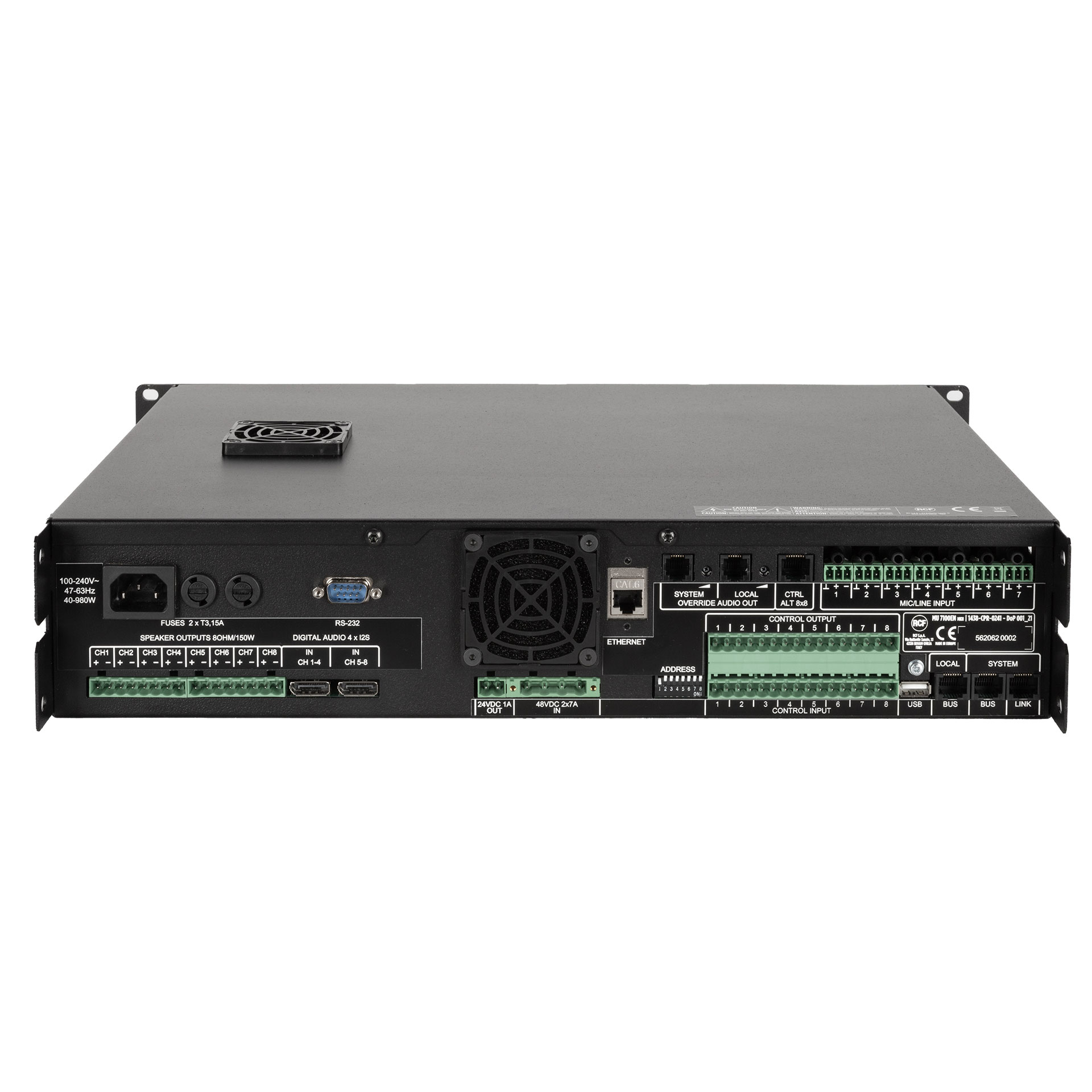

RCF MU 7100EN MKII Amplified Master Unit

The MU 7100EN MKII is the central amplified master unit of the DXT 7000 Voice Alarm system. Designed in full compliance with EN 54-16 and EN 60849 standards, it integrates a powerful DSP platform, 8-channel class D amplification, and a flexible 8 x 7 configurable digital matrix. This unit allows the management of up to 128 zones and includes dual AC and DC power sources for redundancy. The system provides automatic fault detection across the entire signal chain, from microphone input to speaker output, ensuring dependable operation. Configuration is handled through Windows-based software, and emergency or routine messages can be preloaded and scheduled directly from the unit. With support for up to 32 consoles and 256 speaker lines, the MU 7100EN MKII is built for large-scale voice alarm and public address applications.

Features

• 8 x 7 configurable digital matrix

• Powerful DSP platform on-board

• Dual AC and DC power supply

• 8 x 80 W class D power amplifiers

• Windows PC software configuration

• Monitored emergency message memory

• Supports up to 32 consoles and 256 speaker lines

• Compliant with EN 54-16 and EN 60849

Specifications
