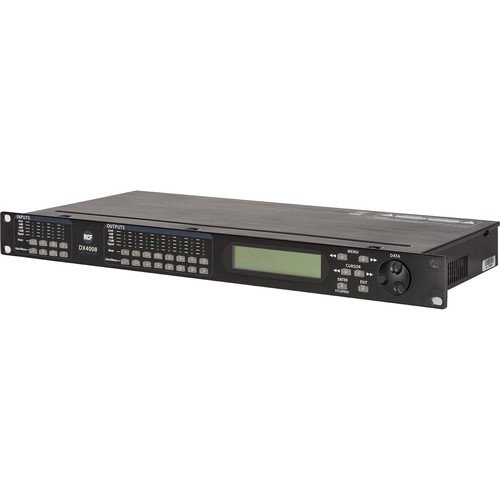

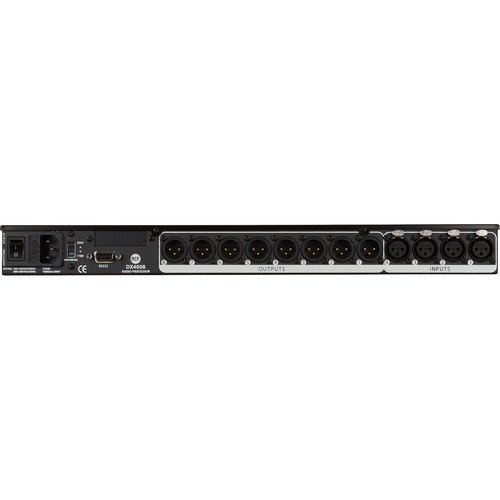

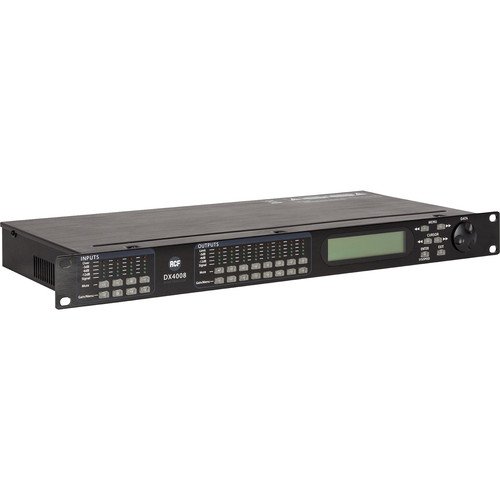

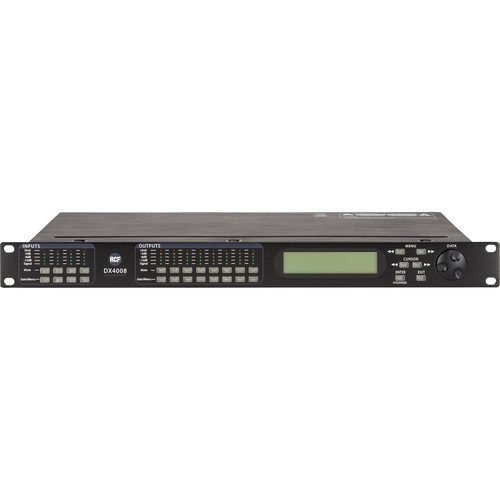

RCF DX 4008 4-Input & 8-Output Digital Audio Processor

The DX 4008 is a complete digital loudspeaker management system featuring 4 inputs and 8 outputs, designed for both touring and fixed installations. Offering precise 1 Hz frequency resolution and a selectable 96 kHz sampling rate, it delivers outstanding audio fidelity. The system includes powerful DSP processing with 32-bit (40-bit extended) floating-point architecture and 24-bit A/D-D/A converters, minimizing noise and distortion. With flexible routing, parametric EQ, crossover management, and limiting per channel, the DX 4008 can be controlled via front panel or the XLink PC software through RS232. This intuitive GUI enables complete control and storage management from a PC, making it ideal for complex sound setups.

Features

• 4-input, 8-output digital loudspeaker management system

• Sampling rate selectable up to 96 kHz

• 1 Hz frequency control resolution

• 32-bit (40-bit extended) floating-point DSP

• 24-bit high-performance A/D-D/A converters

• Input/output routing flexibility for any configuration

• 6-band parametric EQ, crossover, delay, limiter per channel

• Front panel or PC-based control via RS232 using XLink GUI

• Virtual unlimited preset storage via PC

• Software upgradeable for DSP and CPU functions

• Convection cooling and rack-mountable metal chassis

Specifications
