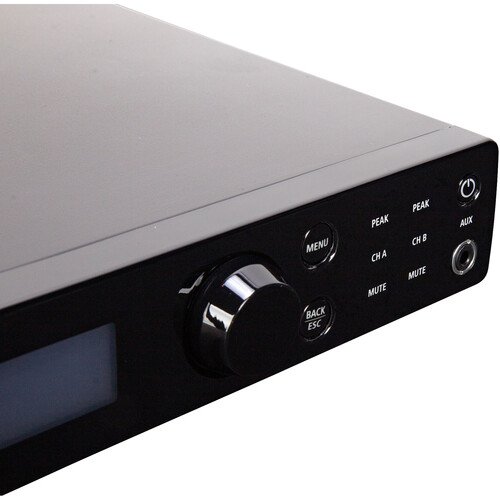

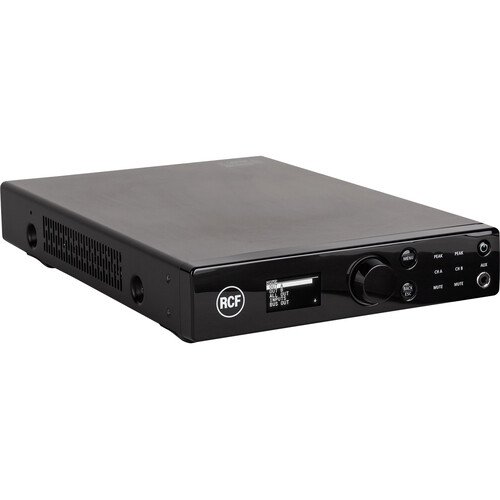

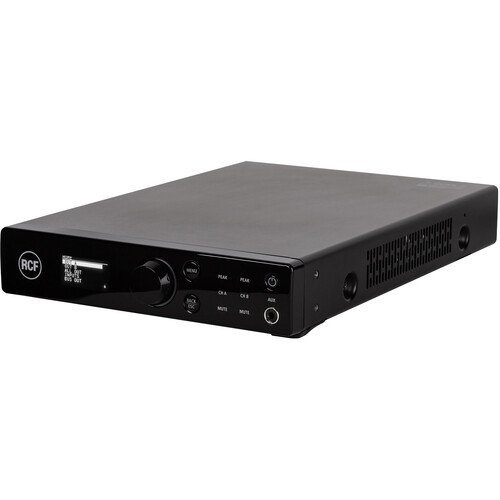

The DMA 82 Black features dual Class-D amplifiers delivering 80 watts per channel, covering a frequency range from 20 Hz to 20 kHz. Equipped with a powerful DSP platform, it enables routing, equalization, and advanced processing functions such as PEQ, FIR filters, bass enhancement, compression, and limiters. It includes proprietary presets for RCF speakers to optimize sound quality and supports distribution of up to 4 audio channels to satellite units via an analog audio BUS, creating scalable multi-room audio architectures with simple CAT5e cable connections. Configurable via an OLED front panel or RDNet software, the DMA 82 Black offers user-friendly operation combined with robust build quality. It is ideal for business music systems, paging applications, and installed sound systems requiring flexibility and precision.
Features
Two Class-D power amplifiers delivering 80 W each
Wide frequency response from 20 Hz to 20 kHz
Full onboard digital signal processing
Preloaded RCF speaker presets for optimal sound signature
Proprietary bass enhancer algorithm for enhanced low frequencies
FiRPHASE linear phase FIR filters for precise equalization
Scalable multi-room architecture supporting distribution of 4 audio channels via audio BUS
Suitable for desktop use or 1U rack installation (rack mount accessory optional)
RDNet ready for integrated networked system management
Multiple remote control and paging console accessories available
User-friendly configuration through front panel OLED display or RDNet software
Comprehensive protection features including thermal, short circuit, DC, and VHF safeguards
Forced cooling for reliable operation
CE and UL safety certified
Specifications
| Amplifier Class | Class D |
| Output Power | 2 x 80 W @ 4 Ω, 2 x 80 W @ 8 Ω |
| Bridge mode: 1 x 160 W @ 4 Ω, 1 x 160 W @ 8 Ω | |
| Output Power @ 70 V | 1 x 160 W |
| Frequency Response (-3 dB) | 20 Hz – 20,000 Hz |
| Total Inputs | 5 |
| Balanced Inputs | 2 |
| Unbalanced Inputs | 3 |
| Mono Inputs | 2 |
| Stereo Inputs | 3 |
| VOX (Voice Operated Switch) | Yes |
| Line Inputs | 3 (connectors: JACK, Picoflex, RCA) |
| Mic/Line Inputs | 1 (Euroblock connector) |
| Paging Inputs | 1 (RJ45 connector) |
| Paging Command | Contact |
| General Purpose Inputs | 1 |
| Signal Outputs | 1 (RCA connector) |
| Power Output Connectors | Euroblock |
| DSP Processing | Yes |
| Equalizer Filters | Yes |
| FIR Filters | Yes |
| Compressors | Yes |
| Tone Controls | Yes |
| High-pass Filter Range | 80 Hz to 200 Hz |
| Configuration Methods | Front panel, PC software (RDNet) |
| Speaker Presets | Yes (RCF proprietary) |
| Network Protocols | Proprietary, RDNet onboard |
| Protection Features | Thermal, short circuit, DC, fuse, VHF |
| Cooling | Forced cooling |
| Operating Voltage | 90–240 V AC, 50/60 Hz |
| Max Power Consumption | 200 W |
| Safety Certifications | CE compliant, UL 62368-1 |
| Cabinet Material | Metal |
| Color | Black |
| Rack Mount | 1/2 19″, 1U (optional accessory required) |
| Dimensions (H x W x D) | 44 mm x 213 mm x 314 mm (1.73″ x 8.39″ x 12.36″) |
| Weight | 1.7 kg (3.75 lbs) |
| Package Dimensions (H x W x D) | 106 mm x 360 mm x 381 mm (4.17″ x 14.17″ x 15″) |
| Package Weight | 2.7 kg (5.95 lbs) |
