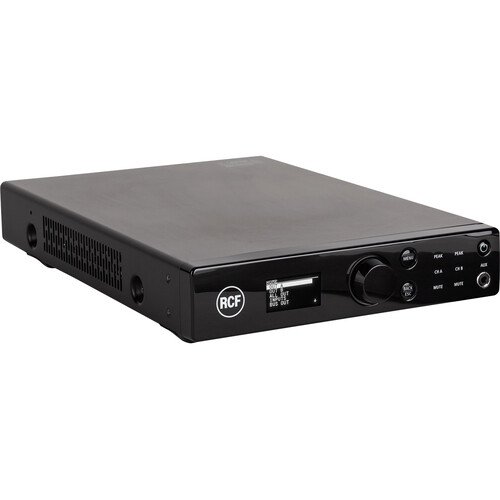

The DMA 162 Black features two Class-D amplifiers rated at 160 watts per channel, covering a broad frequency range of 20 Hz to 20 kHz. It incorporates a robust DSP platform that manages input/output routing and equalization, including PEQ, FIR filters, bass enhancement, limiters, compressors, and environmental EQ. Preloaded presets optimize performance for RCF speakers, enhancing the acoustic experience. It supports distributing up to 4 audio channels to DMA 162P satellite units through an analog audio BUS, enabling scalable multi-room audio architectures with simple CAT5e cabling. Configuration is intuitive, done via an OLED front panel or the RDNet network management software. Built with accuracy and durability, it fits business music, paging, and installed sound applications demanding flexibility and precise control.
Features
Dual 160 W Class-D power amplifiers
Frequency response spanning 20 Hz to 20 kHz
Complete onboard digital signal processing with PEQ, FIR, compressors, and limiters
Proprietary RCF bass enhancer algorithm for richer low frequencies
FiRPHASE linear phase filters for transparent equalization
Scalable multi-room architecture supporting 4 audio channel distribution via audio BUS
Desktop or 1U rack installation (rack mount accessory optional)
RDNet-enabled for integrated networked system management
Compatible with remote controls and paging console accessories
User-friendly setup via OLED front panel or RDNet software
Comprehensive protections: thermal, short circuit, DC, fuse, VHF safeguards
Forced cooling for reliable performance
Certified CE and UL compliant
Specifications
| Amplifier Class | Class D |
| Output Power | 2 x 160 W @ 4 Ω, 2 x 160 W @ 8 Ω |
| Bridge mode: 1 x 320 W @ 4 Ω, 1 x 320 W @ 8 Ω | |
| Output Power @ 70 V | 1 x 320 W |
| Frequency Response (-3 dB) | 20 Hz – 20,000 Hz |
| Total Inputs | 5 |
| Balanced Inputs | 2 |
| Unbalanced Inputs | 3 |
| Mono Inputs | 2 |
| Stereo Inputs | 3 |
| VOX (Voice Operated Switch) | Yes |
| Line Inputs | 3 (JACK, Picoflex, RCA connectors) |
| Mic/Line Inputs | 1 (Euroblock connector) |
| Paging Inputs | 1 (RJ45 connector) |
| Paging Command | Contact |
| General Purpose Inputs | 1 |
| Signal Outputs | 1 (RCA connector) |
| Power Output Connectors | Euroblock |
| DSP Processing | Yes |
| Equalizer Filters | Yes |
| FIR Filters | Yes |
| Compressors | Yes |
| Tone Controls | Yes |
| High-pass Filter Range | 80 Hz to 200 Hz |
| Configuration Methods | Front panel OLED display, PC software (RDNet) |
| Speaker Presets | Yes (RCF proprietary) |
| Network Protocols | Proprietary, RDNet onboard |
| Protection Features | Thermal, short circuit, DC, fuse, VHF |
| Cooling | Forced cooling |
| Operating Voltage | 90–240 V AC, 50/60 Hz |
| Max Power Consumption | 400 W |
| Safety Certifications | CE compliant, UL 62368-1 |
| Cabinet Material | Metal |
| Color | Black |
| Rack Mount | 1/2 19″, 1U (optional accessory required) |
| Dimensions (H x W x D) | 44 mm x 213 mm x 314 mm (1.73″ x 8.39″ x 12.36″) |
| Weight | 1.7 kg (3.75 lbs) |
| Package Dimensions (H x W x D) | 106 mm x 360 mm x 381 mm (4.17″ x 14.17″ x 15″) |
| Package Weight | 2.7 kg (5.95 lbs) |
