Description

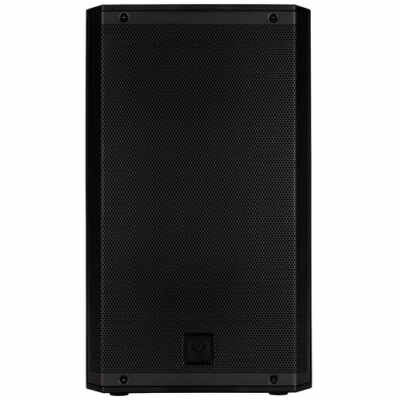

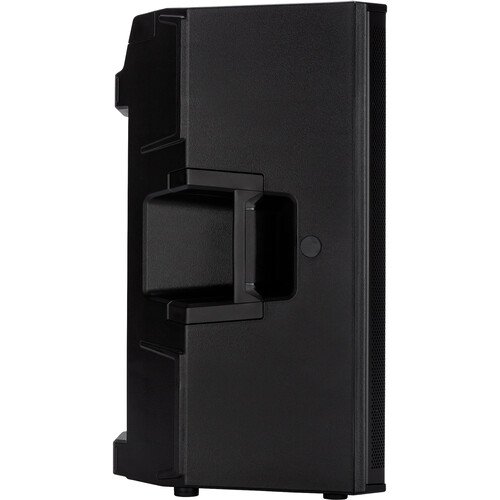

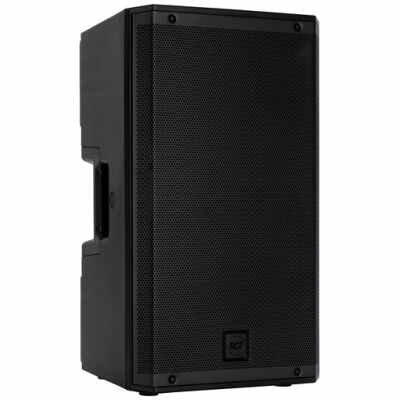

The COMPACT A 12 is a multipurpose two-way full-range speaker system engineered for live performances, stage monitoring, and distributed sound in various venues. With 400 W of continuous power handling and a 12″ high-power woofer paired with a 1.75″ compression driver, it delivers rich, distortion-free sound with a linear frequency response from 55 Hz to 20 kHz. This speaker achieves a maximum sound pressure level of 129 dB while maintaining vocal clarity and punchy lows, thanks to its advanced crossover design and waveguide. Its cabinet is constructed from a durable polypropylene composite reinforced with an internal M-brace, ensuring minimal resonance and maximum mechanical strength. Designed for flexible mounting, it includes multiple rigging points and can be used on poles or flown. With premium components and rugged construction, the COMPACT A 12 is ideal for professional applications demanding clarity, power, and reliability.



Features



  • 400 W power handling

  • Up to 129 dB Sound Pressure Level

  • 55-20000 Hz linear frequency response

  • 1.75″ Compression Driver

  • 12″ High Power Woofer

  • Robust composite material cabinet

  • Steel full front grille

  • Optional mounting accessories

  • 2 x SPEAKON connectors



Specifications



Frequency Response (-10dB) 55 Hz – 20000 Hz
Max SPL @ 1m 129 dB
Horizontal Coverage 100°
Vertical Coverage 60°
System Sensitivity 97 dB
Amplification Full Range
Nominal Impedance 8 ohm
Power Handling 400 W
Peak Power Handling 1600 W PEAK
Protections Dynamic Active Mosfet
Crossover Frequency 1200 Hz
Recommended Amplifiers QPS 10K, QPS 6.0K, IPS 2.5K, IPS 1.5K, DMA 504
Compression Driver 1 x 1.0″, 1.75″ v.c
Woofer 1 x 12″, 2.5″ v.c
Input Connectors Speakon
Output Connectors Speakon
Safety Agency CE compliant
Cabinet Material PP Composite
Hardware 1 x M10 top, 1 x M10 each side
Handles 1 top, 1 each side
Pole Mount 35 mm insert
Grille Steel
Color Black
Height 641.6 mm / 25.26 inches
Width 369.9 mm / 14.56 inches
Depth 363 mm / 14.29 inches
Weight 18.8 kg / 41.45 lbs
Package Height 685 mm / 26.97 inches
Package Width 430 mm / 16.93 inches
Package Depth 423 mm / 16.65 inches
Package Weight 21.4 kg / 47.18 lbs
