Description

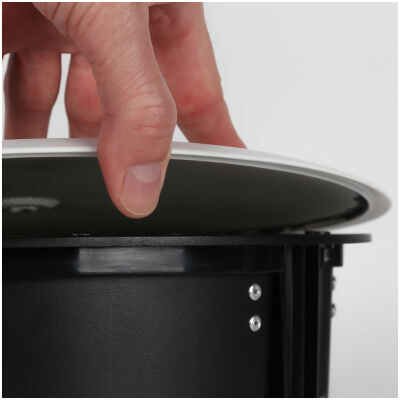

The CMR 60T W is a high-performance in-ceiling speaker engineered for a variety of commercial environments. Designed with a refined and subtle aesthetic, it integrates smoothly into modern architecture. It features a coaxial configuration with a 6.5″ woofer and a 1″ neodymium dome tweeter for consistent and clear sound across the full frequency range. Its 130° conical coverage makes it suitable for both music and speech applications. The speaker offers an easy setup using three mounting clamps, and the magnetic front grille enables quick access to the power selector. Designed for 70V and 100V lines, it delivers up to 80W and includes five selectable power levels for system flexibility.



Features



  • 80W RMS power handling

  • 114 dB maximum sound pressure level

  • 70 to 20000 Hz frequency response

  • 130° conical coverage angle

  • 6.5″ high-power woofer

  • 1″ neodymium dome tweeter

  • Coaxial speaker alignment

  • Self-extinguishing plastic body and metal backcan

  • Steel magnetic front grille

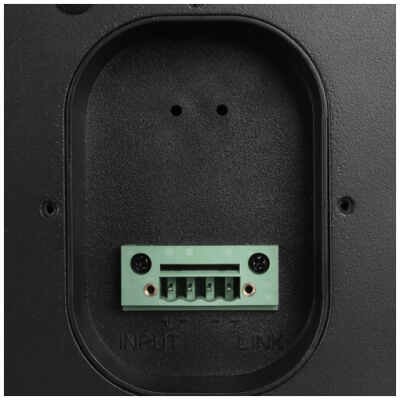

  • 4-pole Euroblock input and parallel output

  • 5 adjustable power settings

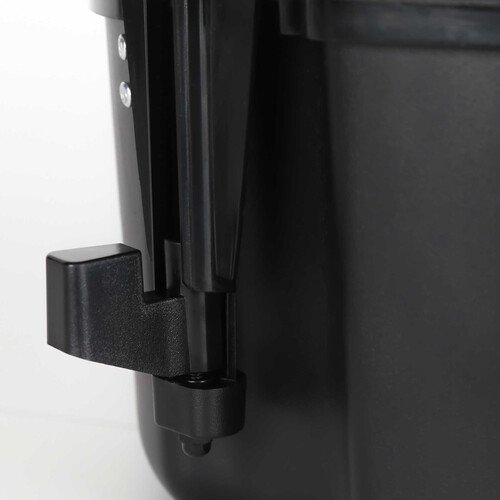

  • Quick installation using three long-travel clamps



Specifications



Frequency Response (-10dB) 70 Hz ÷ 20000 Hz
Max SPL @ 1m 114 dB
Coverage Angle 130°
System Sensitivity 89 dB
Amplification Full Range
Nominal Impedance 8 ohm
Power Handling 80 W RMS
Peak Power Handling 320 W PEAK
Crossover Frequency 2500 Hz
Recommended Amplifiers DMA 504, DMA 162, DMA 82, DMA 162P
Tweeter 1 x 1.0″ neo, 1.0″ v.c
Woofer 1 x 6.5″, 1.2″ v.c
Input Connectors Euroblock
Output Connectors Euroblock
Voltage Transformer 70/100 V
Power Selection 1 80 W – 125 ohm
Power Selection 2 40 W – 250 ohm
Power Selection 3 20 W – 500 ohm
Power Selection 4 10 W – 1000 ohm
Power Selection 5 5 W – 2000 ohm
Safety Compliance CE compliant, UL 1480A
Cabinet Material ABS
Hardware Steel backcan
Grille Steel
Color White – RAL 9003
Depth 202 mm / 7.95 inches
Recessed Depth 193 mm / 7.6 inches
Diameter 300 mm / 11.81 inches
Cut Out Diameter 260 mm / 10.24 inches
Weight 4.5 kg / 9.92 lbs
Package Height 280 mm / 11.02 inches
Package Width 362 mm / 14.25 inches
Package Depth 362 mm / 14.25 inches
Package Weight 6 kg / 13.23 lbs
