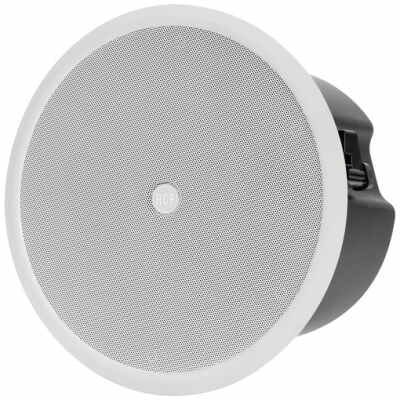

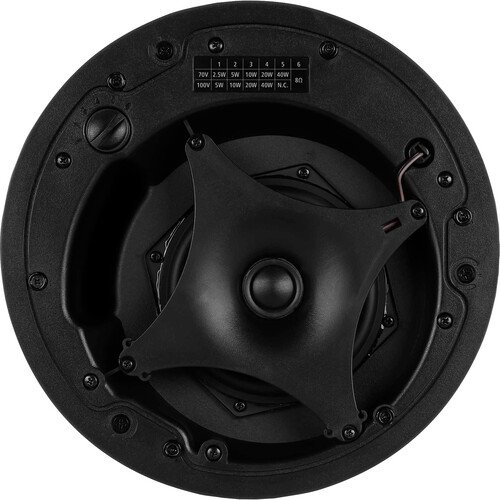

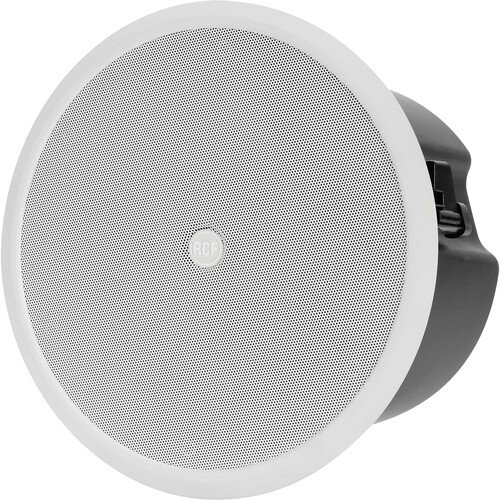

The CMR 50T W is a versatile in-ceiling speaker ideal for delivering high-quality sound in various commercial spaces. Its clean white design blends seamlessly with modern interiors. With a coaxial arrangement of a 5″ woofer and a 1″ neodymium dome tweeter, it ensures accurate and full-range audio. Featuring a wide 130° conical dispersion, this speaker suits both background music and voice reproduction. Installation is simple using three mounting clamps and a removable steel magnetic grille, which provides quick access to the power selector. The speaker supports 70V/100V systems and includes five selectable power levels for greater flexibility.
Features
-
40W RMS power handling
-
110 dB maximum sound pressure level
-
80 to 20000 Hz frequency response
-
130° conical coverage angle
-
5″ high-power woofer
-
1″ neodymium dome tweeter
-

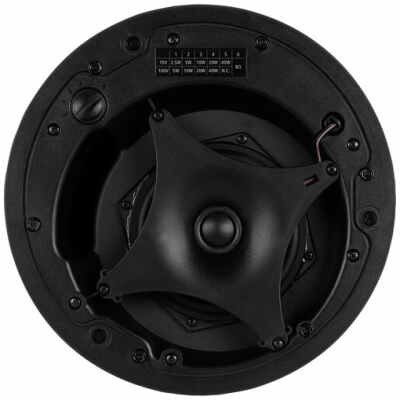

Coaxial configuration for precise sound
-
Self-extinguishing plastic cabinet with metal backcan
-

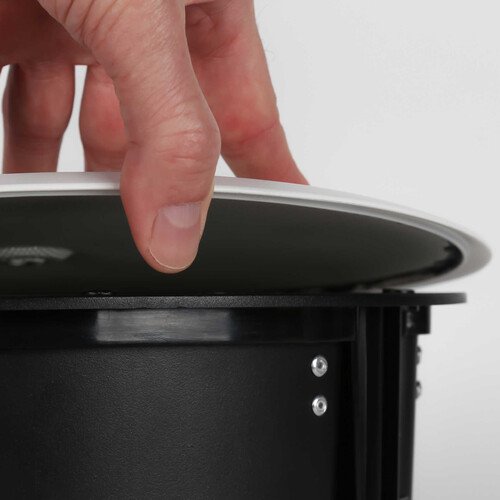

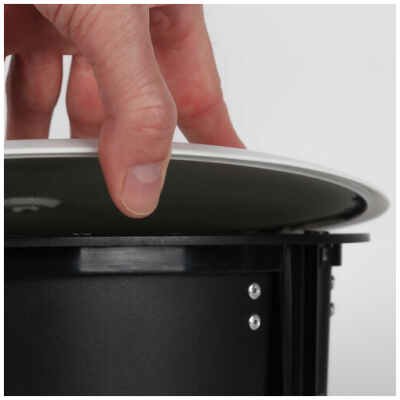

Steel magnetic front grille
-

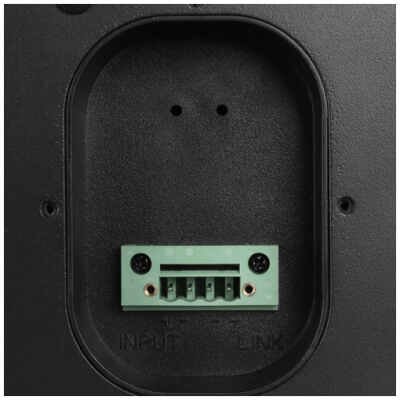

4-pole Euroblock input and output
-

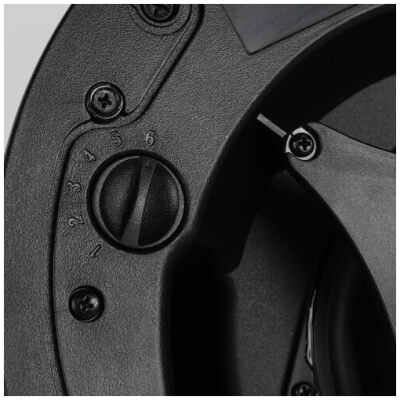

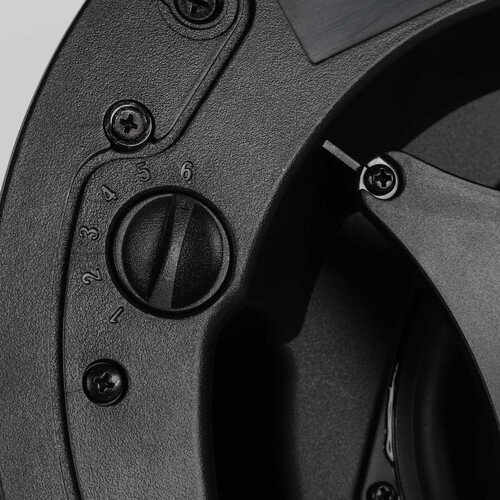

5 selectable power levels
-
Quick installation with long-travel clamps
Specifications
| Frequency Response (-10dB) | 80 Hz ÷ 20000 Hz |
| Max SPL @ 1m | 110 dB |
| Coverage Angle | 130° |
| System Sensitivity | 88 dB |
| Amplification | Full Range |
| Nominal Impedance | 8 ohm |
| Power Handling | 40 W RMS |
| Peak Power Handling | 160 W PEAK |
| Crossover Frequency | 2500 Hz |
| Recommended Amplifiers | DMA 504, DMA 162, DMA 82, DMA 162P |
| Tweeter | 1 x 1.0″ neo, 1.0″ v.c |
| Woofer | 1 x 5.0″, 1.0″ v.c |
| Input Connectors | Euroblock |
| Output Connectors | Euroblock |
| Voltage Transformer | 70/100 V |
| Power Selection 1 | 40 W – 250 ohm |
| Power Selection 2 | 20 W – 500 ohm |
| Power Selection 3 | 10 W – 1000 ohm |
| Power Selection 4 | 5 W – 2000 ohm |
| Power Selection 5 | 2.5 W – 4000 ohm |
| Safety Compliance | CE compliant, UL 1480A |
| Cabinet Material | ABS |

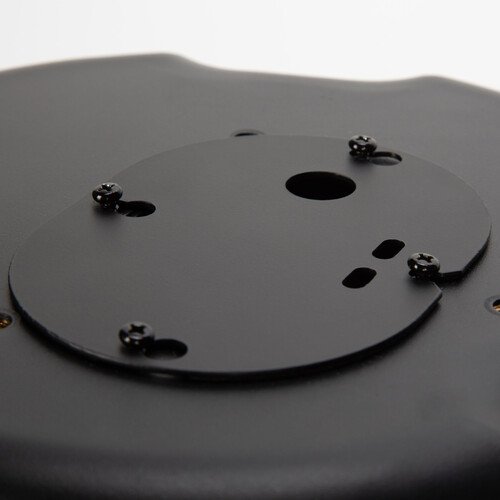

| Hardware | Steel backcan |
| Grille | Steel |
| Color | White – RAL 9003 |
| Depth | 151 mm / 5.94 inches |
| Recessed Depth | 142 mm / 5.59 inches |
| Diameter | 300 mm / 11.81 inches |
| Cut Out Diameter | 260 mm / 10.24 inches |
| Weight | 4 kg / 8.82 lbs |
| Package Height | 229 mm / 9.02 inches |
| Package Width | 362 mm / 14.25 inches |
| Package Depth | 362 mm / 14.25 inches |
| Package Weight | 5.5 kg / 12.13 lbs |
