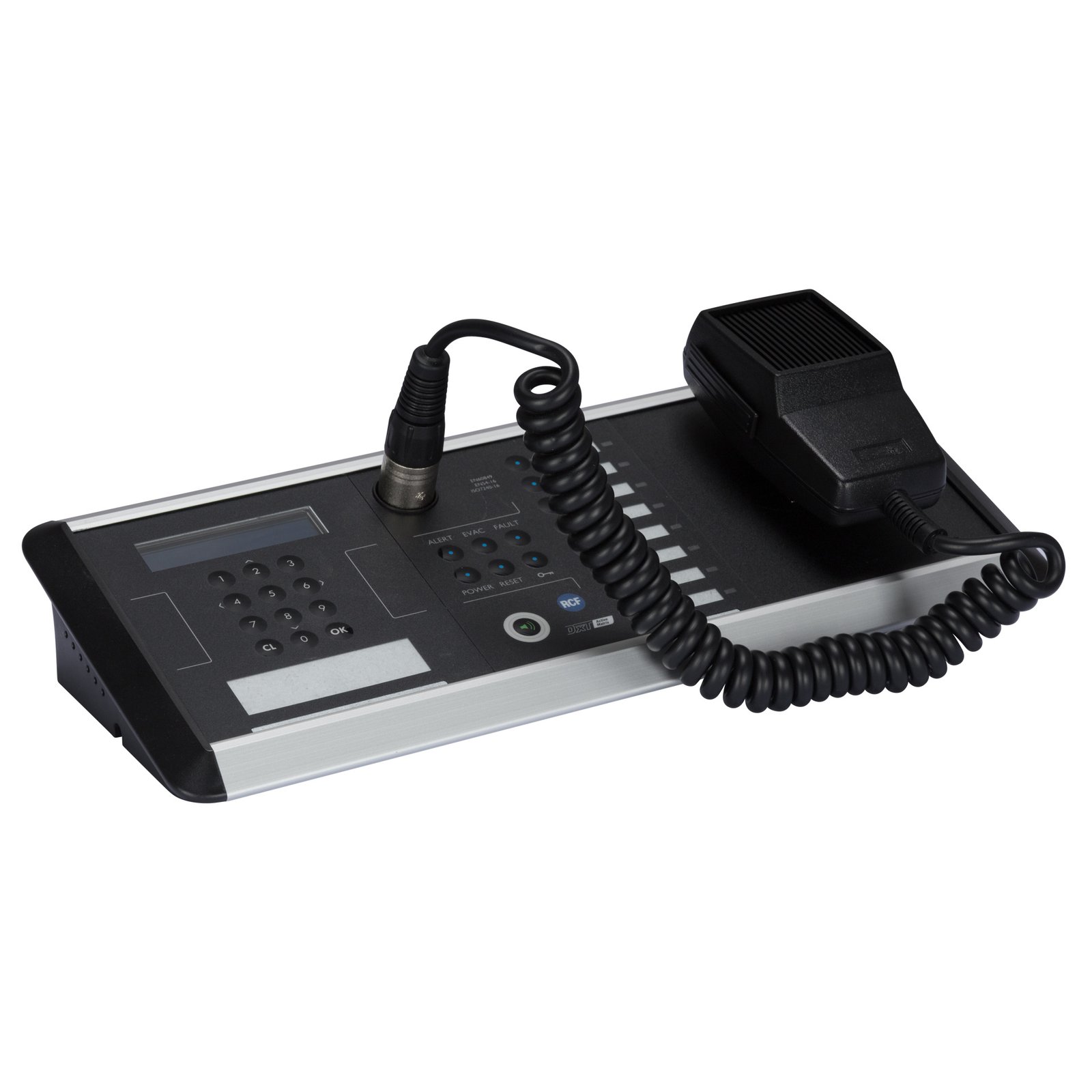

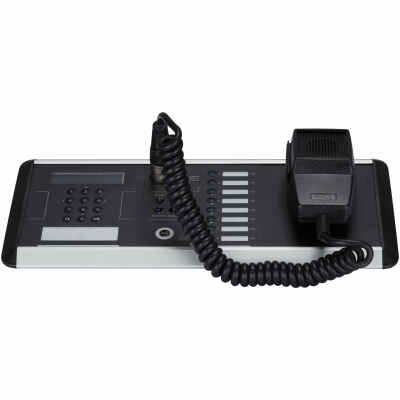

The BM 7608DFM is a desktop emergency microphone console designed for the DXT 7000 Voice Alarm system. It is equipped for both live announcements and pre-recorded message activation, featuring a dynamic handheld microphone with a Push-To-Talk (PTT) button. The unit includes a numeric keypad, LCD screen, and built-in self-diagnostic functionality, ensuring real-time system monitoring in compliance with EN 54-16. Its robust metal body and modern design make it ideal for critical emergency paging scenarios. Up to 8 consoles can be daisy-chained per paging bus, with support for a total of 32 across the system.
Features
-
Live emergency announcements
-
Pre-recorded message activation
-
Complete self-diagnostic functionality
-
Numeric keypad and LCD display
-
Handheld microphone with PTT button
-
Modern and robust design
-
Daisy-chain connectivity (up to 8 units per bus)
Specifications
| Microphone Type | Dynamic |
| Directivity | Omnidirectional |
| Frequency Response (-3dB) | 50 Hz ÷ 17 kHz |
| THD @ 1 kHz | 0.10 % |
| Console Type | Emergency |
| Compatible System | DXT 7000 |
| General Call | Yes |
| Selective Call | Yes |
| Preamplified | Yes |
| Configurable Buttons | Yes |
| LED Indicators | Yes |
| LCD Screen | Yes |
| Connectors | RJ45 |
| Cable Type | FTP CAT 5 |
| Daisy-Chain Support | Yes |
| Max Units in Daisy-Chain | 8 |
| Interlock | Yes |
| Priority Function | Yes |
| Chime Tone Generator | Yes |
| Cable Included | Yes |
| Cable Length | 5 m |
| Safety Compliance | CE compliant |
| EN54-16 Certified | Yes |
| CPR Number | 1438-CPR-1093 |
| Cabinet Material | Metal |
| Height | 55 mm / 2.17 inches |
| Width | 326 mm / 12.83 inches |
| Depth | 135 mm / 5.31 inches |
| Weight | 1.2 kg / 2.65 lbs |
| Package Height | 40 mm / 1.57 inches |
| Package Width | 165 mm / 6.5 inches |
| Package Depth | 165 mm / 6.5 inches |
| Package Weight | 1.69 kg / 3.73 lbs |
