Description

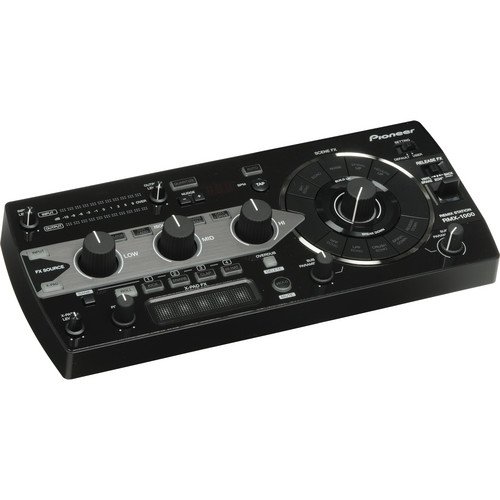

The Pioneer RMX-1000 Remix Station may appear to be a standard DJ rig effector at a glance. A closer look reveals a host of truly viable features that excel in the DJ booth and production studio alike.

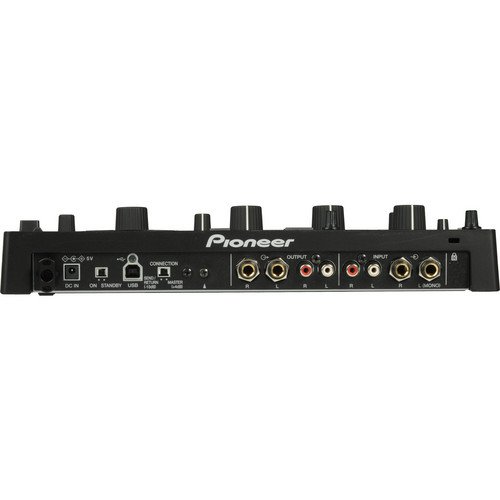

The RMX-1000 has a stereo input and output, connecting by either RCA or 1/4″ TRS connectors. Its layout is divided into 4 sections that include Scene FX, Isolator FX, Release FX, and a Touch Pad. You can instantly overdub and sync custom patterns to the tracks playing from external decks or DJ software, and quantize patterns for even tighter syncing capabilities. Easily create rolls and drum fills that can be triggered in realtime. The RMX-1000 comes with a set of stock synth-drum sounds, and an SD-card slot that allows you to create and trigger custom samples via Pioneer’s remixbox software. Edited parameters, effects, and samples can easily be saved on SD-cards.

In addition to all of this, the RMX-1000 connects over USB to support usage as a VST and AU with your favorite DAW software. Call the RMX-1000 up as a plug-in and take advantage of all its features and MIDI control in your music production as well as your live DJ sets.



FEATURES

  • Realtime DJ Effects, Sampler & Control
  • Scene FX for Builds & Breakdowns
  • Isolator FX – Frequency Specific Effects
  • Release FX Eliminates Music or Effects
  • X-Pad for Overdub Drums & Sounds
  • Save Samples & Settings on SD-Cards
  • Tempo Sync Drum Rolls & Fills
  • Flexible Quantizing
  • Use as a VST or AU Plug-in
  • Works with DAW Software – Mac & Windows



SPECIFICATIONS

Key Specs
Configuration
Single-Deck
Number of Channels
1x Stereo
Performance Controls
EQ, FX, Sampler, Sequencer, Tap Tempo, Tempo Control
Built-In Effects
Delay, Echo (Type Unspecified)
Sample Rates
48 kHz
Bit Depths
24-Bit (AD/DA Conversion)
Stems Processing
No
Audio Inputs
1x Stereo 2RCA Coaxial Input
2x 1/4″ TRS Input
Audio Outputs
1x Stereo 2RCA Coaxial Output
2x 1/4″ TRS Output
USB
1x USB-B



Number of Channels
1x Stereo
Platter/Jog Wheel
No
Motorized Platters
No
Faders
No
Display
1x LED
Sample Pads
5x Assignable (Backlit)
EQ
Channel EQ:
Hi
Mid
Low
Performance Controls
EQ, FX, Sampler, Sequencer, Tap Tempo, Tempo Control
Built-In Effects
Delay, Echo (Type Unspecified)
Sample Rates
48 kHz
Bit Depths
24-Bit (AD/DA Conversion)
Stems Processing
No



Connectivity
Audio Inputs
1x Stereo 2RCA Coaxial Input
2x 1/4″ TRS Input
Audio Outputs
1x Stereo 2RCA Coaxial Output
2x 1/4″ TRS Output
USB
1x USB-B
Wireless
No
Media Card Slots
1x SD/SDHC
Internal Drive Bays
No



Performance
Frequency Response
20 Hz to 20 kHz
Input Level
Return:
-10 dBV
Master:
+4 dBu
Headroom
20 dB
Output Level
Send:
-10 dB
Master:
+4 dBu
I/O Impedance
Return Input:
≥22 Kilohms
Master Input:
≥22 Kilohms
SNR
Send/Return:
102 dB
Master:
98 dB
THD
<0.005%



Compatibility
Included Software
remixbox
RMX-1000 (Plug-In)
OS Compatibility
Windows 8 or Later / macOS 10.13 to 10.15
OS Compatibility
Windows 8.1
Windows 10
macOS 10.13
macOS 10.14
macOS 10.15
Mobile App Compatible
No
Required Hardware
USB 2.0 Port
Internet Connection
Required for Plug-In Authorization



Power
Power Requirements
AC/DC Power Adapter (Included)
Power Supply Output
5 VDC
Current Consumption
1.4 A



Physical
Operating Conditions
41 to 95°F / 5 to 35°C at 5 to 85% Humidity
Dimensions (W x D x H)
13.1 x 6.2 x 2.2″ / 334.0 x 157.0 x 57.0 mm
Weight
2.86 lb / 1.3 kg



Packaging Info
Package Weight
5.285 lb
Box Dimensions (LxWxH)
17.9 x 10.8 x 5.3″
