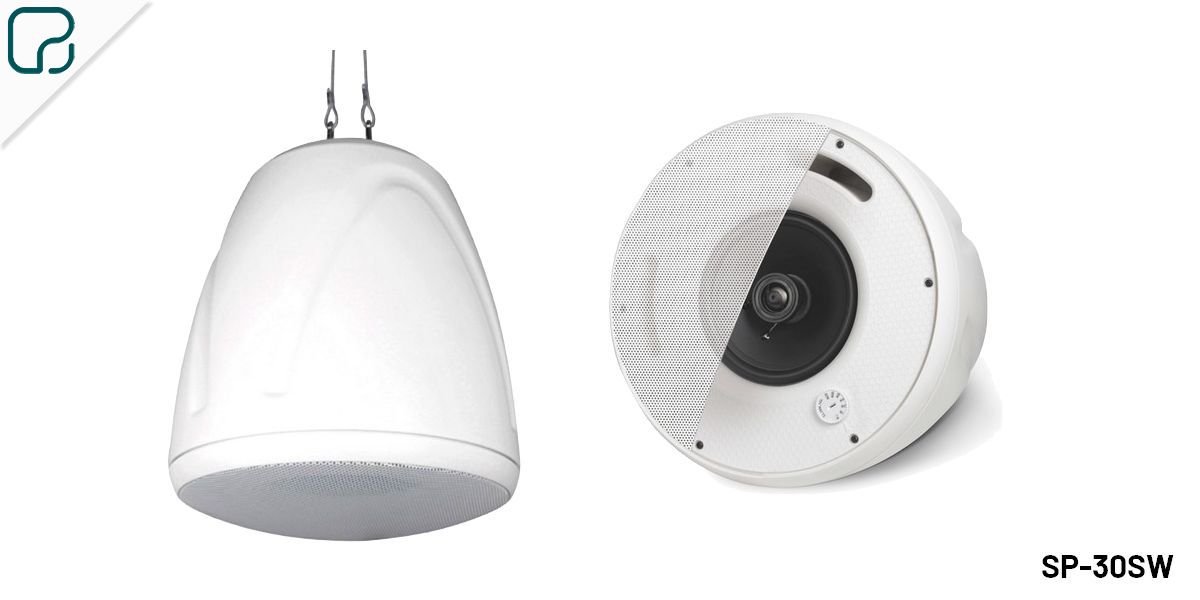

Sound projector of 30 W, 100 V line, prepared for outdoor installation (with protection degree IP66), with several power taps (30, 15, 7.5 and 3.75 W). The projector has two mounting possibilities; on wall/ceiling with the swivel bracket or suspended from the ceiling with the 1 m steel cable. All mounting accessories are included with the equipment. Frequency response 110 ~ 20,000 Hz, sensitivity 84 dB SPL (1 W, 1m, 1 kHz), maximum sound pressure 99 dB SPL (30 W, 1m, 1 kHz). Dimensions 170 x 240 mm, weight 2,2 kg. Finish in polypropylene with metallic grille. White colour RAL9003. OPTIMUS model ref. SP-30SW.
FEATURES
- IP66 protection degree

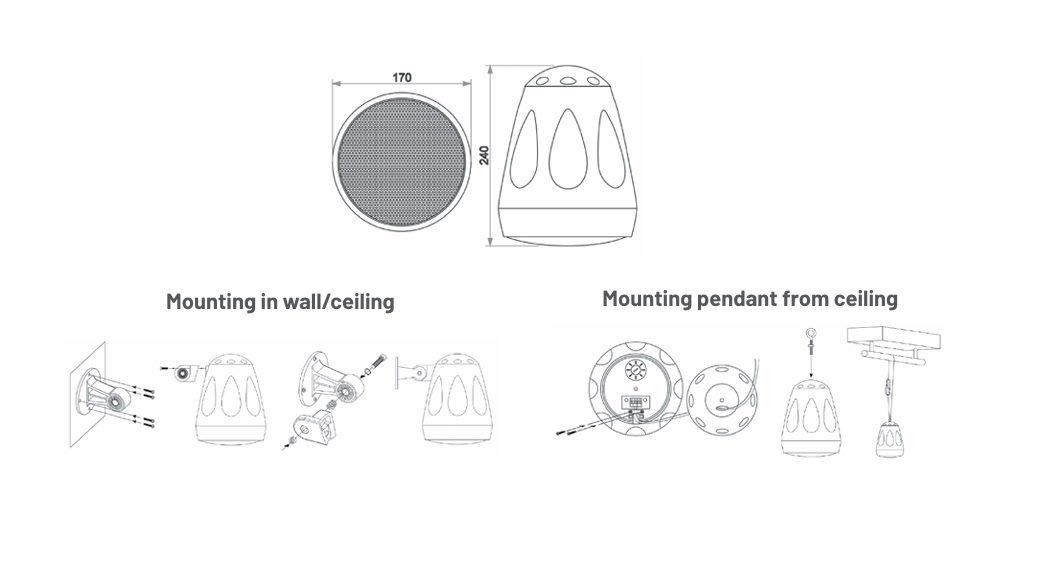

- Mounting: wall/ceiling or suspended from the ceiling
- 100 line or low impedance (8 ohms) connection
- Power selection (100 V)
- Mid/Bass (5.25 “) and treble (1”) speakers
SPECIFICATIONS
| Speaker | woofer 5,25”, tweeter 1” |
| Rated power (RMS) | 30 W |
| Power selection | 30, 15, 7,5 y 3,75 W (100 V) | 30 W (8 ?). Rotary switch |
| Sensitivity | 84 dB SPL (1 W, 1m, 1 kHz) |
| Sound pressure | 99 dB SPL (30 W, 1m, 1 kHz) |
| Frequency response | 110 ~ 20.000 Hz |
| Operating temperature | -30ºC ~ 90ºC |
| Protection degree | IP66 |
| Dimensions (mm) | 170 x 240 |
| Weight | 2,2 kg |
| Acabado | polypropylene & metallic grille. White colour RAL9003 |
| Mounting | swivel bracket or steel cable |
| Included accessories | swivel bracket for wall or ceiling mounting (includes 4 fixing screws) 2 screws and a plate for fixing the audio cable 1 m steel cable, an eyebolt and a nut for pendant mounting |
