FP 14000, the new flagship model of the FP+ Series, advances this tradition by further augmenting effective power output to effortlessly handle extreme low-frequency loads.The Regulated Switch Mode Power Supply (R.SMPS) has been updated to provide more sustained high power during extended bursts of low frequency content, while at the same time ensuring stable rail voltages even with wide fluctuations of external mains voltage. The forceful, high-current (83 A peak) output stage relies on LAB GRUPPEN’s patented Class TD topology, a breakthrough in amplifier technology that approaches the efficiency of Class D while retaining the sonic purity of proven Class B designs. A highly refined and efficient circuit layout further optimizes the interaction of R.SMPS and Class TD to produce the unprecedented power density of the FP 14000.
Features
- 14,000 Watt, 2-channel amplifier with up to 7,000 Watts output per channel and NomadLink network for monitoring and control
- Selectable gain plus scalable Voltage Peak Limiter (VPL) and bridge-mode operation allow custom configuration for any application
- 2 x 7,000 Watts into 2 Ohms, 2 x 4,400 Watts into 4 Ohms, 2 x 2,350 Watts into 8 Ohms, 2 x 1,200 Watts into 16 Ohms
- Proven and reliable Class-TD output stage delivers Class-A/B audio quality with Class-D efficiency
- Regulated Switch Mode Power Supply (R.SMPS) ensures constant power output at all times
- Intuitive DeviceControl software monitors and controls key functions via the NomadLink network
- Comprehensive protection scheme including current, voltage, DC, temperature, short circuit and open load warnings
- Efficient Intercooler copper cooling system dissipates more heat for extended peak output
- 2 x balanced analog audio inputs and 2 x link outputs on Neutrik XLR* connectors
- Binding post output connectors
- Removable dust filter grilles for increased air circulation
- Rugged 2U rackmount chassis for durability in touring applications
Specifications
General
| Number of amplifier channels | 2 |
| Peak total output all channels driven | 14000 W |
| Peak output voltage per channel | 195 V |
| Max output current per channel | 90 A peak |
Max output power (all channels driven)
| 2 ohms | 7000 W |
| 4 ohms | 4400 W |
| 8 ohms | 2350 W |
| 16 ohms | 1200 W |
Max output power bridged
| 2 ohms | Not recommended 1 |
| 4 ohms | 14000 W |
| 8 ohms | 8800 W |
| 16 ohms | 4700 W |
Performance
| THD 20 Hz – 20 kHz at 1 W | <0.1% |
| THD at 1 kHz and 1 dB below clipping | <0.05% |
| Signal to Noise Ratio | >112 dBA |
| Channel separation (Crosstalk) at 1 kHz | >70 dB |
| Input impedance | 20 kOhm |
| Output impedance @ 100 Hz | 19 mOhm |
Gain, Sensitivity and Limiters
| VPL, selectable per ch | 195, 170, 140, 116, 100, 80, 66, 54 V |
| VPL, when bridged 2 | 390, 340, 280, 232, 200, 160, 132, 108 V |
| Voltage Peak Limiter mode (per ch.) | Hard / Soft |
| Amplifier gain selectable (all channels) – rear-panel switches 2 | 23, 26, 29, 32, 35, 38, 41, 44 dB |
| Default gain | 38 dB |
| Level adjustment (per channel) | Front-panel potentiometer, 31 position detented from -inf to |

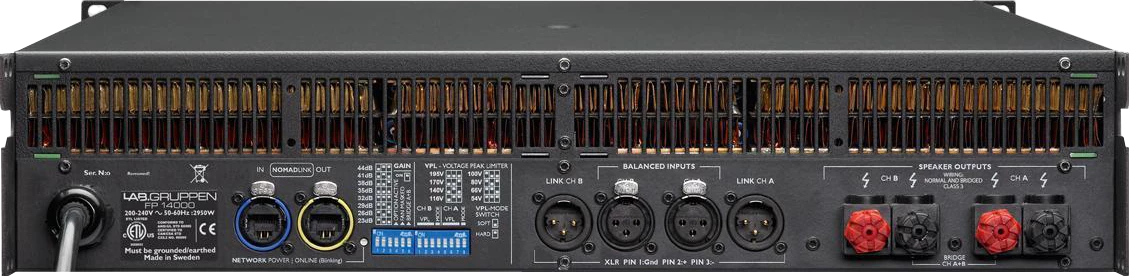

Connectors and Buttons
| Input connectors (per ch.) | 3-pin XLR, electronically balanced |
| Output connectors (per ch.) | Binding post |
| Output bridge mode | A+B – Ch. A is signal input source. A+B, C+D – Ch.’s A and C are input source |
| NomadLink network | On board, 2 x RJ45 connectors IN and OUT |
| Intelligent fans (on/off) | Yes, depending on presence of output signal |
| Power on/off and Remote enable on/off | Individual switches on front-panel |
| Cooling | Dual fan, front to rear airflow, no filter required, temperature controlled speed |
Front-panel user interface
| Common | NomadLink Network; Power Average Limiter (PAL)4; Power on |
| Per channel | Signal present / High-impedance; -10 dB and -4 dB output signal;Voltage Peak Limiter (VPL); Current Peak Limiter (CPL): Very High Frequency (VHF); High temperature; Fault; Mute |
Power
| Operating voltage, 230 V / 115 V nominal 3 | 130-265 V / 65 -135 V |
| Minimum power-up voltage, 230 V / 115 V | 171 V / 85 V |
| Power Average Limiter (PAL) 4 | Yes |
| Soft-start / Inrush Current Draw | Yes / max. 5 A |
| Mains connector | 230 V CE: 16 A, CEE7; 115 V ETL: 30 A Twist lock |
Dimensions
| Dimensions | W: 483 mm (19”), H: 88 mm (2 U), D: 396 mm (15.6”) |
Weight
| Weight | 12 kg (26.4 lbs) |
Finish
| Finish | Black painted steel chassis with black painted steel / aluminum front |
Approvals
| Approvals | CE, ANSI/UL 60065 (ETL), CSA C22.2 NO. 60065, FCC |
