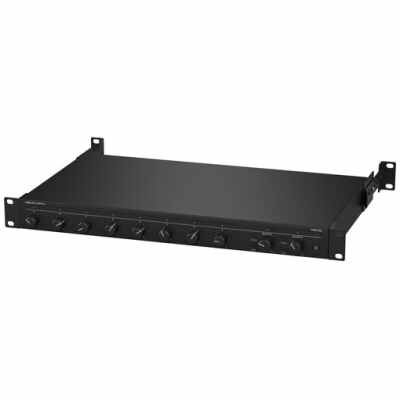

The CMA1202 features two 120W channels that are capable of delivering high-quality sound over both Low-Z (4/8 ohms) and High-Z (70/100V) loudspeaker configurations, offering flexibility on every channel. CMA1202 is easy to install and operate, even for non-technical personnel. It is ideally suited for bars, restaurants, retail destinations, hotels, corporate, education or other venues needing background music and/or a public address system.
FEATURES
- For Commercial & Industrial Applications
- 2 x 120W, 4/8 Ohms + 70/100V Operation
- 8 Mic/Line Inputs with Volume Control
- Individual Output Routing
- Individual Master Volume + Treble/Bass
- Switchable High-Pass Filter
- Direct Drive, Constant Power Technology
- GPI Remote Volume via RJ45 Connector

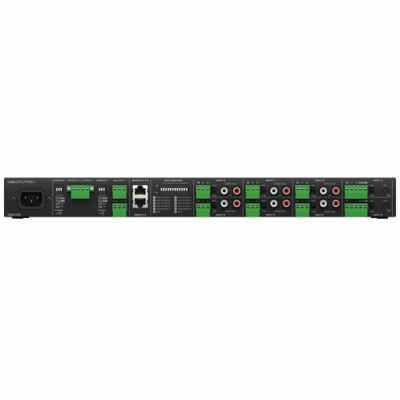

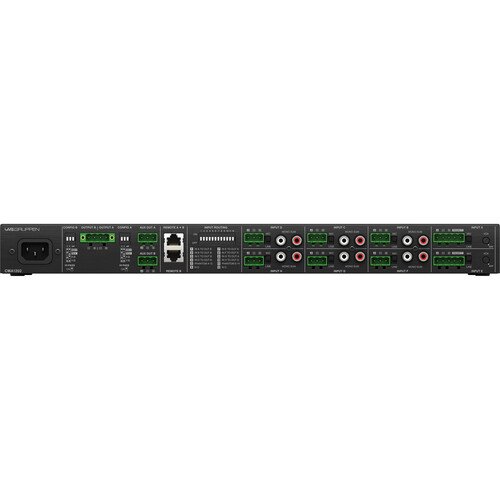

- Euroblock + RCA Inputs, Block Outputs
- Includes Mounting Hardware and Brackets
SPECIFICATIONS
Key Specs
| Number of Channels |
2
|
| Amplifier Power Rating |
4 Ohms / 8 Ohms / 70 V / 100 V:
2x 120 W Peak
|
| Load Impedance / Voltage |
Mono/Stereo:
4 / 8 Ohms per Channel (Minimum)
Mono/Stereo:
70 V (41 Ohms Minimum)
100 V (82 Ohms Minimum)
|
| Analog Audio I/O |
2x Block 5-Pin Balanced Line/Mic Input
6x Block 3-Pin Balanced Line/Mic Input
6x 2RCA TS Female Unbalanced Line Input
1x Block 4-Pin Speaker Output
2x Block 3-Pin Aux Output
|
| Digital I/O |
No
|
| Network I/O |
2x RJ45 Ethernet
|
| Rackmount Size |
1 U (with Included Hardware)
|
Amplifier
| Number of Channels |
2
|
| Amplifier Power Rating |
4 Ohms / 8 Ohms / 70 V / 100 V:
2x 120 W Peak
|
| Amplifier Class |
Class-D
|
| Load Impedance / Voltage |
Mono/Stereo:
4 / 8 Ohms per Channel (Minimum)
Mono/Stereo:
70 V (41 Ohms Minimum)
100 V (82 Ohms Minimum)
|
Performance
| Protections |
DC Fault, Overcurrent, Thermal, Ultrasonic
|
| Frequency Response |
20 Hz to 20 kHz +0.5/-2 dB
|
| Input Sensitivity |
Block Mic:
0.038 V / -26 dBu
Block Line:
1.23 V / +4 dBu
RCA Line:
0.62 V / -2 dBu
|
| SNR |
> 97 dBA
|
| Distortion |
< 0.05% (1/8th Rated Power)
|
| Crosstalk |
> 70 dB
|
Signal Processing
| Crossover |
Yes
|
| EQ |
2-Band Shelving EQ per Channel:
Treble: ±10 dB at 10 kHz
Bass: ±10 dB at 100 Hz
|
| Filters |
1x High-Pass:
80 Hz
|
| Ducking/Muting |
Yes
|
| Limiting |
Output
|
Connectivity
| Analog Audio I/O |
2x Block 5-Pin Balanced Line/Mic Input
6x Block 3-Pin Balanced Line/Mic Input
6x 2RCA TS Female Unbalanced Line Input
1x Block 4-Pin Speaker Output
2x Block 3-Pin Aux Output
|
| Digital I/O |
No
|
| Network I/O |
2x RJ45 Ethernet
|
| USB I/O |
No
|
| Phantom Power |
48 VDC
|
| Mobile App Compatible |
No
|
| Wireless |
No
|
Power
| AC Input Power |
Universal:
100 to 240 VAC, 50 / 60 Hz (T 6.3 A H 250 V)
|
| AC Power Connector |
1x IEC 15 A / NEMA 5-15
|
| Power Consumption |
4 Ohms:
70 W (1/8 Power)
|
Physical
| Rackmount Size |
1 U (with Included Hardware)
|
| Cooling |
Convection
|
| Dimensions |
17.2 x 1.7 x 9.8″ / 436.9 x 43.2 x 248.9Â mm
|
| Weight |
7.9Â lb / 3.6Â kg
|
