If ever there is an official “Audio Technology Hall of Fame”, it will definitely include a shrine to the iconic Teletronix LA-2A*. We pay homage to this audio-processing pioneer that has graced so many recordings, with our 2A-KT Classic Leveling Amplifier. And while vintage Teletronix LA-2As are extremely rare and expensive, the 2A-KT is amazingly affordable – and designed for the 21st Century. Mastering quality compression and limiting, at a price point that makes the 2A-KT equally at home in your studio – and your live rack!
Features
- Classic tube compressor/leveling amplifier modeled after the iconic Teletronix LA-2A*
- Completely discrete signal path
- Premium selection 12AX7, 12BH7 and EL84 tubes
- Lag-free optical attenuator based on original electroluminescent technology
- Custom-built Midas input and output transformers
- Frequency Response: 10 Hz to 20 kHz, +/- 1 dB
- Gain Limiting: 0 to 30 dB
- Ultra-fast attack time: 10 milliseconds
- Release time: 50 milliseconds to 5 seconds
- Adjustable stereo-link connection
- Variable pre-emphasis for digital audio recording and broadcasting transmission
- Vintage-style meter features gain reduction and output
- Transformer balanced inputs and outputs on Neutrik* XLR connectors
- Rugged 2U rackmount chassis for durability in portable applications
- Auto-ranging universal switch-mode power supply
Specifications
- Type:Tube/Optical
- Number of Channels:1
- Controls:Limit/Compress, Output Gain, Peak Reduction, Gain Reduction
- Frequency Response:10Hz-20kHz

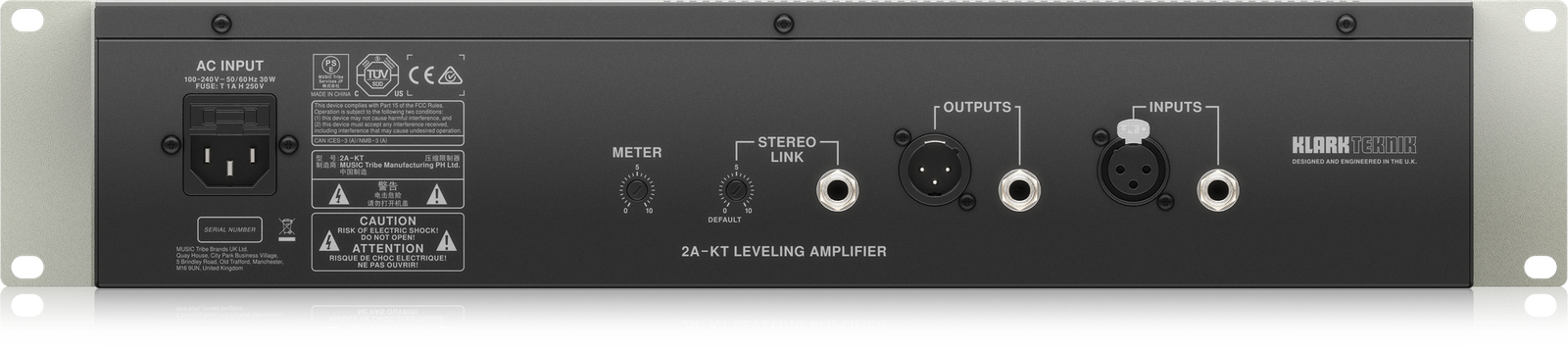

- Inputs:1 x XLR, 1 x 1/4″
- Outputs:1 x XLR, 1 x 1/4″
- Other I/O:1 x 1/4″ (stereo linking)
- Tubes:2 x 12AX7, 1 x 12BH7, 1 x EL84
- Rack Spaces:2U
- Power Source:Standard IEC AC connector
- Height:3.5″
- Depth:6.2″
- Width:19″
- Weight:6.4 lbs.
