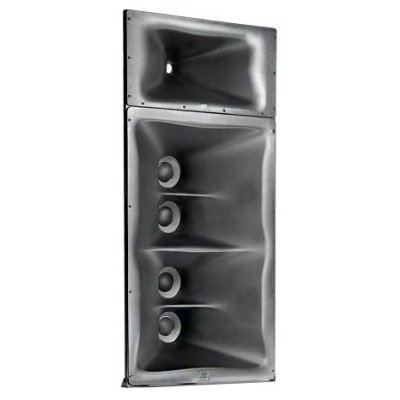

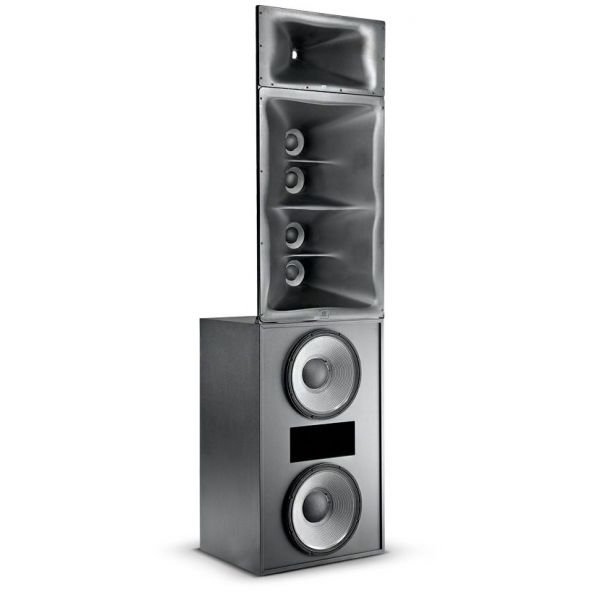

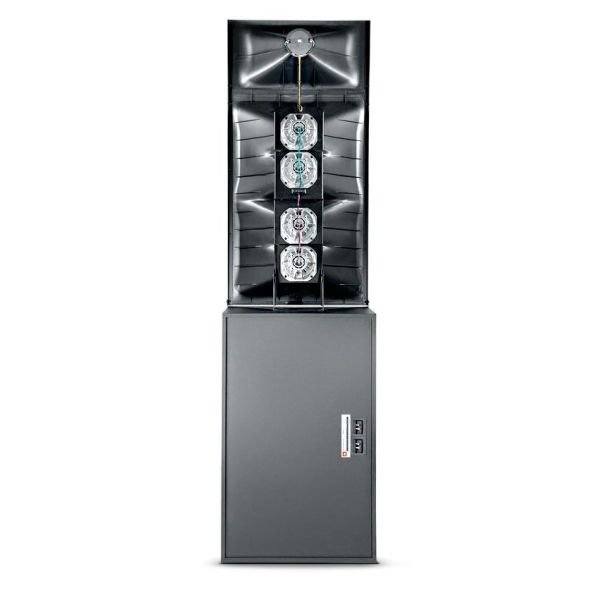

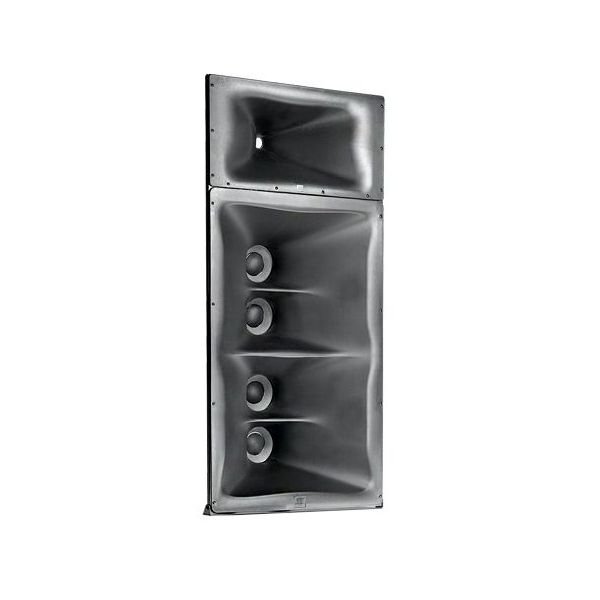

The passive JBL Professional 5742-M/HF mid-/high-frequency component is a replacement module for the 5742 4-way quad-amped cinema loudspeaker system that provides superior coverage, maximum power handling, and uniform acoustic power output, along with extremely low distortion.

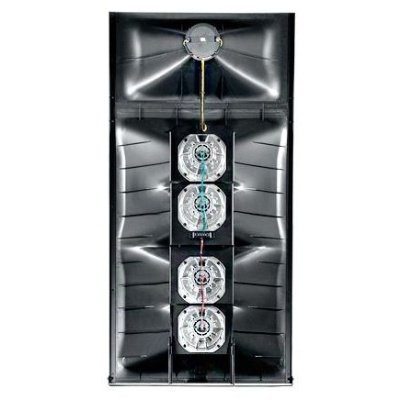

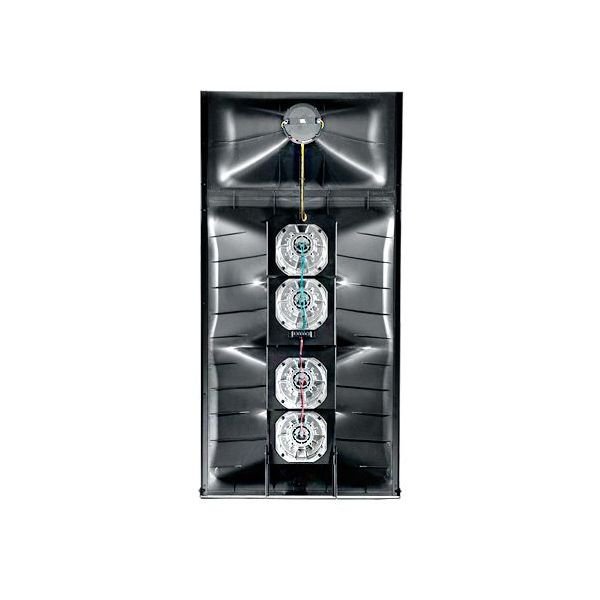

The four 8″ Differential Drive mid-drivers and a large format 4″ neodymium high-frequency compression driver are equipped with molded waveguides. The compression driver’s waveguide compensates for high-frequency spreading caused by perforated screens for greatly improved audience coverage. The ScreenArray design provides an ideal power response and directivity control with seamless transitions between acoustic sections.
Features
- 1400W midrange featuring four 8” Differential Drive transducers
- Large format 4” neodymium, damped titanium diaphragm, high-frequency compression driver
- Molded Optimized Aperture Waveguide technology for ultra-low distortion and extremely uniform frequency response
- JBL Patented SSC (Screen Spreading Compensation)
- Focused coverage technology
- Flat front waveguide design for easy baffle wall installation
Specifications
Installation Speaker
| Active or Passive | Passive |
| Speaker Configuration | 2-Way |
| Power Handling | For 2 Hours: 700 W 700 W 150 W |
| Impedance | 8 Ohms (Nominal) 4 Ohms (Nominal) |
Drivers
| HF Driver | 1 x 1.5″ / 38.1 mm Waveguide-Coupled Compression Driver |
| HF Voice Coil | 4″ / 101.6 mm |
| MF Driver | 4 x 8″ / 203.2 mm Horn-Loaded |
| MF Voice Coil | Dual 3″ / 76.2 mm |
| Magnet | Neodymium |
Performance
| Sensitivity | 115 dB SPL |
Connectivity
| I/O Connectors | Screw Terminal Speaker |
| Dimensions | 60.8 x 30 x 17.8″ / 1544.32 x 762 x 452.12 mm |
| Weight | 72.0 lb / 32.7 kg |
Packaging Info
| Package Weight | 105 lb |
| Box Dimensions (LxWxH) | 63 x 36 x 23″ |
