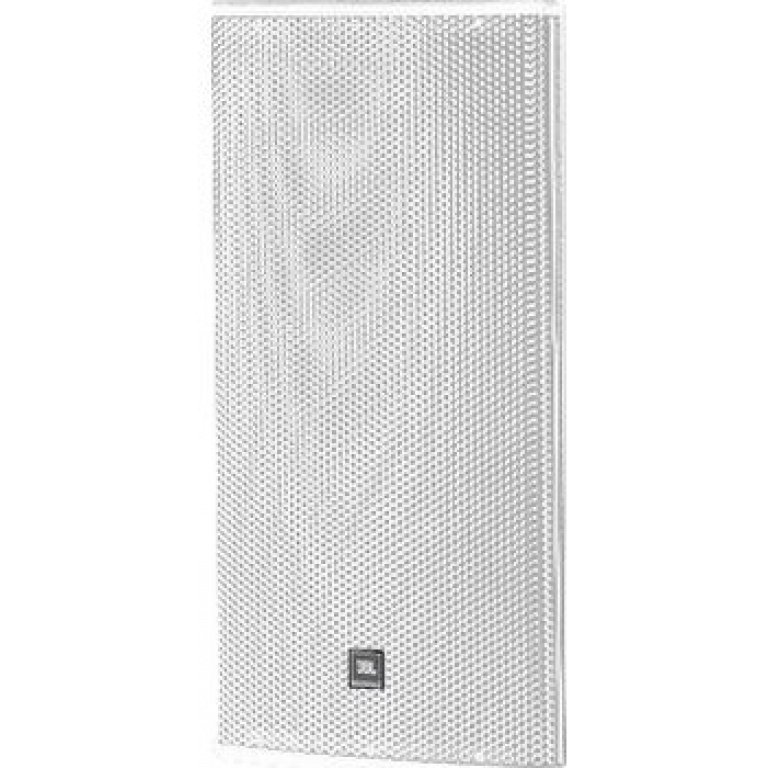

The white JBL Professional AM5215/95 Passive 2-Way 15″ Loudspeaker System is a versatile, medium-power speaker well suited for professional installations such as performing arts facilities, theatrical sound design, auditoriums, houses of worship, live music venues, night clubs, sports facilities, and theme parks. The AM5215/95 is comprised of the JBL Differential Drive, dual-voice coil and dual-magnetic gap 265H-1 15″ low-frequency driver, and 2408H-1 high-frequency 1.5″ exit, 1.5″ voice-coil compression driver. The large format PT Progressive Transition waveguide provides a 90 x 50° coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability. The AM5215/95 will perform as either a bi-amped or passive cabinet, at the flick of a switch.
FEATURES
- Medium Power, Lightweight, Full-Range
- 15″ Differential Drive Woofer
- 1.5″ Compression Driver
- Progressive Transition Waveguide
- Rotatable Horn for V/H Deployment
- 90 x 50° Coverage
- 41 Hz to 18 kHz Frequency Response
- NL4 speakON and Barrier Strip Inputs
- DuraFlex Finish
- M10 Threaded Attachments for Rigging
SPECIFICATIONS
Key Specs
| Speaker Type |
Passive Loudspeaker
|
| Configuration |
2-Way
|
| Total Passive Power Handling |
350 W / 1400 W Peak
|
| Nominal Impedance |
LF: 8 Ohms / HF: 8 Ohms
|
| LF Driver |
1x 15″ / 38 cm Woofer
Voice Coil: Dual 2″ / 50.8 mm
|
| HF Driver |
1x 1.5″ / 3.81 cm Compression Driver
Voice Coil: 1.5″ / 38.1 mm
|
| Frequency Range/Response |
35 Hz to 20 kHz (-10 dB)
41 Hz to 18 kHz (±3 dB)
|
| Configuration |
2-Way
|
| Enclosure Type |
Bass-Reflex
|
| Total Passive Power Handling |
350 W / 1400 W Peak
|
| Bi-Amp/Tri-Amp Power Handling |
Low Frequency (LF)
500 W / 2000 W Peak
Mid Frequency (MF)
40 W / 160 W Peak
|
| Constant Voltage / Transformer Taps |
No
|
| Nominal Impedance |
LF: 8 Ohms / HF: 8 Ohms
|
Drivers
| LF Driver |
1x 15″ / 38 cm Woofer
Voice Coil: Dual 2″ / 50.8 mm
|
| HF Driver |
1x 1.5″ / 3.81 cm Compression Driver
Voice Coil: 1.5″ / 38.1 mm
|
Performance
| Frequency Range/Response |
35 Hz to 20 kHz (-10 dB)
41 Hz to 18 kHz (±3 dB)
|
| Maximum SPL |
125 dB (LF, Continuous)
131 dB (LF, Peak)
129 dB (HF, Continuous)
135 dB (HF, Peak)
|
| Speaker Sensitivity |
98 dB SPL (Passive)
99 dB SPL (LF)
113 dB SPL (HF)
|
| Coverage Angle |
90° H x 50° V (Rotatable Horn)
|
Signal Processing
| Crossover Frequency |
1800 Hz
|
| EQ & Filters |
No
|
Connectivity
| Audio I/O |
1x speakON NL4 Input
1x Barrier Strip Input
|
Physical
| Color |
White
|
| Mounting |
15 x M10 Bracket Point (Rear, Top, Bottom, Each Side)
|
| Construction Material |
Plywood, Stainless Steel Grille
|
| Environmental Resistance |
No
|
| Dimensions |
30.7 x 16.5 x 19.8″ / 781 x 420 x 503 mm
|
| Weight |
55.1 lb / 25 kg
|
Packaging Info
| Package Weight |
60.5 lb
|
| Box Dimensions (LxWxH) |
32 x 20 x 18.5″
|
