Description

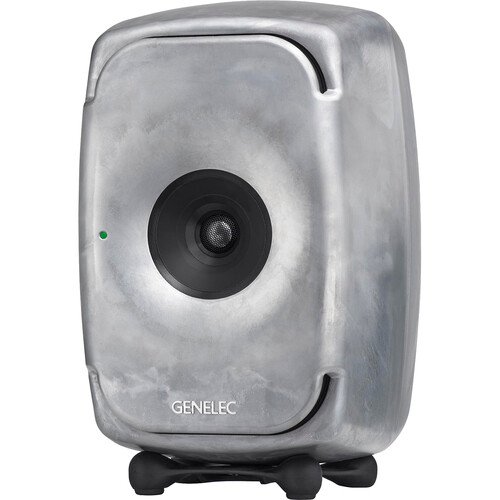

Styled in a finish dubbed “raw” by this item’s manufacturers, the Genelec 8341A is a point-source monitor meant for near-field applications in the realm of pro audio. It features a coaxial design which nestles driver and tweeter—as well as two 6.6” woofers—in one location, thus aligning their acoustical axes, and securing an accurate point of sonic radiation. It’s also worth noting the 8341A’s Intelligent Signal Sensing technology, as well as the connections this technology affords you: ISS automatically detects whether analog or digital sources are being run into the monitor and allows the speaker to produce sound accordingly. To put it another way, one XLR input accepts analog signals, the other XLR takes AES/EBU, and the monitor itself automatically selects the input source.

FEATURES

  • Dual 6.6″ Acoustically Concealed Woofers
  • Minimum Diffraction Coaxial Driver
  • Accepts Analog or AES/EBU Signals
  • Outputs AES/EBU Daisy-Chaining
  • Directivity Control Waveguide
  • SAM Technology for Automatic Tuning
  • Networkable via GLM Software
  • Minimum Diffraction Enclosure
  • Reflex Port Design
  • Iso-Pod Stand Included

SPECIFICATIONS

Key Specs

Monitor Type & Configuration
Active 3-Way
Total Power Output
550 W
Tweeter
1x 0.7″ / 19 mm Metal Dome
Midrange
1x 3.5″ / 9 cm Cone
Woofer
2x 6.7″ / 17 cm Oval Cone
Audio I/O
1x XLR 3-Pin Balanced Input (10 Kilohms)
Digital Audio I/O
1x XLR 3-Pin AES3 Input
1x XLR 3-Pin AES3 Output
Network I/O
2x RJ45 Ethernet
Wireless
No
Number of Included Monitors
Single Monitor
Enclosure
Bass-Reflex/Ported, Shielded
Total Power Output
550 W

Drivers

Tweeter
1x 0.7″ / 19 mm Metal Dome
Midrange
1x 3.5″ / 9 cm Cone
Woofer
2x 6.7″ / 17 cm Oval Cone
Amplifiers
HF: 150 W
MF: 150 W
LF: 250 W

Performance

Frequency Response
45 Hz to 20 kHz ± 1.5 dB
Maximum Sound Pressure Level (SPL)
118 dB
Total Harmonic Distortion (THD)
0.05%
Maximum Input Level
+24 dBu
Analog Input Sensitivity/Gain
+36 to -6 dBu (Continuously Variable)
Protections and Limiting
Driver Protection

Signal Processing

EQ
1x HF Tilt: -4 to +2 dB at 5 kHz
1x LF Tilt: -6 to -2 dB at 800 Hz (2 dB Increments)
Filters
2 x High-Pass at 38 Hz
2 x Low-Pass at 37 kHz
16 x Parametric Notch Filter
Crossover Frequency
Low-Pass: 500 Hz
High-Pass: 3 kHz

Connectivity

Audio I/O
1x XLR 3-Pin Balanced Input (10 Kilohms)
Digital Audio I/O
1x XLR 3-Pin AES3 Input
1x XLR 3-Pin AES3 Output
Network I/O
2x RJ45 Ethernet
USB
No
Wireless
No

Power

AC Input Power
100 to 240 VAC, 50/60 Hz
Power Consumption
0.5 W (Standby)
16 W (Idle)
250 W (Maximum)

Physical

Color
Raw Silver
Monitor Orientation
Vertical
Enclosure Material
Aluminum
Mounting Points
2x M6 (Rear Panel)
1x M10 (Bottom Panel)
Dimensions (W x H x D)
9.3 x 13.8 x 9.6″ / 237 x 351 x 243 mm
Weight
21.6 lb / 9.8 kg

Packaging Info

Package Weight
26.21 lb
Box Dimensions (LxWxH)
23.1 x 12.5 x 12.4″
