The Extron MP 101 Microphone Preamplifier is a compact mic preamp for applications where a microphone must be connected to a line level audio input on a device such as a switcher or line level mixer. Mic level signals are boosted up to balanced or unbalanced line level signals. This preamp also allows a microphone to be connected to the Aux/Mix input on the Extron MediaLink® series of switchers.

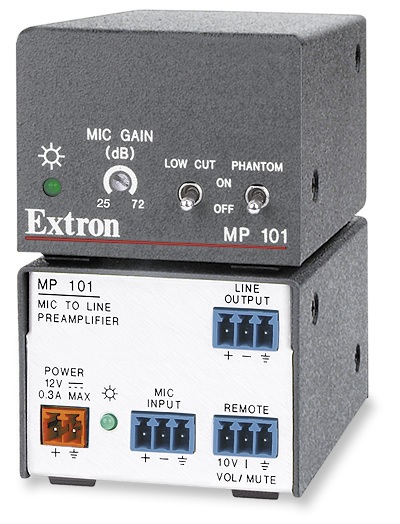

The front panel of the MPÂ 101 features a continuous gain control for precise adjustment of input microphone level. Toggle switches are provided to engage 48Â volt phantom power for compatibility with condenser microphones, and a switchable low cut filter at 75Â Hz to reduce rumble and wind noise picked up by the microphone. Input and output connections are provided on the rear panel using captive screw connectors.
The MP 101’s output can be remotely controlled for microphone level adjustment by using the VCMÂ 100 or VCMÂ 200 Series volume and mute or VCÂ 50 volume controllers. The MPÂ 101 is housed in a 1U, one-eighth rack width metal enclosure for numerous installation options
FEATURES
- Input: Microphone level on captive screw connector
- Output: Line level on captive screw connector
- Selectable 48 volt phantom power for condenser microphones
- Precise mic input gain adjustment from +25 to +72 dB — A continuous, rotary trim pot allows for precise setting of microphone input gain from +25 to +72 dB to accommodate various microphone signal levels.
- Remote volume and mute control port — In basic installations without control systems, this port allows the MP 101 to be remotely controlled using the optional Extron VCM 100 or VCM 200 Volume and Mute Controller or VC 50 Volume Controller.
- Selectable 75 Hz low cut filter — Reduces rumble and wind noise.
- Rack-mountable 1U, one-eighth rack width metal enclosure
- External Extron Everlast™ power supply included, replacement part #70-1175-01 — Provides worldwide power compatibility with high?demonstrated reliability and low power consumption. This power supply is compatible with the ZipClip 50 Mounting Kit.
SPECIFIACATIONS
| Audio | |||
|---|---|---|---|
| Â Â Â Gain | Adjustable, +25 dB to + 72 dB | ||
|    Frequency response | 20 Hz to 20 kHz, ±0.1 dB | ||
| Â Â Â THD + Noise (with a 10 Hz to 80 kHz bandwidth filter) | 0.03% when input is -48 dBV and output is +4 dBu. 0.14% when input is -60 dBV and output is -10 dBV |
||
| Â Â Â S/N | 92 dB at maximum output (unweighted, with a 10 Hz to 80 kHz bandwidth filter) | ||
| Â Â Â CMRR | >70 dB @ 20 Hz to 20 kHz | ||
| Â Â Â Low cut filter | 75 Hz (18 dB per octave) | ||
| Â Â Â Equivalent input noise | <126 dBV (unweighted, with a 10 Hz to 80 kHz bandwidth filter) | ||
| Audio input | |||
| Â Â Â Number/signal type | 1 mono, balanced | ||
| Â Â Â Connectors | |||
| Â Â Â Â Â Â MP 101 | (1) 3.5 mm captive screw connector, 3 pole | ||
| Â Â Â Â Â Â MP 101 AAP, MP 101 D | 1 female 3-pin XLR | ||
| Â Â Â Impedance | 2k ohm balanced | ||
| Â Â Â Nominal level | -60 dBV or -48 dBV | ||
| Â Â Â Maximum level | -1.5 dBu, (balanced) at 1% THD+N | ||
|
|||
| Audio output | |||
| Â Â Â Number/signal type | 1 mono, balanced | ||
| Â Â Â Connectors | (1) 3.5 mm captive screw connector, 3 pole | ||
| Â Â Â Impedance | <150 ohms balanced | ||
| Â Â Â Maximum level (Hi-Z) | >+25 dBu, balanced at 1% THD+N | ||
| Control/remote — preamp | |||
| Â Â Â Contact closure | (1) 3.5 mm captive screw connector, 3 pole | ||
| Â Â Â Contact closure pin configuration | Pin 1 = +10 VDC, 2 = volume/mute (variable voltage), 3 = Gnd | ||
| Â Â Â Volume control voltage range | 0 V (mute) to 10 V (maximum volume) | ||
| Â Â Â Extron remote key pad control | (1) 3.5 mm captive screw connector, 3 pole | ||
| General | |||
|    Power supply | External Input: 1002-240 VAC, 50-60 Hz Output: 12 VDC, 0.5 A, 6 watts |
||
| Â Â Â Power input requirements | 12 VDC, 0.3 A | ||
|    Ambient temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
||
| Â Â Â Cooling | Convection, no vents | ||
| Â Â Â Mounting | |||
| Â Â Â Â Â Â Rack mount | |||
| Â Â Â Â Â Â Â Â Â MP 101 | Yes, with optional 1U rack shelf or back of the rack mounting kit | ||
| Â Â Â Â Â Â Â Â Â MP 101 AAP | Yes, with optional faceplate or frame | ||
| Â Â Â Â Â Â Furniture mount | |||
| Â Â Â Â Â Â Â Â Â MP 101 | Yes, with optional mini under-desk mounting kit | ||
| Â Â Â Â Â Â Â Â Â MP 101 D | Yes, in a decorator-style opening | ||
| Â Â Â Â Â Â Pole mount | |||
| Â Â Â Â Â Â Â Â Â MP 101 | Yes, with optional mini projector mount kit | ||
| Â Â Â Enclosure type | Metal | ||
| Â Â Â Enclosure dimensions | |||
| Â Â Â Â Â Â MP 101 | 1.7″ H x 2.2″ W x 3.0″ D (1U high, one-eighth rack wide) (4.3 cm H x 5.6 cm W x 7.6 cm D) (Depth excludes connectors.) |
||
| Â Â Â Â Â Â MP 101 AAP | |||
| Â Â Â Â Â Â Â Â Â Faceplate | 1.4″ H x 3.5″ W x 0.1″ D (3.5 cm H x 8.9 cm W x 0.3 cm D) (double space high AAP plate) |
||
| Â Â Â Â Â Â Â Â Â Device | 1.1″ H x 2.75″ W x 1.8″ D (2.8 cm H x 7.0 cm W x 4.6 cm D) (Depth excludes connectors.) |
||
| Â Â Â Â Â Â MP 101 D | |||
| Â Â Â Â Â Â Â Â Â Faceplate | 2.6″ H* x 1.3″ W x 0.1″ D (6.6 cm H* x 3.3 cm W x 0.3 cm D) (Fits the opening in a 1 gang decorator-style faceplate.) *Height is 3.8″ (9.7 cm) including mounting tabs. |
||
| Â Â Â Â Â Â Â Â Â Device | 2.75″ H x 1.1″ W x 1.8″ D (7.0 cm H x 2.8 cm W x 4.6 cm D) (Depth excludes connectors.) |
||
| Â Â Â Product weight | 0.3 lbs (0.1 kg) | ||
| Â Â Â Regulatory compliance | CE, C-tick, c-UL, UL, FCC Class A, ICES, VCCI | ||
| Â Â Â Product warranty | 3 years parts and labor | ||
| Â Â Â Everlast power supply warranty | 7 years parts and labor | ||
|
|||
|
|||
| (4462-D11) | |||
| Shipping Dimensions and Weights | ||||
|---|---|---|---|---|
| Â Â Â Â Part # | Height | Width | Depth | Weight |
| Â Â Â Â 60-718-10 | 2.44″ (6.2 cm) | 7.13″ (18.1 cm) | 9.5″ (24.1 cm) | 1.69 lbs (0.76 kg) |
