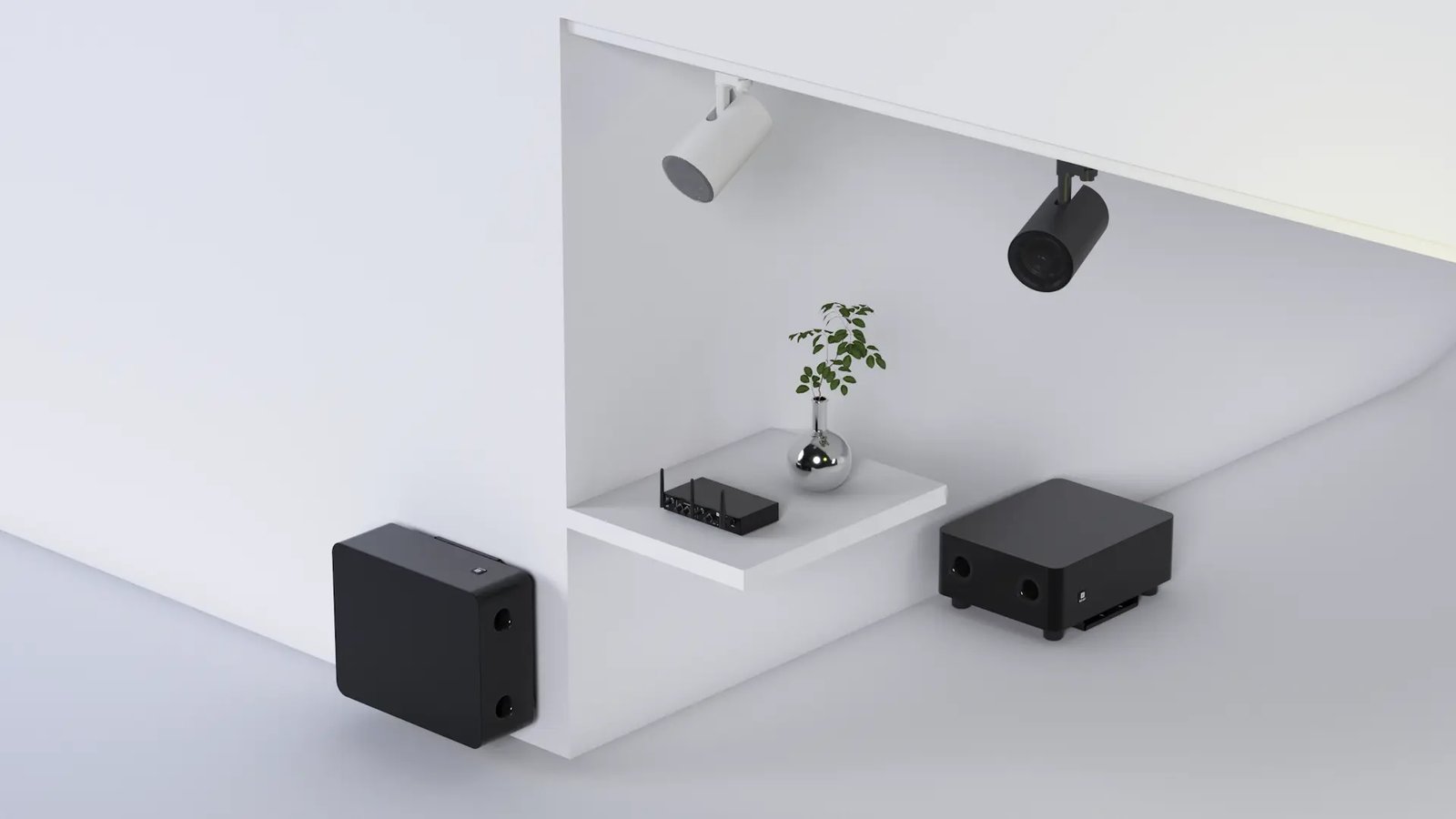

WiLD-SB18 is a compact self-powered 8″ subwoofer with wireless audio reception under the control of the transmitter WiLD-TX. WiLD is the ultimate long-distance wireless audio solution. Designed for retail spaces, museums, and other markets, WiLD offers a cost-effective, robust, and user-friendly installation that blends seamlessly into any environment. Experience superior sound quality with minimal visual impact. Upgrade to WiLD today and transform your audio experience!
FEATURES
- Subwoofer self-powered WiLD receiver, including 8” woofer and bass reflex system.
- Universal, internal power supply (100-240VAC 50-60 Hz).
- 1x WiLD wireless audio signal received, from the transmitter it is paired to.
- 1x Line In Analogue stereo unbalanced Signal. 3 pin Euro block.
- Rear panel controls for:
- * WiLD pair button that allows pairing the receivers to the transmitter quickly and easily.
- * LED indicator.
- * Source (input) selection.
- * Low Pass Filter selection (40, 60, 80, 100, 120, 150, 200, 250 Hz, Full Range).
- * StandBy Selection (20min, 1, 2, 4 Hours, ON Hz – )
- * General volume control.
- Recommended maximum range from a WiLD-TX transmitter to any WiLD paired receiver: 150 metres, with direct line of sight.
APPLICATIONS
Retail Education Corporate Sports & Wellness Hospitality
SPECIFICATIONS
WiS (RF WIRELESS DIGITAL AUDIO)
Frequency band
1880 – 1930MHz,EU DECT, US DECT
Coverage range
Up to 150m from a TX to any paired RX, direct line of sight
Audio channels
1 stereo audio ch received from the WiLD-TX network
Audio transmission
16 bit uncompressed, 48kHz SR
Digital Audio Sample size
16bit
Digital Audio Sampling rate
48kHz
Digital Audio Frequency Response
10Hz – 15kHz (-1dB)
Digital Audio converters
ADC Resolution: 24 bits
Dynamic range
ADC: 96 dB
Dynamic range
ADC: 96 dB
Latency
From TX Analog Audio IN to RX Speaker <26ms
Pairing time
Up to 60s
SYSTEM
Effective Freq. Range
57Hz-693Hz (-10dB)
Sensitivity
92 dB (1W/1m)
Maximum SPL
112 dB continuous / 118 dB peak
TRANSDUCERS
Ways
1-way full range
Driver
8″ woofer
Nominal impedance
4?
POWERED
Power
100W RMS / 150W peak
Audio inputs
Wireless Audio: Digital, Mono
Line in: ST unbalanced 3-pin Euroblock
Line in: ST unbalanced 3-pin Euroblock
Audio outputs
Internal Loudspeaker: Analog, Mono, Self powered
THD + Noise
<1% @1Hz Full power
Signal Noise Ratio
>110dB @100W RMS
Input sensitivity
-8dBV / 10k? (wireless Audio)
-15 dBV / 10k? (line in)
-15 dBV / 10k? (line in)
ELECTRICAL
Power supply
Universal, internal power supply
AC mains requirement
100-240VAC @ 50-60Hz
AC mains connector
standard 2-pin AC plug
Power consumption
150W
Power consumption standby
?2W
Ventilation
Convection cooled
MONITORING AND CONTROL
Volume control
Led display, +/- volume buttons
Other controls
PAIR: via WiLD button
LP Filter: via volume buttons
StandBy: via volume buttons
LP Filter: via volume buttons
StandBy: via volume buttons
LED Indicators
Status
Auto standby time
20min, 1H, 2H, 4H, On
Auto standby threshold
>50 dB
PHYSICAL
Installation options
Floor, Wall-mount brackets
Enclosure material
MDF
Mounting system
Metal brackets
Operating temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Max: 40°C ; 104°F
Operating humidity
<85% HR
Storage temperature
Min: -10°C ; 14°F
Max: 50°C ; 122°F
Max: 50°C ; 122°F
Storage humidity
<90% HR
Included accessories
1x EU AC voltage cord (3×1-1,5m) , 1 UK AC voltage cord (3×1-1,5m), 4x wall screws, 4x wall plugs, 2x Wall-mount brackets, 12x screws.
Finished colour
Black (RAL 9005)
Dimensions
450 x 193 x 360 mm / 17.72 x 7.60 x 14.17 in. (WxHxD)
Weight
9.1 kg / 20.06 lb
Pieces per box
1 unit
Shipping dimensions
550 x 382 x 460 mm / 21.65 x 15.04 x 18.11 in. (WxHxD)
Shipping weight
11.5 kg / 25.35 lb
