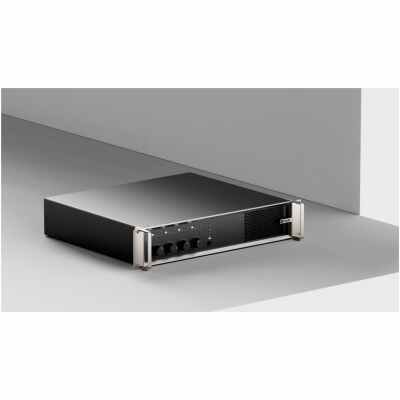

Ecler VIDA-24Q 4x600W Digital Amplifier with DSP, Dante Networking & Audio Playback

Ecletr VIDA-24Q is a 2400W digital amplifier, with 4 amplified outputs that can be independently configured in high (100/70V) or low (8/4/2ohm) impedance. The VersaPower technology, developed by Ecler, allows an asymmetrical power distribution, and thanks to the Smart VersaPower tool it helps installers by facilitating a smart and fast configuration. In addition, the Class D amplification technology as well as the configurable 4-outputs auto standby and sleep mode functions, both configurable, further improve energy efficiency. This device offers a wide range of possibilities thanks to its 4 analogue and 4 Dante/AES67 digital inputs, audio player – with microSD slot for local audio files – as well as signal generator, plus 2 auxiliary line outputs and Dante/AES67 digital outputs. All these features are managed from its intuitive web application which, among other functionalities, allows signal routing – matrix -, audio signal processing – such as equalisation or limiters -, priority management, GPIO configuration through events, as well as calendar events, playlist management and SD card content, thus facilitating the start-up of the audio-visual installation, its maintenance and customisation. Thanks to the Android/iOS/Web application available to the end user, the audio installation can be managed by them in an easy, intuitive, and customised way.

FEATURES

• 4 amplified outputs VersaPower asymmetrical 2400W power management
• 4 Dante outputs and 4 Dante/AES67* (*supported from firmware version v1.02 or higher)
• 2 auxiliary outputs
• 4 analogue inputs
• MicroSD/SDHC audio player
• Internal matrix and signal processing
• Web application for device configuration
• Smart power management VersaPower
• Control and scheduled events for automation
• Customized User Panels
• Remote control user application for iOS/Android/Web
• Ultra low power consumption mode “Sleep Mode”
• Compatible with the Remote Monitoring & Control Platform EclerCLOUD.

APPLICATIONS

Education   Corporate   Leisure   Sports & Wellness   Hospitality

SPECIFICATIONS

Technical Specifications

• Amplifier Type: Class D
• Total Output Power: 2400W
• Number of Channels: 4
• Impedance Options:
  • 2Ω, 4Ω, 8Ω, 70V, 100V
• Output Power per Channel:
  • 100V: 600W/channel
  • 70V: 600W/channel
  • 8Ω: 600W/channel
  • 4Ω: 600W/channel
  • 2Ω: 600W/channel
• Maximum Output Power:
  • 100V: 2400W (single channel)
  • 70V: 2000W (single channel)
  • 8Ω: 1400W (single channel)
  • 4Ω: 2400W (single channel)
  • 2Ω: 1600W (single channel)
• Frequency Response: 15 Hz – 25 kHz (–3 dB, 1W, any load)
• Signal-to-Noise Ratio: 95 dB (A-weighted, 40 dB gain, 20 Hz – 20 kHz)
• Total Harmonic Distortion + Noise (THD+N): <0.1% (1 kHz, from 0.1W power and above)
• Damping Factor: 500 (8Ω, 20 Hz – 1 kHz)
• Audio Conversion:
  • Sampling Rate: 48 kHz
  • Resolution: 24-bit
  • Dynamic Range: 114 dB

Inputs and Outputs

• Analog Inputs:
  • 4 x Balanced (Euroblock connectors)
• Digital Inputs:
  • 4 x Dante™/AES67 (RJ45 connectors)
• Analog Outputs:
  • 2 x Balanced (Euroblock connectors, AUX)
• Digital Outputs:
  • 4 x Dante™/AES67 (RJ45 connectors)
• Control Ports:
  • 1 x Ethernet (RJ45)
  • 1 x GPIO (Euroblock connector)
  • 1 x Mute (Euroblock connector)
  • 1 x microSD/SDHC slot (up to 2 TB, FAT16/FAT32/NTFS)

Control and Automation

• Web Application:
  • Device configuration and management via embedded web application
• Mobile Application:
  • Remote control via iOS/Android/Web applications
• Automation Features:
  • Scheduled events
  • GPIO configuration through events
  • Calendar events
  • Playlist management
  • SD card content management

Power and Energy Efficiency

• Power Supply: 100–240V, 50/60 Hz
• Power Consumption:
  • 230W (idle)
  • 607W (1/4 power, 4Ω, all channels)
  • 362W (1/8 power, 4Ω, all channels)
  • 72W (standby)
  • 4.1W (sleep mode)
• Cooling: Active (fans)

Physical Specifications

• Rackmount: 2U (19″ rack format)
• Dimensions (WxHxD): 482.6 x 88 x 410 mm
• Weight: 9.3 kg
• Operating Temperature: –10°C to 50°C
• Storage Temperature: –10°C to 50°C
• Relative Humidity: 5% to 85% (non-condensing)
