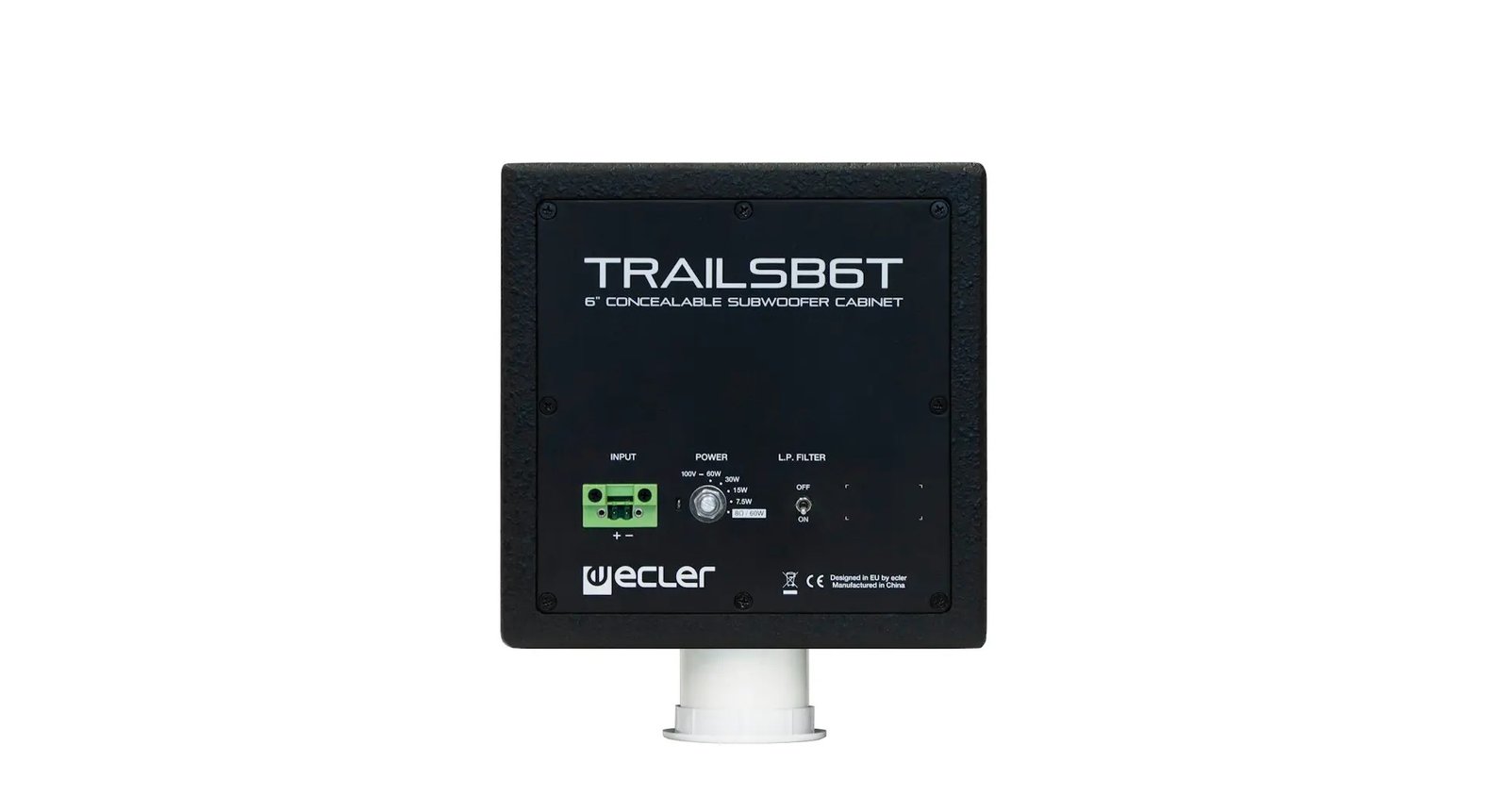

The Ecler TRAILSB6T is a wooden subwoofer reinforcement cabinet with a very compact format. It has been specifically designed to fulfil permanent installation requirements, where low visual impact and integration with decoration are a must: concealed in false ceilings or partition walls, on walls’ surface, etc. Installation accessories included.Available in black finish.
FEATURES
- Wooden subwoofer reinforcement for TRAIL103-type cabinets, in-ceiling loudspeakers or small surface-mount cabinets
- Concealed in false ceilings or partition walls, on walls’ surface, etc
- Coupling pipe for false ceilings and grid included
- Installation accessories included
- Available in black
APPLICATIONS
Retail   Leisure   Sports & Wellness   Hospitality
SPECIFICATIONS
System Specifications
- Type: Passive subwoofer reinforcement cabinet
- Frequency Response: 50–260 Hz (-10 dB)
- Power Handling:
- RMS: 60W
- Peak: 240W
- Sensitivity: 86 dB (1W/1m)
- Maximum SPL:
- Continuous: 106 dB
- Peak: 112 dB
- Nominal Impedance: 8Ω
- Recommended Amplifier Power: 120W RMS
Driver Configuration
- Driver: 6.5″ subwoofer
- Ways: 1-way subwoofer

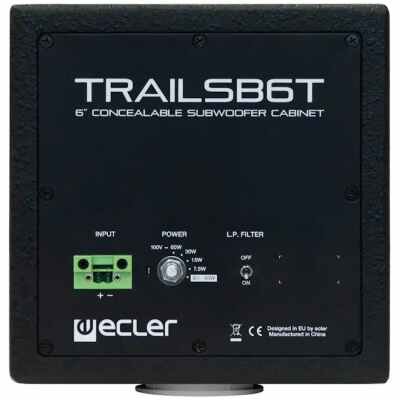

Connectivity & Controls
- Input Connector: Euroblock
- Power Selector:
- 100V Line: 60W / 30W / 15W / 7.5W
- 70V Line: 30W / 15W / 7.5W / 3.75W
- 8Ω: 60W
- Low-Pass Filter Selector: OFF / 150Hz
Physical & Environmental
- Enclosure Material: Wooden (TBC)
- Mounting System: Cabinet
- Installation Options: Concealed in false ceilings, partition walls, or mounted on walls
- Included Accessories: Coupling pipe for false ceiling and grille, installation accessories
- Color: Black (RAL 9005)
- Dimensions (WxHxD): 200 x 200 x 320 mm
- Weight: 6.5 kg
- Operating Temperature: -10°C to 40°C
Packaging Contents
- TRAILSB6T Subwoofer
- Installation Accessories: 4 metal fittings and 16 screws for securing the loudspeaker
- Coupling Bar
- Coupling Bar Trim Grille
- Euroblock Connector
- User’s Quick Guide
- Warranty Card
