Description

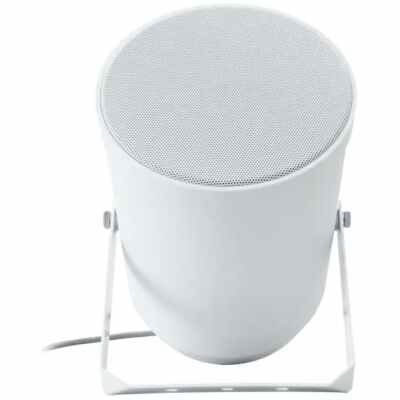

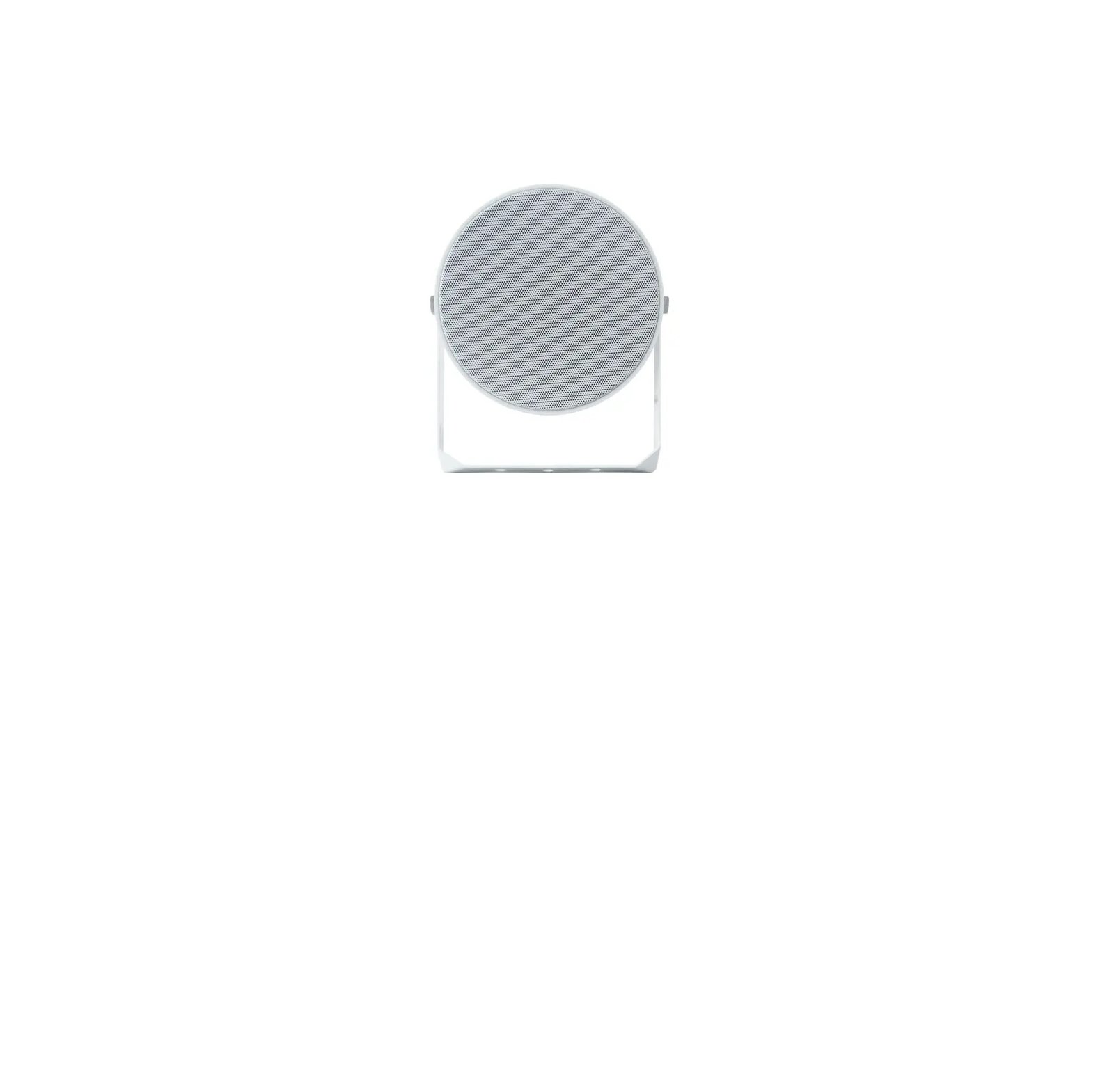

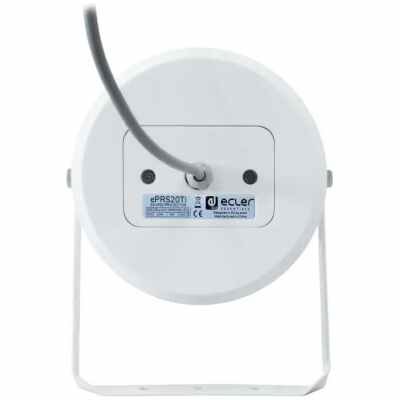

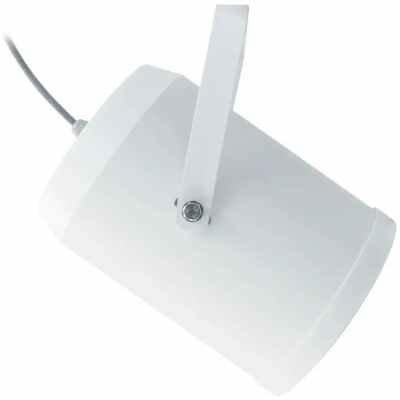

The Ecler ePRS20Ti is a 20W sound projector, carefully selected for the most widespread 70/100V applications: paging and background Music. They offer durability and an optimal voice and music reproduction. Made of reinforced ABS and IP55 certified, ideal for high performance outdoors.

FEATURES

  • Water-resistant ABS sound projector
  • Suitable for outdoor applications
  • Power tappings for 70V and 100V
  • IP-55 rating.
  • EASE Win file available
  • Available in white (RAL9016)



APPLICATIONS

Retail   Corporate   Leisure

SPECIFICATIONS

System Specifications

  • Driver: 6.5″ full-range speaker
  • Power Handling: 20W RMS / 80W Peak
  • Sensitivity: 96 dB (1W/1m)
  • Maximum SPL: 109 dB continuous / 115 dB peak
  • Frequency Response: 170 Hz – 19 kHz (-10 dB)
  • Coverage Angle: 151° x 151° (HxV)
  • Impedance Options: 100V: 20W / 10W / 5W; 70V: 10W / 5W / 2.5W
  • Recommended Amplifier Power: 40W RMS

Physical & Environmental

  • Enclosure Material: Reinforced ABS
  • Grille Material: Aluminum
  • Finish: White (RAL9016)
  • Dimensions: 170 mm (Ø) x 245 mm (L) / 6.7″ x 9.6″
  • Weight: 1.8 kg / 3.97 lb (including accessories)
  • Cable Length: 350 mm / 13.8″
  • IP Rating: IP55 (IEC60529 Certified)
  • Operating Temperature: -20°C to +60°C (-4°F to +140°F)
  • Operating Humidity: <85% RH
  • Storage Temperature: -20°C to +60°C (-4°F to +140°F)
  • Storage Humidity: <90% RH
