Ecler CSAM612T Rack Mixer – 6 In / 2 Out, 3-Band EQ, 1U Analog Audio Mixer

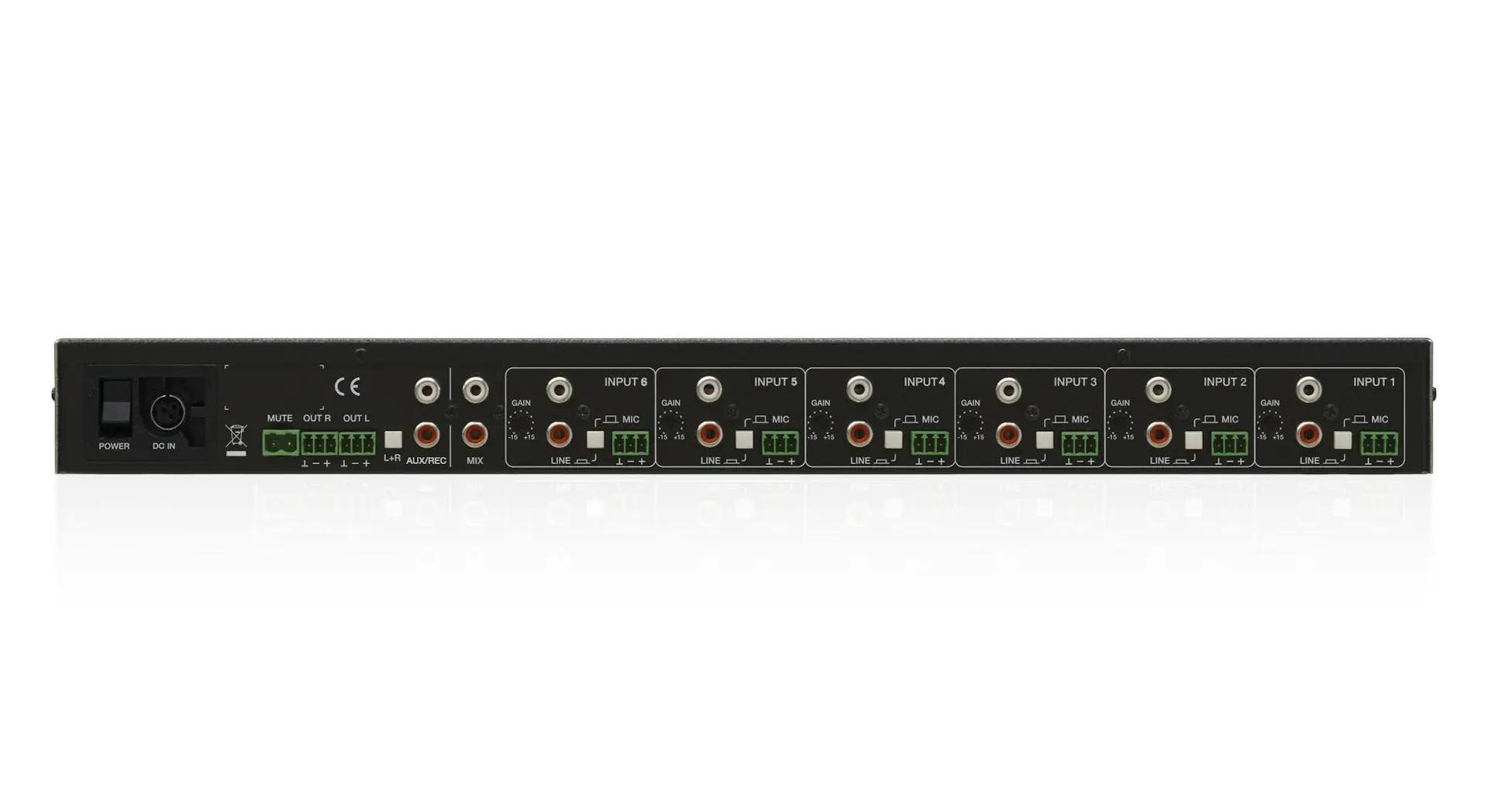

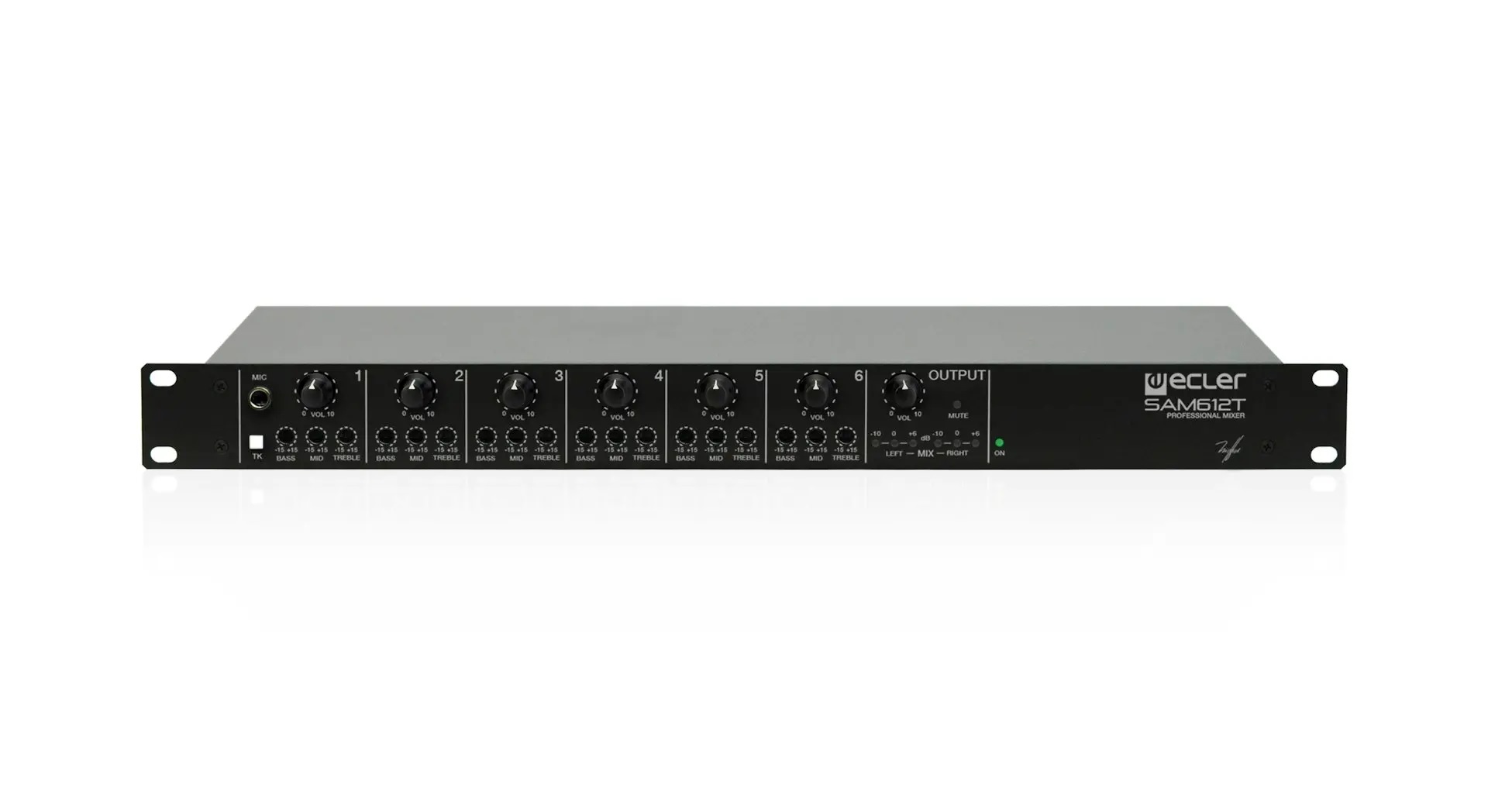

SAM612T is an installation audio mixer in standard rack format, featuring 6 MIC/LINE ST inputs + 1 ST MIX input and 1 ST MAIN output + 1 ST REC output. Each input has a dedicated 3-band tone control, a feature which is fundamental to get a perfect microphone mix in an installation. Input 1 includes talkover (priority) function over the mix bus and additional front panel jack connector. Main output ST/MONO mode switch and MUTE port for external dry contact triggering.

FEATURES

• 6 input channels, 2 main outputs 19” installation mixer
• Micro sensitivity level can be adjusted on the back panel
• +18V Phantom Power available in all “MIC” inputs
• Direct micro input on front panel, channel 1
• Includes a talkover assigned to “INPUT 1” with internal release time adjustment
• Three-band tone controls for each channel, accessible with a screwdriver
• Vu-meter for the mix signal
• Two internally adjustable output levels
• Recording output
• Direct access to the mixing bus allowing you to connect another mixer and increase the number of inputs
• Remote MUTE control affecting all inputs for connecting fire detection systems other safety devices.
• Mono/stereo switch

APPLICATIONS

Retail   Education   Corporate   Sports & Wellness   Hospitality

SPECIFICATIONS
