Description

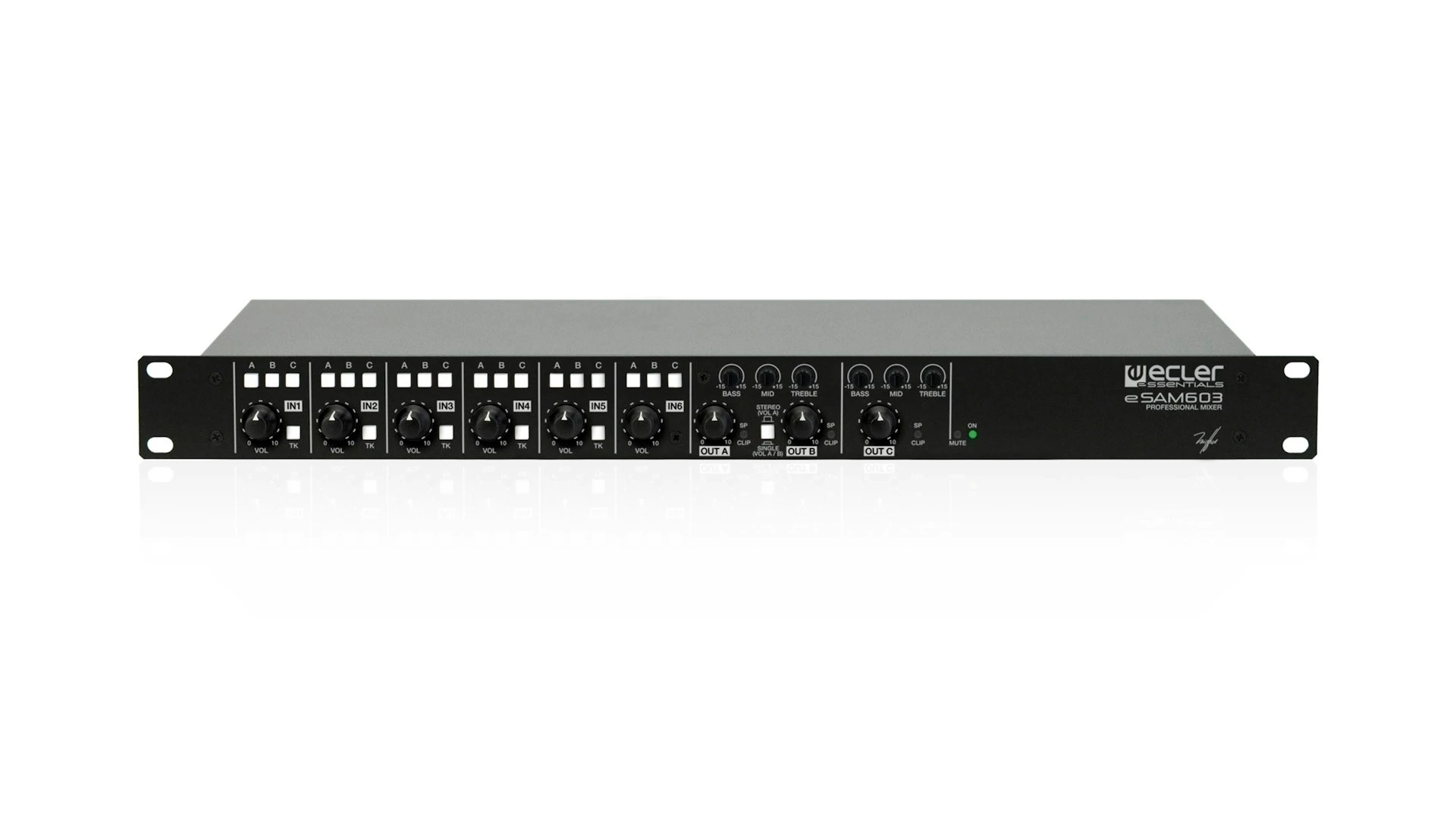

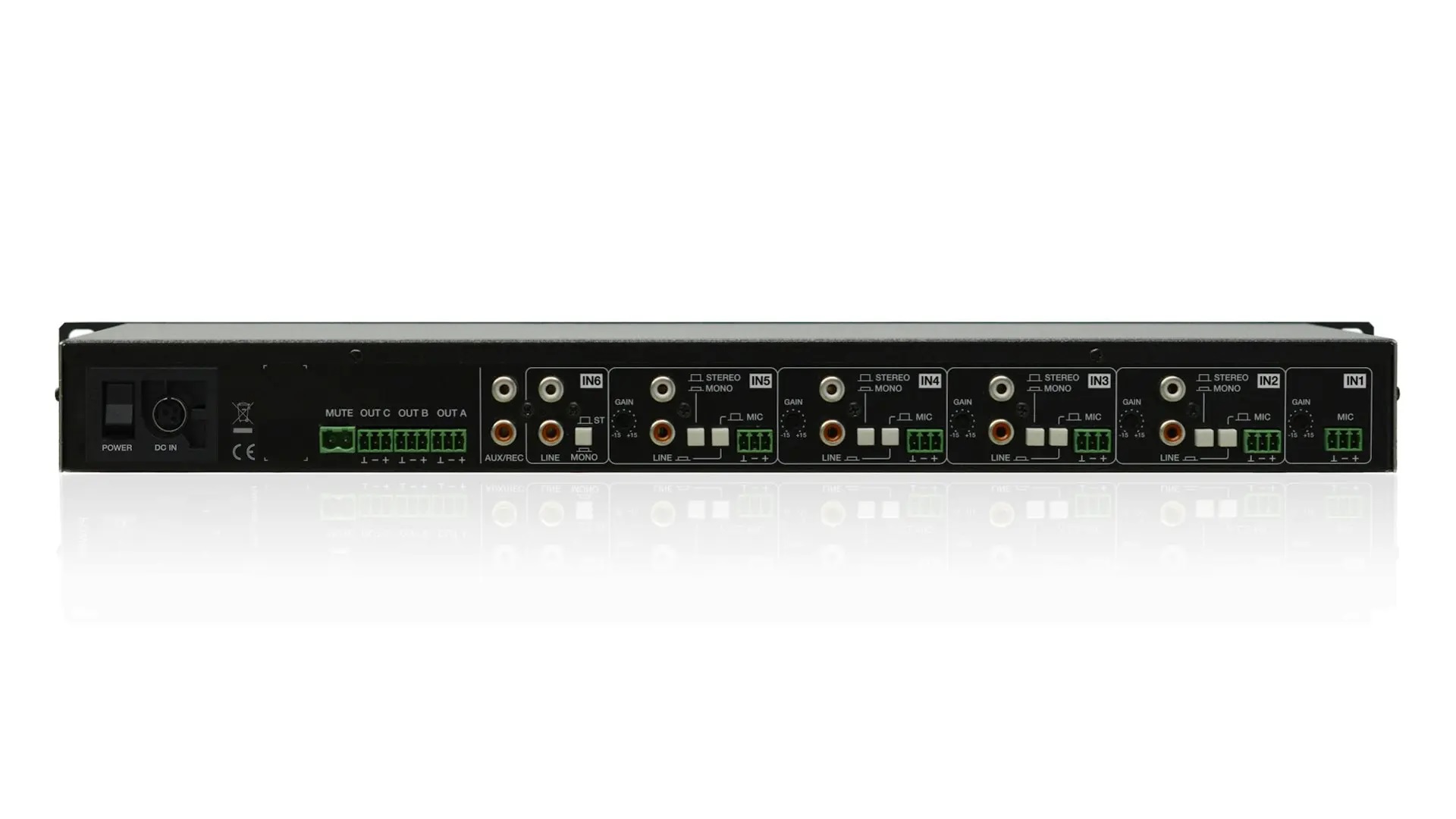

eSAM603 is an installation audio mixer in standard rack format, featuring 1 MIC input + 4 MIC/LINE ST inputs + 1 LINE ST input and 3 outputs that can be configured as 1 stereo couple + 1 mono or 3 independent mono. Each output can get a dedicated mix from the available inputs and has a 3-band tone control. Talkover (priority) function is assignable to each input from IN1 to IN5 over the mix output buses. ST/MONO mix switch for the A/B outputs and MUTE port for external dry contact triggering.

FEATURES

  • 4 MIC / ST LINE inputs
  • 1 ST LINE input
  • 1 MIC input
  • 1 ST output or 2 x mono output (A and B outputs)
  • 1 mono output (C output)
  • Independent inputs routing for zones A, B, C
  • 1 AUX/REC output
  • Independent 3-band EQ control for outputs A/B and output C
  • MUTE port triggered by external contact closure
  • Switchable talkover function, from IN1 to IN5 over A, B, C outputs



APPLICATIONS

Retail   Education   Corporate   Sports & Wellness   Hospitality

SPECIFICATIONS

ANALOGUE AUDIO INPUT PORTS

Number of input ports

4, MIC/LINE
1, MIC
1, LINE ST

Connection type

MIC: 3-pin Euroblock
LINE: RCA

Input sensitivity

IN 2-5 LINE: 0dB
IN 6 LINE: 0(-6)dB internally selectable
IN 1-5 MIC/BAL: -35 dB

Input impedance

IN 2-5 LINE: 50kΩ
IN 6 LINE: 50kΩ
IN 1-5 MIC/BAL: >1kΩ

CMRR

MIC >60dB @ 1 kHz

Phantom voltage

+18VDC

ANALOGUE AUDIO OUTPUT PORTS

Number of output ports

1 ST/2 MONO main mix output and one MONO output

Connection type

Main: 3-pin Euroblock
AUX/REC: RCA

Output impedance

OUT: 600?
AUX/REC: 10k?

DEVICE CONTROL

Tone Control

2 x 3-band tone control section (A/B and C)

Tone Frequency Cut

BASS 100Hz ±15dB
MID 2kHz ±15dB
TREBLE 10kHz ±15dB

Talkover

Yes

Control Buttons

Output destination switches, Talkover switch, STEREO (VOL A)/SINGLE button, (VOL A/VOL B) switch, MIC/LINE selector, MONO/ST switch, Mains switch POWER

Status Indicators

SP/CLIP LED, MUTE LED, ON LED

REMOTE CONTROL CONNECTIONS

GPIs

MUTE control port NO/NC

ELECTRICAL

Power supply

Universal external power supply (multi-plug)

AC mains requirement

100-240 VAC + External PSU 17.5VDC

AC mains connector

IEC mains inlet connector

Power consumption

18 VA

PHYSICAL

Operating temperature

Min: -10°C ; 14°F
Max: 40°C ; 104°F

Operating humidity

<85% HR

Storage temperature

Min: -10°C ; 14°F
Max: 40°C ; 104°F

Storage humidity

<90% HR

Installation options

19″ rack format (1RU)

Dimensions

482.6 x 44 x 120 mm / 19 x 1.73 x 4.72 in. (WxHxD)

Weight

2.1 kg / 4.63 lb

Shipping dimensions

TBC

Shipping weight

TBC

SIGNAL

THD + Noise

LINE <0.005%
MIC BAL <0.04%
