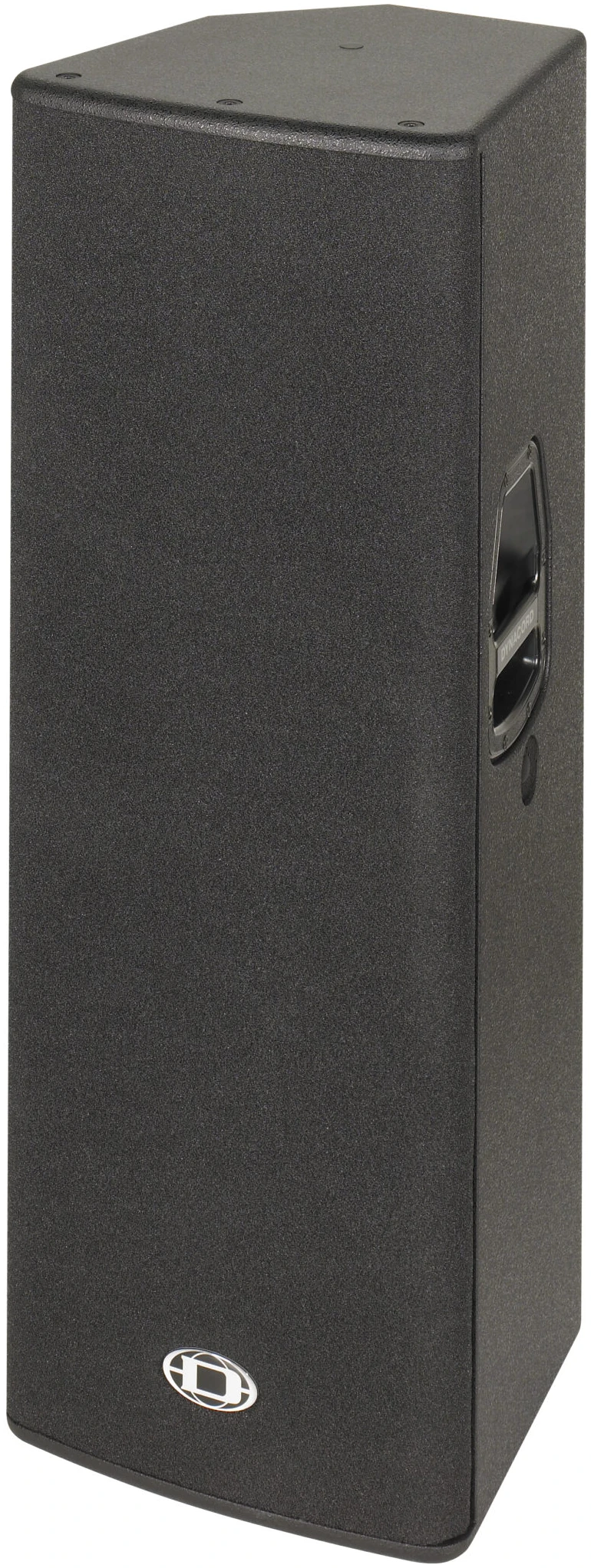

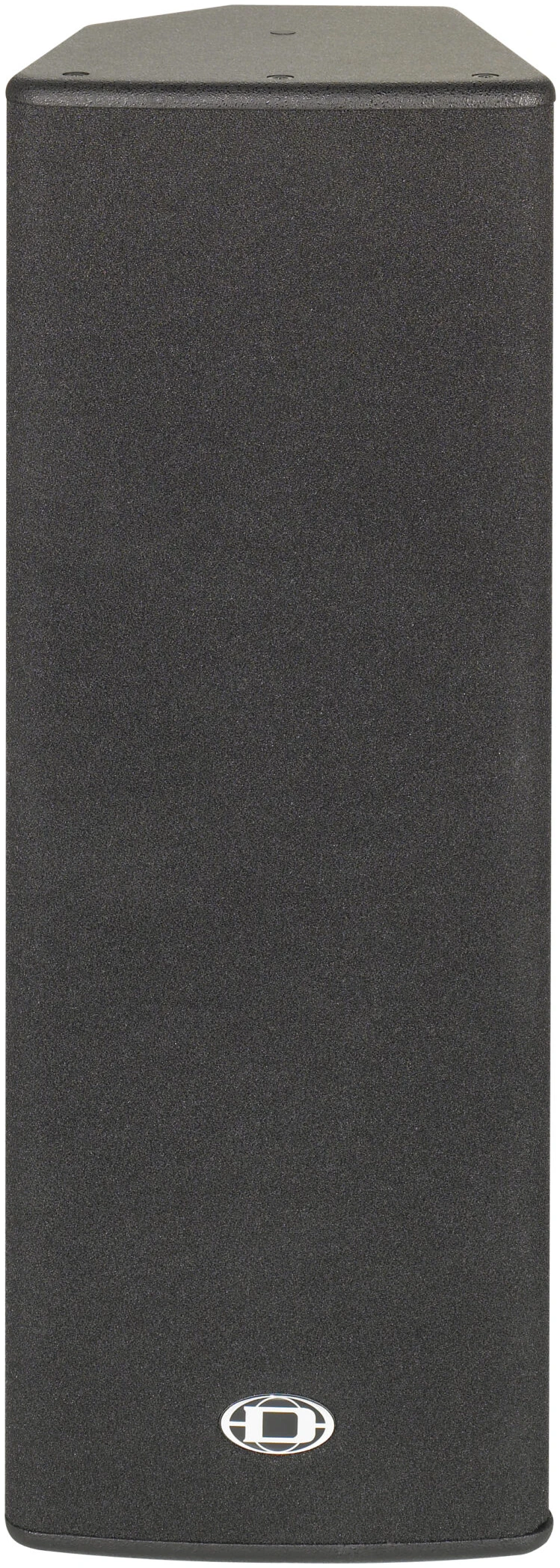

The Dynacord VL 212 is a high-performance, passive 2-way loudspeaker designed for demanding live sound applications, fixed installations, and professional touring environments. Engineered for versatility and exceptional audio fidelity, the VL 212 combines advanced acoustic design, robust construction, and flexible deployment options, making it an ideal choice for a wide range of professional audio applications.
FEATURES
- 2x 12″ Passive 2-Way High-Power Multi-Functional 2-Way Cabinet, 800W 4 Ohms
- Rotatable CAD-optimized 90° x 45° Constant Directivity Horn
- Switchable to Biamped Mode
- 12″ Neodymium DND 15400 Woofer, 1.4″ Neodymium ND6 Driver
- Voice Coil Tracking Protection
- Also available in white
SPECIFICATIONS
| Cabinet | Full-Range |
| Configuration | Passive 2-Way Switchable to biamped mode |
| Nominal impedance | 4 Ω |
| Rated power RMS | 800 Watts |
| Program power | 1600 Watts |
| Peak power | 3200 Watts |
| SPL 2,83 V / 1m 2W / 4 Ω | 105 dB |
| Max. SPL 1m (calculated with peak power) | 137dB |
| Frequency range (-10dB) Full range | 80Hz — 19kHz |
| Frequency range (-10dB) measured with H5000-RCM26 preset | 50Hz — 19kHz |
| Coverage angle 1 kHz -6dB | 90° * 45° |
| Passive crossover frequency | 1.5kHz |
| Active crossover frequency | 1.5kHz 24dB/Oct. Linkwitz-Riley, 1,5kHz Linear-Phase FIR |
| Voice coil tracking protection | Yes |
| Component HIGH Order No. | Electro-Voice ND6-8 Neodymium D361493 |
| Component LOW Order No. | 2 x DND 12350 D366559 |

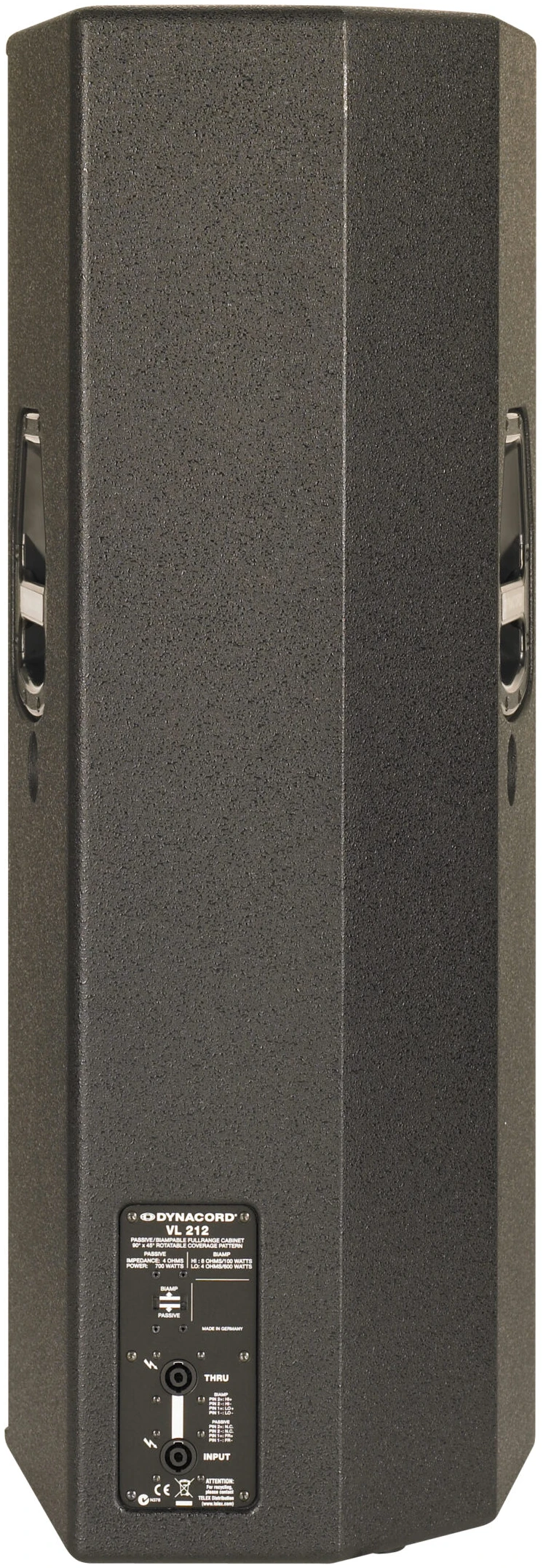

| Connectors Full-Range | 1+, 1- |
| Wired through | 2+, 2- |
| Connectors Biamped | Lo 1+, 1- Hi 2+, 2- |
| Wired through | 1+, 1-, 2+, 2- |
| Connector model | Speakon 2x NL4 MPR |
| Dimensions (WxHxD) | 385x1035x374mm (15.13″ x 40.75″ x 14.72″) |
| Net weight | 34kg (74.95 Ibs) |
| Shipping weight | 38.5kg (84.87 Ibs) |
| Enclosure material | Birch plywood |
| Finish | Black, 2-component paint |
| Grille | Powder coated steel, acoustic foam |
| Handles | 2 |
