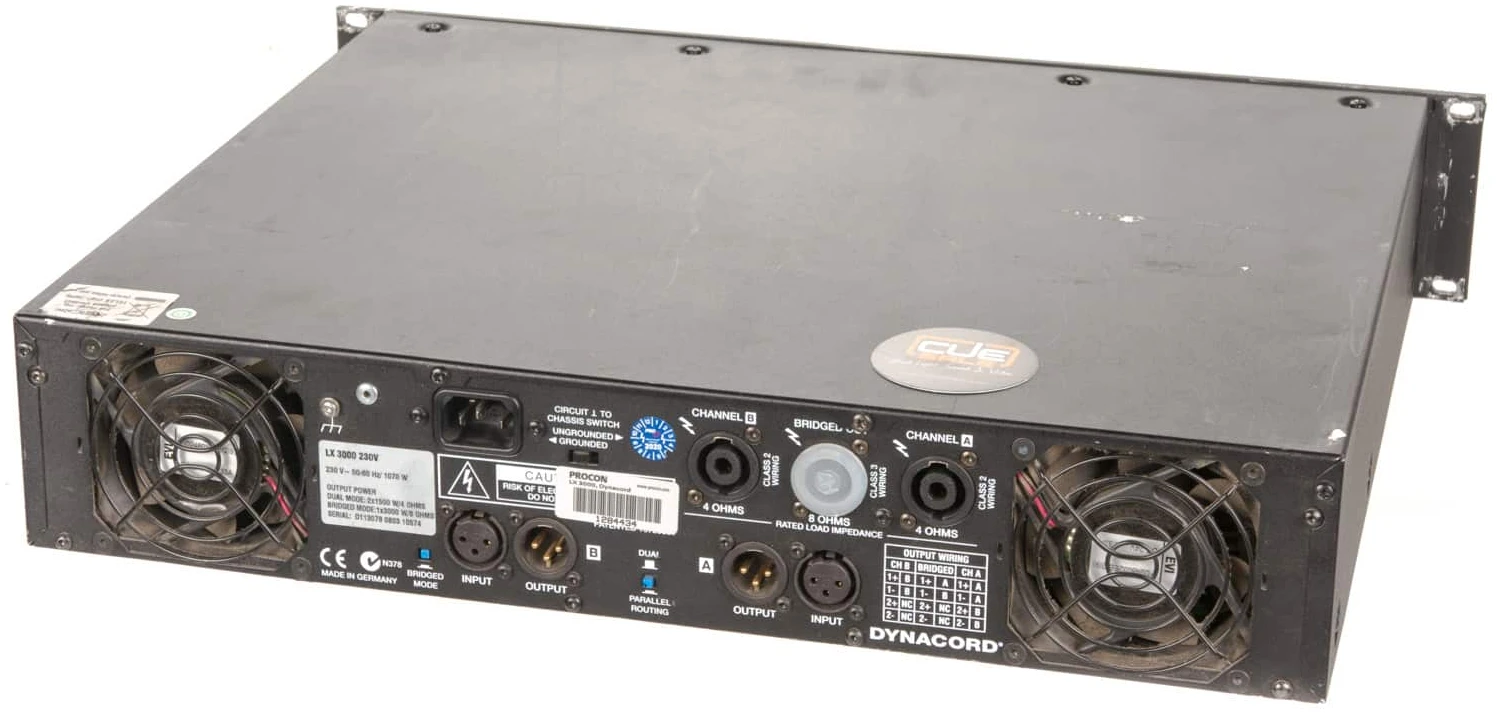

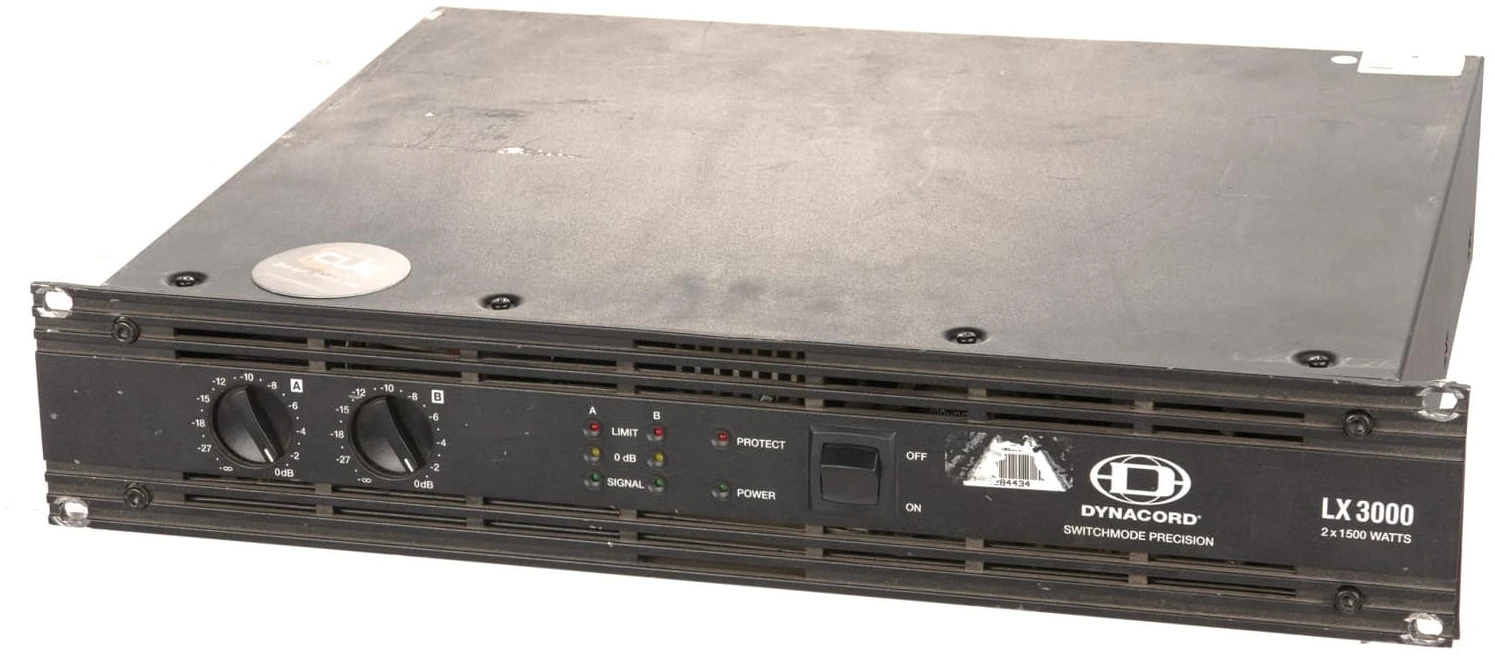

Dynacord LX- 3000 Amplifier 2x – 1500 Watt / 4 Ohm

With an output rated at 2 x 2100 watts into 2 ohms and 2 x 1500 watts into 4 ohms, this is the ideal power amplifier for small to medium-sized full-range cabinets and MF/HF components in active multiway systems.

For decades, DYNACORD has been one of the leading manufacturers in the pro audio sector and has established a secure position in the amplifier market thanks to the excellent audio performance,absolute reliability and high stability of the Linear Precision series. With their outstanding operational security, which guarantees years of problem-free use, the amplifiers of the Linear Precision series are now the standard for a wide variety of full-range and multi-way loudspeakers systems in professional venues as diverse as theatres, stadiums, discotheques, clubs and concert halls.

FEATURES

• Manufacturer: Dynacord
• Number of Channels: 2
• Digital Amplifier: No
• RMS Output in Watt @ 4Ohm: 2×1500
• Weight (kg): 8.7
• Cooling: Air Cooled
• 100V: No
• DSP: No
• Outputs: XLR/Speakon
• Inputs: XLR
• Limiter: Yes
• 2ohms steady: Yes
• Amplifier Class: Class H
• GroundLift: No
• Switching Power Supply: No
• Installation Height (HE): 2
• Installation Depth (cm): 38.4

SPECIFICATIONS

• Load Impedance 2 O, 4 O, 8 O
• Max. Mid-band Output Power, THD = 1%, 1kHz 2 O – 2100 W, 4 O – 1500 W, 8 O – 900 W
• Rated Output Power, THD < 0.1%, 20Hz … 20kHz W, 4 O – 1200 W, 8 O – 900 W
• Max. Single Channel Output Power, Dynamic Headroom, IHF-A 2 O – 2900 W, 4 O – 1800 W, 8 O – 1000 W
• Max. Single Channel Output Power, Continuous, 1kHz 2 O – 2600 W, 4 O – 1700 W, 8 O – 950 W
• Max. Bridged Output Power, THD = 1%, 1kHz W, 4 O – 4200 W, 8 O – 3000 W
• Maximum RMS Voltage Swing, THD = 1%, 1kHz 95 V
• Power Bandwith, ref. 1kHz, THD =1%, half power @ 4 ohms 10Hz … 60kHz
• Voltage Gain, ref. 1kHz 32.0 dB
• Input Sensitivity, rated power @ 8 ohms, 1kHz +7.0 dBu (1.74 V rms)
• THD at rated output power, MBW = 80kHz, 1kHz < 0.05%
• IMD-SMPTE, 60Hz, 7kHz < 0.02%
• DIM 30, 3,15kHz, 15kHz < 0.05%
• Maximum Input Level +22 dBu (9.76 V rms)
• Crosstalk, ref. 1kHz, at rated output power < -80 dB
• Frequency Response, ref 1kHz 15Hz … 40kHz (-1dB)
• Input Impedance, active balanced 20 kohms
• Damping Factor, 1kHz > 300
• Slew Rate 38 V/µs
• Signal to Noise Ratio, A-weighted 108 dB
• Output Stage Topology Class H
• Power Requirements 100V, 120V, 220V, 230V, 240 V; 50Hz … 60Hz (factory configured)
• Power Consumption, 1/8 max. output power @ 4 ohms 1070 W
• Protection Audio Limiters, High Temperature, DC, HF, Back-EMF, Peak current Limiters Inrush Current Limiters, Turn-On delay
• Cooling Front-to rear, 3-stage fans
• Ambient Temperature Limits +5° … +40° ( 40°F … 105°F )
• Safety Class I
• Dimensions ( W x H x D ) mm 483 x 88.1 x 384
• Weight 8.70 kg (19.2 lbs)
