Description

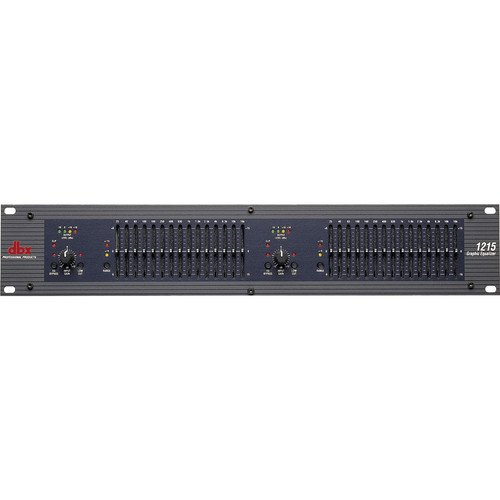

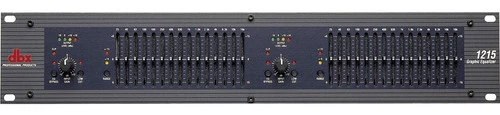

The dbx 1215 is a dual-channel, 15-band 2/3 octave graphic equalizer. It was designed to meet the needs of the most demanding sound reinforcement environments, while offering the simplicity of straightforward controls.

The sliders of the 1215 are 45mm center-detent with two selectable boost/cut ranges for precise gain adjustments. The unit features high-pass filters with bypass, active balanced input and output connections, chassis/signal ground-lift capabilities for quick hum isolation and an internal power supply. Multiple input and output configurations are provided for ease of use. The XLR and 1/4″ TRS connectors use active balanced, low-noise circuitry, with the addition of barrier strips.

The 1215 was precision engineered to provide years of maintenance-free operation in any application. The magnetically isolated transformer, RF-filtered inputs and outputs, and power-off hard-wire relay bypass with two second power up delay, ensures compatibility with all types of installations.

Features

Dual-channel 15-band 2/3 octave graphic equalizer
Switchable Boost/Cut range between ±6 dB and ±15 dB
45mm center-detent sliders
Fixed high-pass filters
Variable input level controls
Active balanced input and output connections
RF-filtered inputs and outputs
Chassis/signal ground-lift capability


Specifications


Number of Channels 2

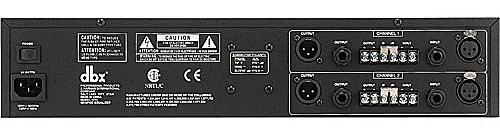

Inputs 2 x XLR, 2 x 1/4″ TRS, Barrier Strip
Output 2 x XLR, 2 x 1/4″ TRS, Barrier Strip
Maximum Input Level +21 dBu
Frequency Bands 15 x 2, ISO spacing
Bandwidth 2/3 Octave
Range (Boost/Cut) ±6 dB or ±15 dB Selectable
Maximum Output Level +21 dBu
Frequency Response 10 Hz to 50 kHz
Dynamic Range 115 dB
Noise -97 dBu
Dimensions 2 RU, 7 15/16″ Deep
Specialties Power-Off Hardwire Relay Bypass with 2-Second Power-Up Delay
Packaging Info
Package Weight 11.68 lb
Box Dimensions (LxWxH) 22.4 x 11.4 x 7.5″





Additional information
Brand

DXB Professional
