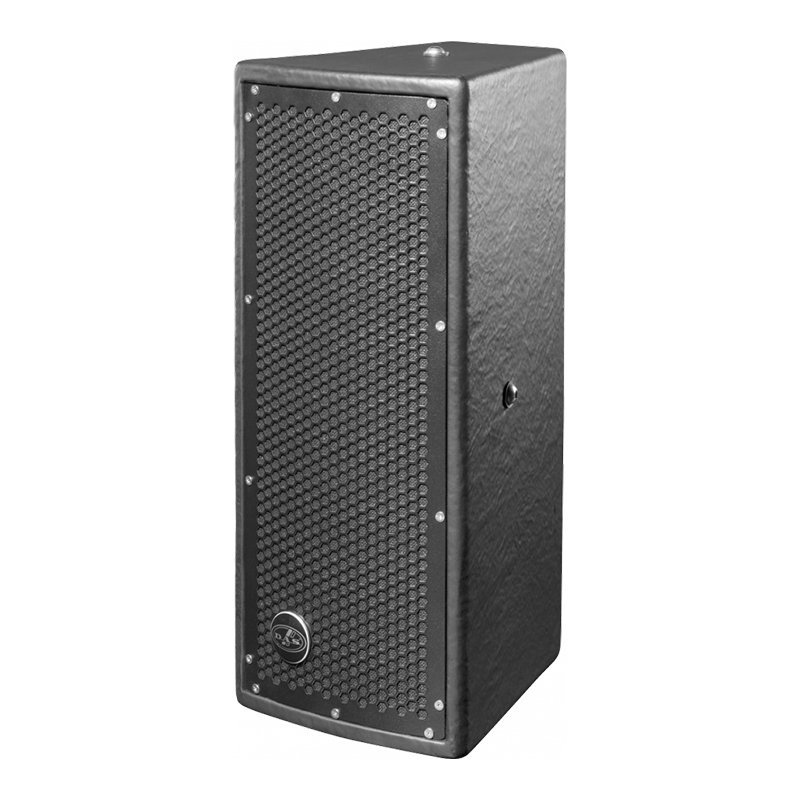

The WR-8826-DX employs twin 6B woofers for low frequency reproduction. A 1” annular diaphragm compression driver provides brilliant highs. The birch plywood cabinet construction offers an ultra-compact design which is available in black, white or military grey depending on the finish.
FEATURES
- EN54-24 certified for use in voice alarm systems
- 2-way system for outdoor installation
- DX finish (Fiberglass) for direct exposure
- IP56 ingress protection rating
- Twin 6″ loudspeaker
- 1″annular diaphragm driver
- Stainless steel threaded fixing points for wall mounts
APPLICATIONS
- Professional installation systems
- Houses of worship
- Auditoriums/Theaters
- Theme parks
- Outdoor Applications
SPECIFICATIONS
Performance
- Frequency Range (–10 dB): 70 Hz – 22 kHz
- Nominal Impedance: 16 ohms
- RMS Power Handling: 200 W
- Peak Power Handling: 800 W
- Sensitivity (1W/1m): 93 dB SPL
- Maximum SPL (1 m): 122 dB
- Recommended Amplifiers: INTEGRAL-A402, A404, A1002, A1004, A1602, A1604, MA1004, MA1604
- Recommended Processors: INTEGRAL-M88, MA1604, MA1004
Enclosure & Build
- Construction: Birch Plywood
- Geometry: Trapezoidal
- Finish: Fiberglass
- Color Options: Black, White, Military Grey
- IP Rating: IP56 (suitable for outdoor use)
- Rigging: M10 Rigging Points
- Dimensions (H x W x D): 550 x 230 x 270 mm (21.7 x 9.1 x 10.6 in)
- Net Weight: 11.0 kg (24.5 lb)
Components
- LF Drivers: 2 x 6B
- HF Driver: M-1
- Horn/Waveguide: BC-88

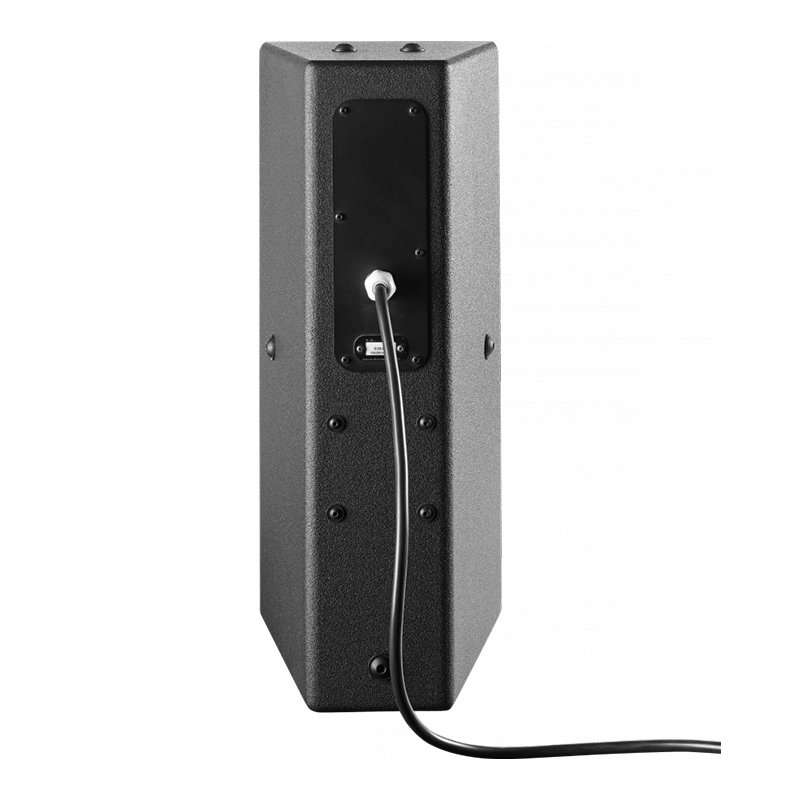

Connectors
- Audio Input: Covered Barrier Strip Terminals
- Audio Output: Covered Barrier Strip Terminals
Shipping
- Carton Dimensions (H x W x D): 608 x 274 x 345 mm (23.9 x 10.8 x 13.6 in)
- Shipping Weight: 15.0 kg (33.0 lb)
